Remote System Configuration with Stratix & Stratix GX Devices

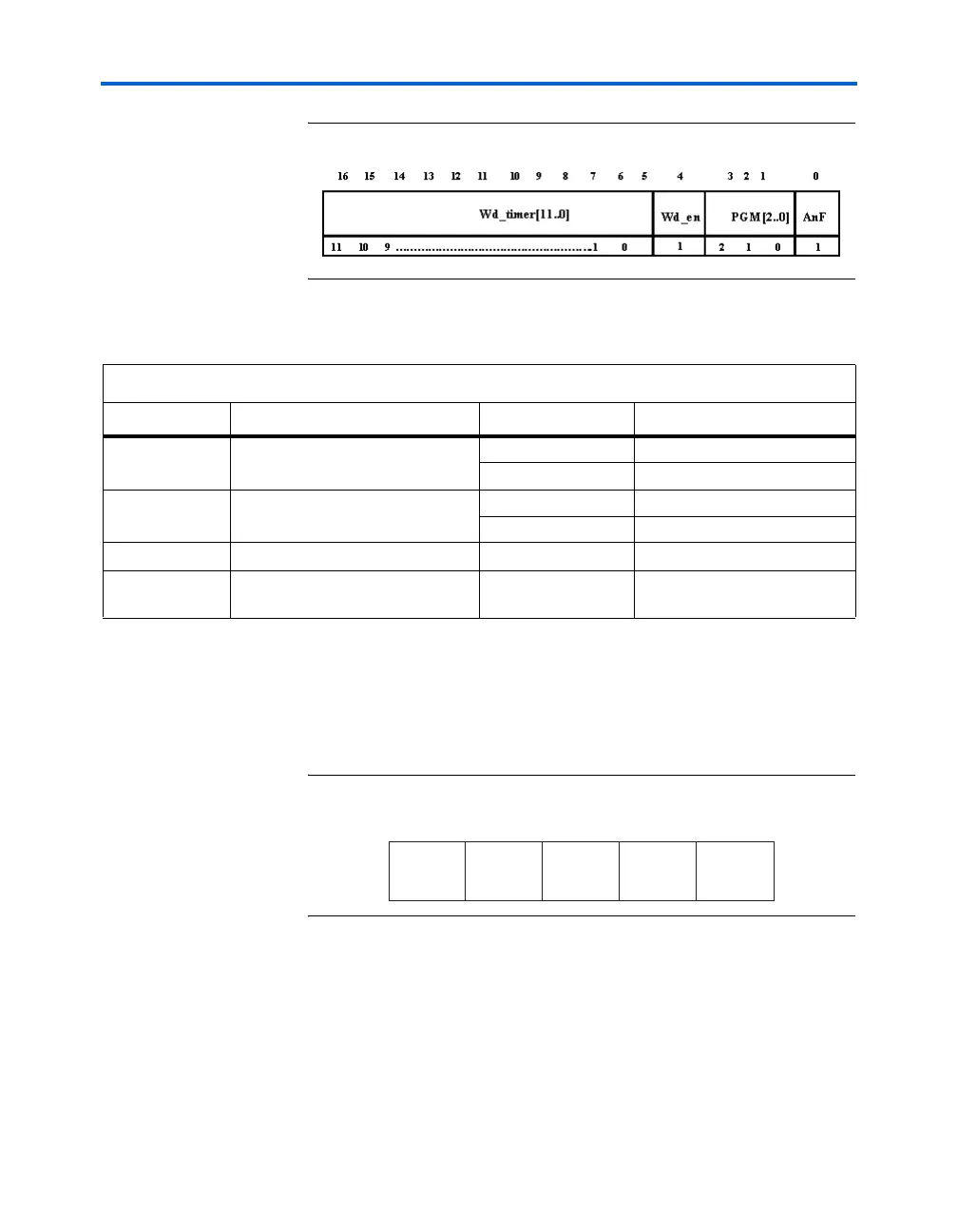

Figure 12–7. Remote System Configuration Control Register
Table 12–4 shows the content of the control register upon POR.
The status register specifies the reason why re-configuration has occurred
and determines if the re-configuration was due to a CRC error, nSTATUS
pulled low due to an error, the device core caused an error, nCONFIG was
reset, or the watchdog timer timed-out. Figure 12–8 and Table 12–5
specify the content of the status register.
Figure 12–8. Remote System Configuration Status Register
Table 12–4. Control Register Contents
Parameter Definition POR Reset Value Comment
AnF
Current configuration is factory or
applications
1 bit ‘1’ Applications
1 bit ‘0’ Factory
PGM[2..0]
Page mode selection 3 bits ‘001’ Local configuration
3 bits ‘000’ Remote configuration
Wd_en
User watchdog timer enable 1 bit ‘0’ –
Wd_timer
[11..0]
User watchdog timer time-out value 12 bits ‘0’ High order bits of 29 bit counter
Wd nCONFIG CORE nSTATUS CRC
43210
