Altera Corporation 12–39
September 2004 Stratix Device Handbook, Volume 2
Remote System Configuration with Stratix & Stratix GX Devices

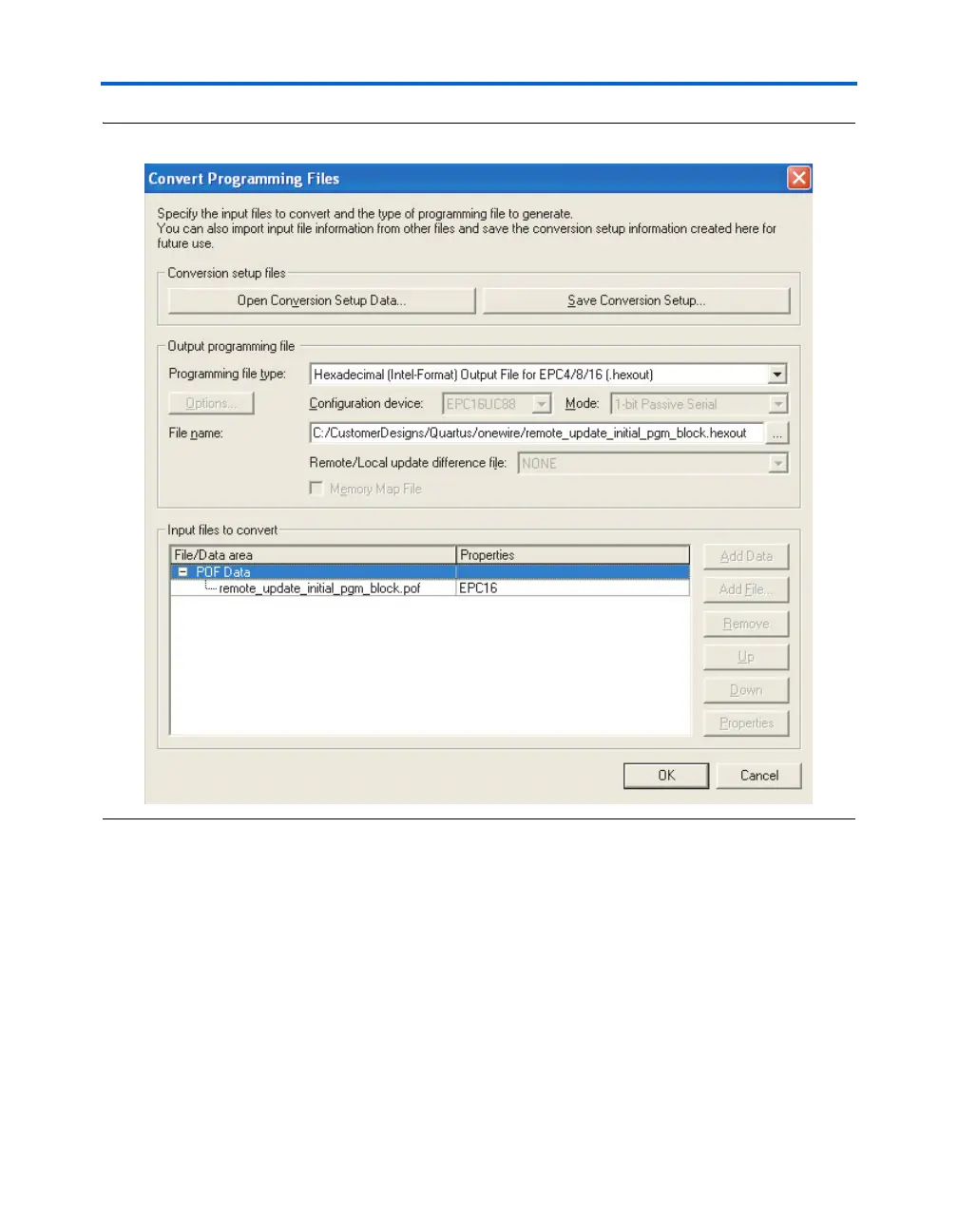

Figure 12–22. Converting POF Programming File to Intel HEX Format
Partial Programming File Generation
In remote update mode, the Quartus II CPF utility allows an existing
application configuration page to be replaced with new data, or a new
application configuration to be added. Partial programming files are
generated to perform such configuration data updates.
In order to generate a partial programming file, you have to input the
initial POF and new configuration data (SOF) to the Quartus II CPF
utility. In addition, you have to specify the addressing mode (auto or
manual) that was used during initial POF creation. And if block
addressing was used, you should specify the block start and end
