2.1 Overview Sub-Racks
11
1
44
4

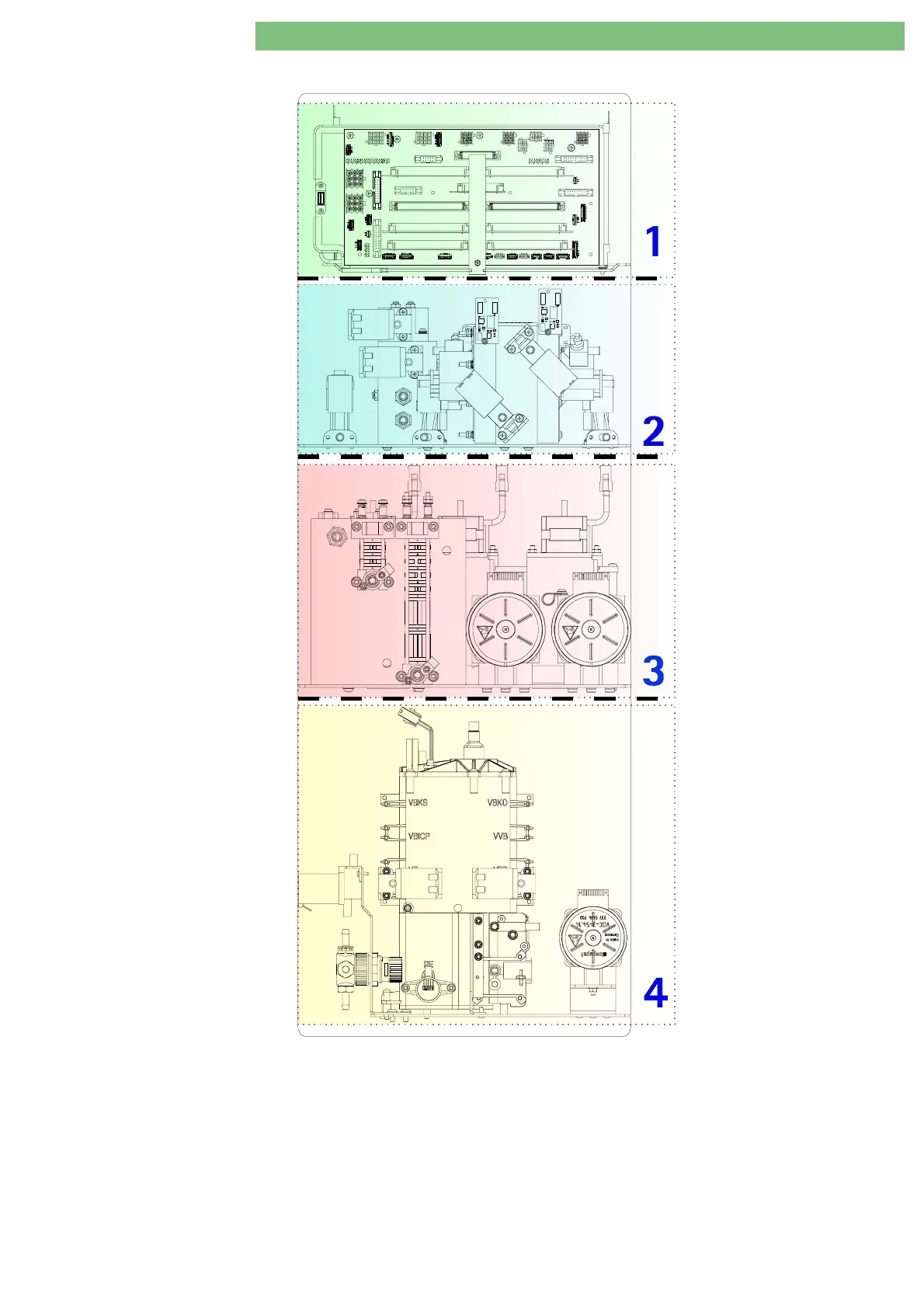

Fig. : Overview Sub-Racks Rear View Dialog+
2.1.1 Legend Overview Sub-Racks
1
Top Level Sub-Rack
3
DF Sub-Rack
2
UF Sub-Rack
4
Water Sub-Rack
