2.9 UF Sub-Rack
VDA
VABK1
VDABK2
VABK2
VDEBK1
VEBK2
VLA
VBP
VEBK1
VDEBK2
LA
MSBK2
RVFPA
DDE
MSBKB1/2
VLA
VBP
LA
VDA
VEBK1
VABK1
VDEBK1
VDEBK2
VABK2
VDABK1
RVFPA
DDE
MSBKB1/2

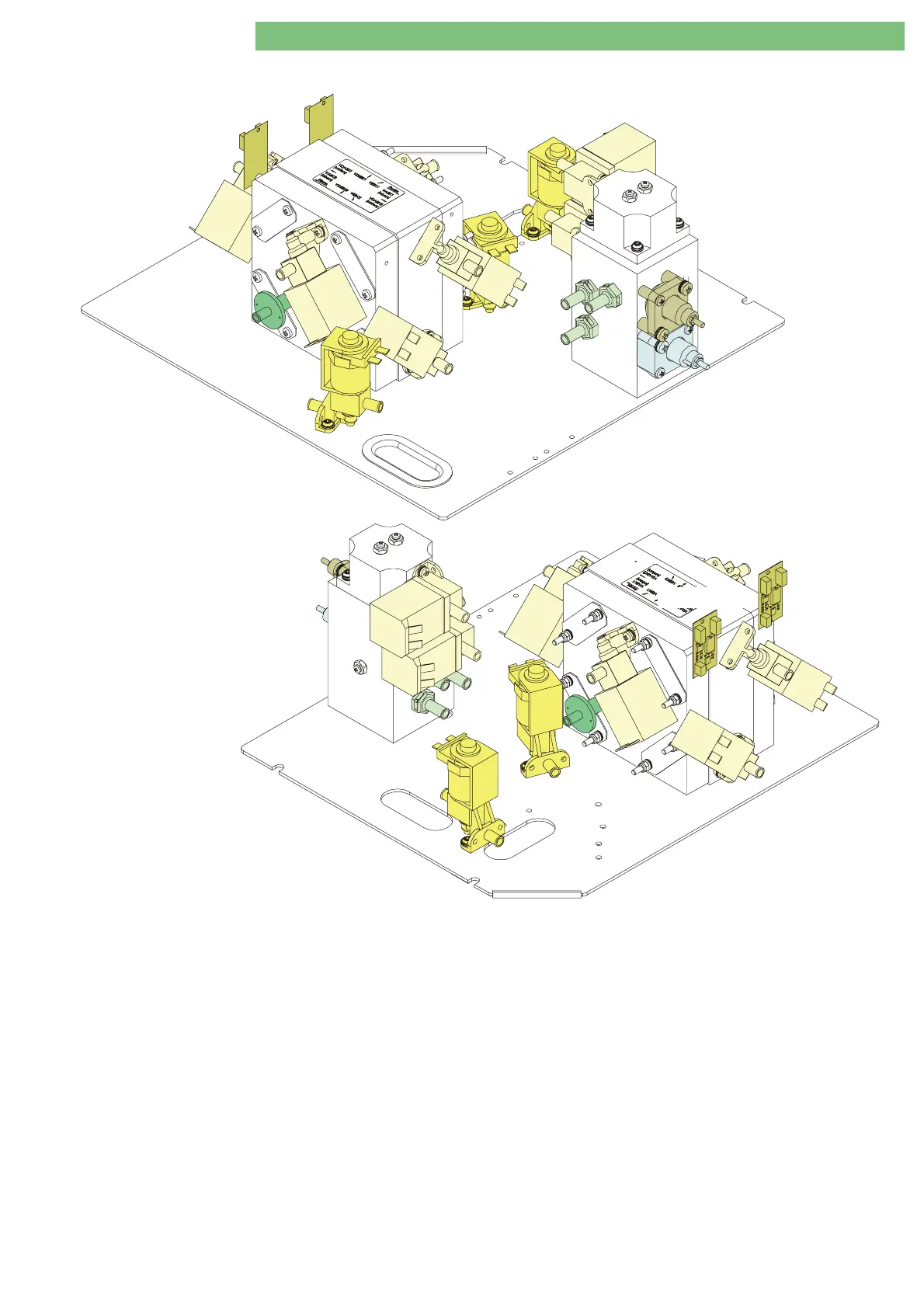

Fig. : UF Sub-Rack
2.9.1 Legend UF Sub-Rack
Balance Chamber BK1/2
BK1/2BK1/2
BK1/2
Bypass Valve VBP
VBPVBP
VBP
Throttle Dialyser Inlet DDE
DDEDDE
DDE
Air Separator LA
LALA
LA
Membrane Position Sensor Balance Chamber Board MSBKB1/2
MSBKB1/2MSBKB1/2
MSBKB1/2
Membrane Position Sensor Balance Chamber MSBK1/2
MSBK1/2MSBK1/2
MSBK1/2
Non-Return Valve Outlet Flow Pump RVFPA
RVFPARVFPA
RVFPA
Outlet Balance Chamber Valve VABK1
VABK1VABK1
VABK1
Outlet Balance Chamber Valve VABK2
VABK2VABK2
VABK2
Outlet Dialyser Balance Chamber Valve VDABK1
VDABK1VDABK1
VDABK1
Outlet Dialyser Balance Chamber Valve VDABK2
VDABK2VDABK2
VDABK2
Inlet Dialyser Balance Chamber Valve VDEBK1
VDEBK1VDEBK1
VDEBK1
Inlet Dialyser Balance Chamber Valve VDEBK2
VDEBK2VDEBK2
VDEBK2
Inlet Balance Chamber Valve VEBK1
VEBK1VEBK1
VEBK1
Inlet Balance Chamber Valve VEBK2
VEBK2VEBK2
VEBK2
Air Separator Valve VLA
VLAVLA
VLA
