4. TSM Service Program 1/2010 4 - 91
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.16 Test 1.16 Pressure Water Part

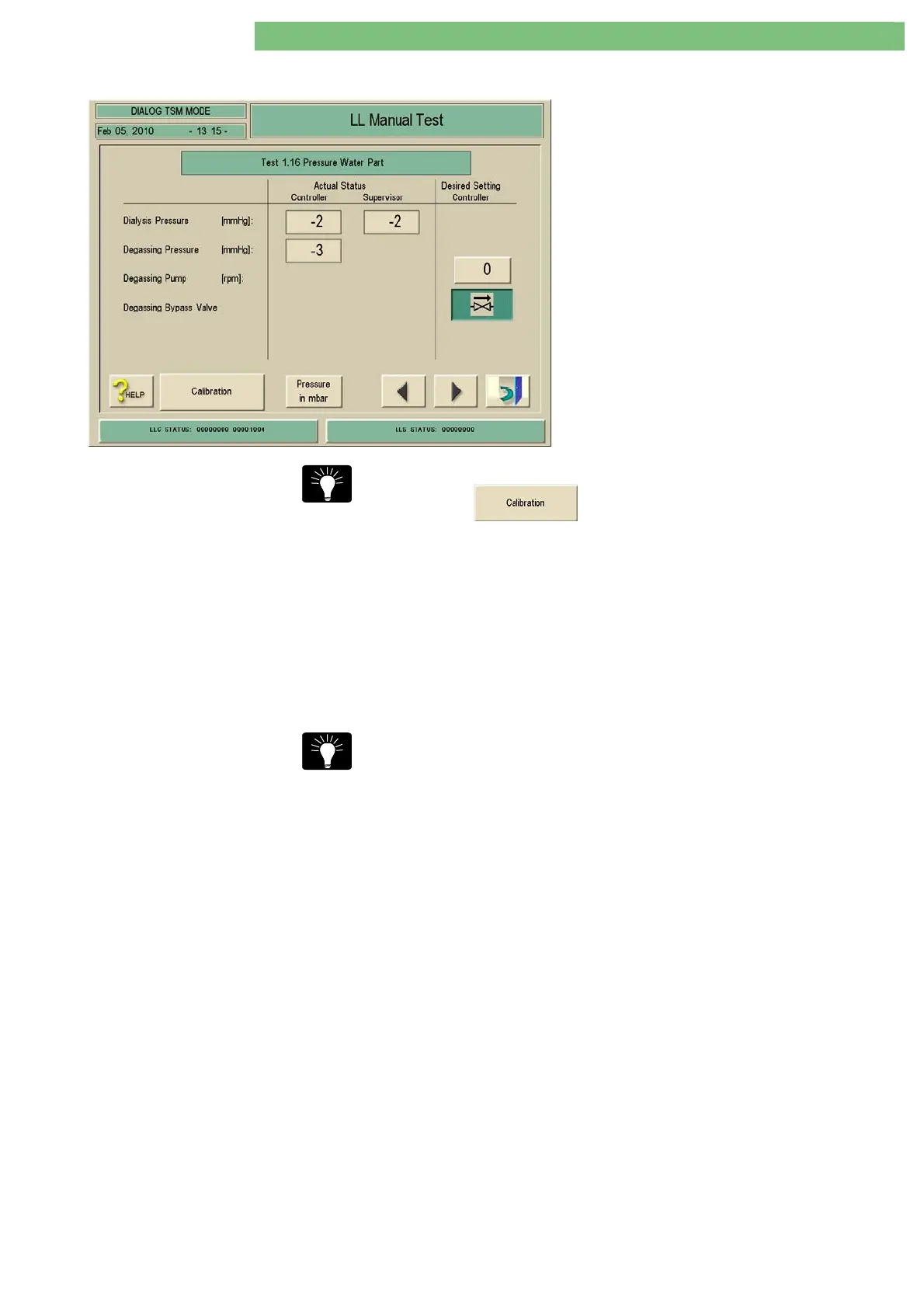

1. Activate the Pressure Water Part menu with
the Pressure Water Part key in the LL Manual
Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
You can skip directly to the calibration of the pressure sensors PE and PDA by
pressing the
key.
The degassing pump EP can be set. The degassing bypass valve VEB can be
opened/closed.
The pressure at the degassing pressure sensor PE can be set with the degassing
pump EP and the degassing bypass valve VEB.
The pressure at the outlet dialysate pressure sensor PDA is set manually with a
syringe at the dialyser couplings.
Pressure in mbar
The pressure can be displayed in mmHg or in mbar, depending on selection.
Conversion Factor mmHg to mbar
Conversion Factor = 1.3332
Example:
-100 mmHg approx. –133 mbar
–400 mmHg approx. –533 mbar
To Next Page
