B. Braun Dialog+ - Component Layout SMPS-MC

2. Technical System Description 1/2010 2 - 44
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 2_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
2.22.3 Component Layout SMPS-MC
+
-
C114
PE1LH1 LH2 L N PE PE
N1
X1.3
X1.1
X1.8
X1.7
X1.2
X1.6
X1.5
X1.4
F6
F1
F2
F5B
F5A
F401 F303 F301 F302 F304 F601
F602 F402 F403
P12
P10
P4
P5
P14
P11
XP3.1
XP3.2
X903
X100
H900
K4
K3
F600
P2
+
-
C115
GNDAKKU
+24VAKKU
+
-
H104
Fan
H401
H303
H301
H300
H302 H304
H601 H602
H402
H600H403
LED flashes with Microc approx. 2 Hz
ontroller works correctly
LED flashes Microcontroller has detected with 5 .. 10 Hz an error LED off Microcontroller does not work
LED H900 Operating Status
D900
C19
C18
Goldcap
1F Capacitor
LED Operating
Status
F1 T6.25A 6.3x32 (X1.1: L) F2 T6.25A 6.3x32 (X1.2: N) F5A 110/120V: F12A 6.3x32 (X1.6: HZG1-L) 230V: T6.25A 6.3x32 (X1.6: HZG1-L) F5B 110/120V: F12A 6.3x32 (X1.7: HZG2-L) 230V: T6.25A 6.3x32 (X1.7: HZG2-L) F6 110/120V: F20A 6.3x32 (X1.5: HZG-N) 230V: F12A 6.3x32 (X1.5: HZG-N) F301 T3.15A TR5 (+5VD1) F302 T5.0A TR5 (+5VD2) F303 T3.15A TR5 (+5VD3) F304 T3.15A TR5 (+5VD4) F401 T3.15A TR5 (+12VD1) F402 T5.00A TR5 (+12VD2) F403 T1.25A TR5 (+12VA) F600 M10.00A 6.3x32 (+24VL) F601 T3.15A TR5 (+24VGB) F602 T3.15A TR5 (+24VGD) X101 Service Jumper X103 /EN_EXT X104 Charge Current Battery Option
(left:100%/default: right:50%)
X101
X104
Battery
Voltages
Motherboard
Options
Voltages
+5 VD2
+12 VD1/2
+12 VA
Voltages
+24 VL
+24 VGB
+24 VGD
Signals
Power Supply Control
from Low Level to
Digital Board
(Controller/
Supervisor)
: P6 : P5 : P10 : P8 : P5 : P5 : P5 : P4 : P4 : P4
Service
Jumper
P9
P7 P8
P6
X103
EXT_ON
/EN_EXT
Charge Current
Battery
Option ABPM
Option DSI
Mains Switch/Fan

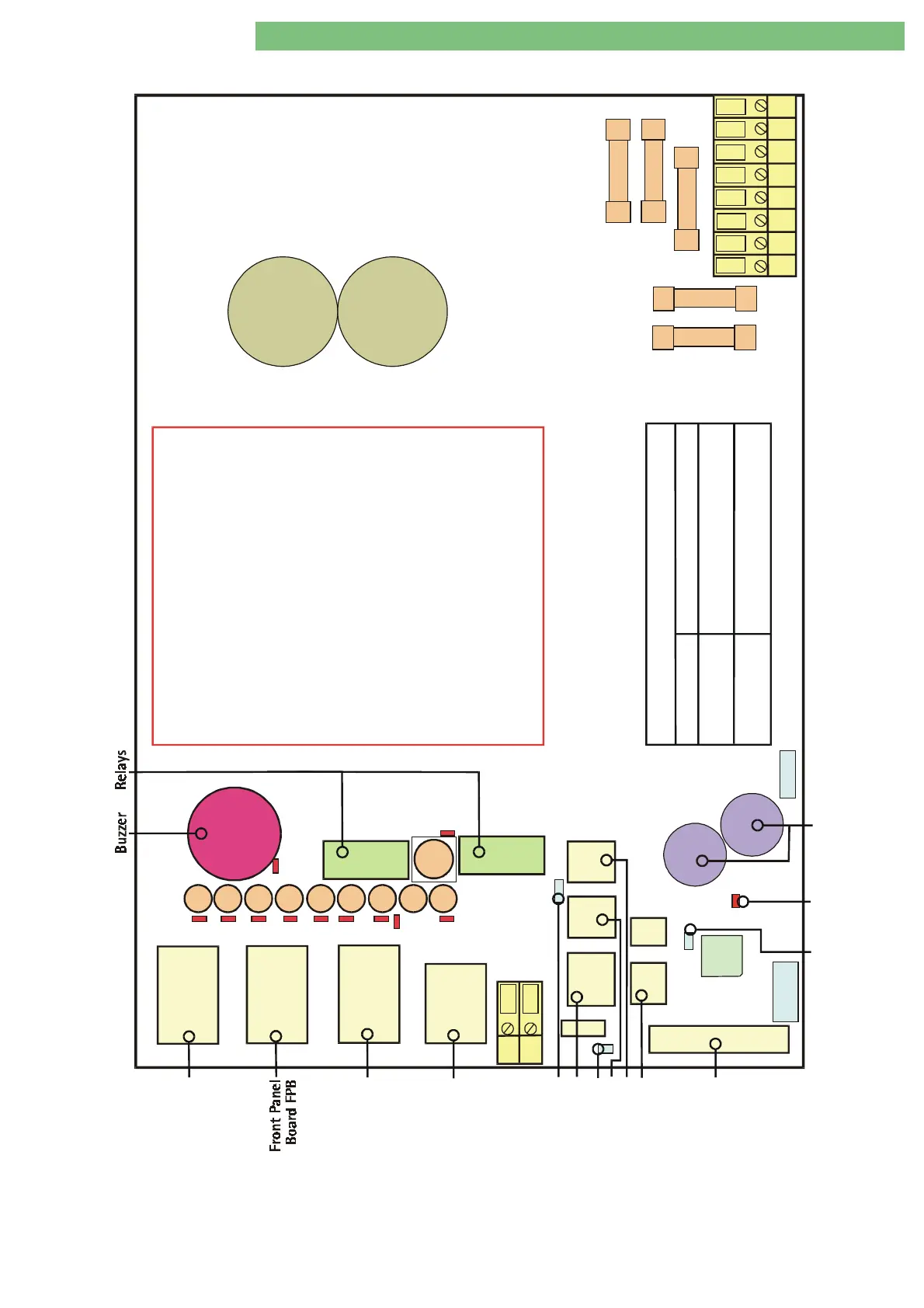

Fig. : Layout SMPS-MC
