B. Braun Dialog+ - Rear Door

7. Spare Parts List 1/2010 7 - 22
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
SMPS-MC
12
3
4
3

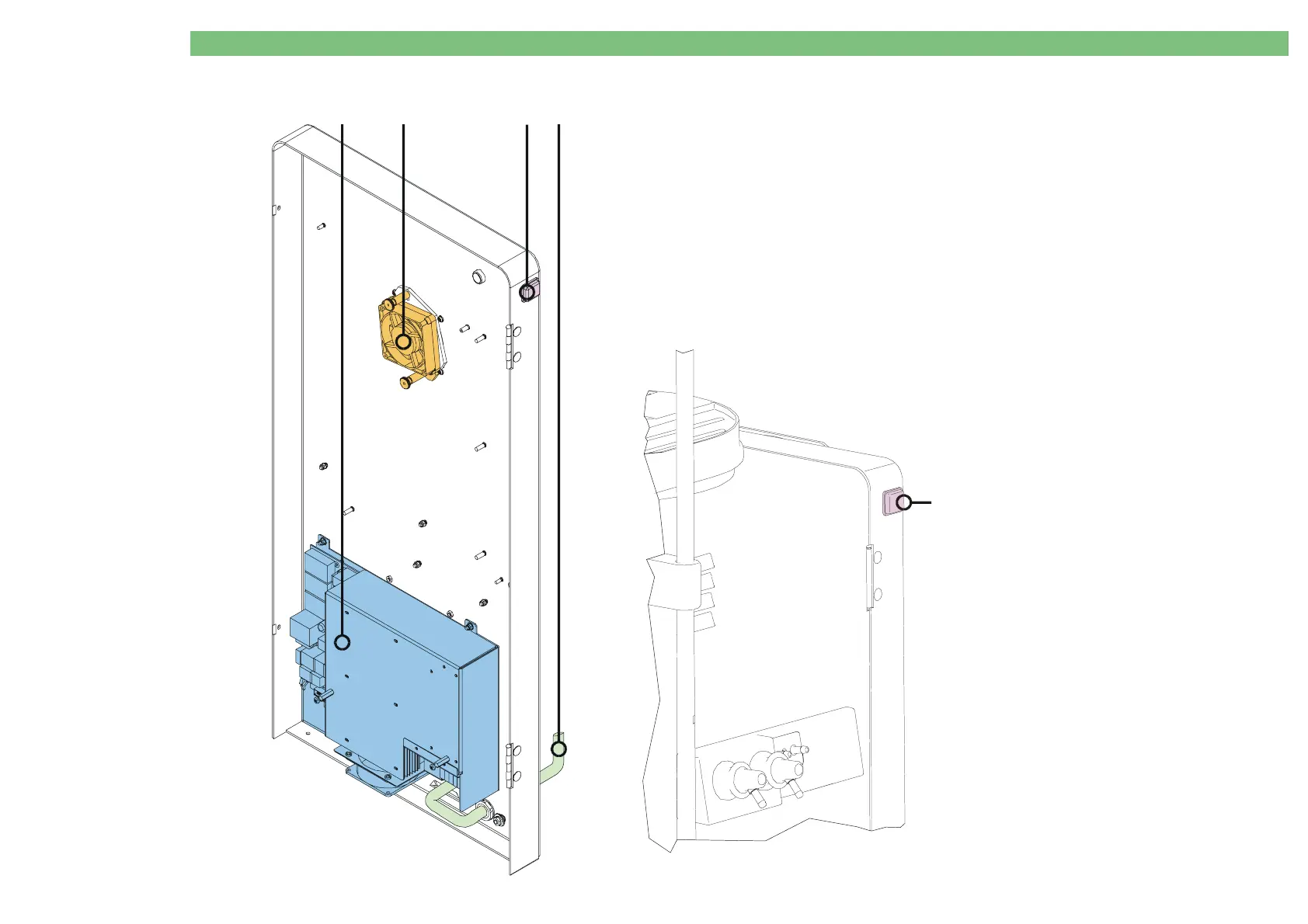

7.7 Rear Door
1
34560220 1 Switch mode power supply microcontroller
SMPS-MC, 110/240V, version 5
2
34561307 1 Fan 92 x 92 mm with connector
2
34570284 5 Dust filter
3
3451059A 1 Mains switch
3
34770003 5 Protection cap for mains switch
4
- - Mains cord
see separate figure
(paragraph 7.7.1)
