2.2 Top Level Sub-Rack
Motherboard
Power Board
Valves
Power Board Motors
HDF BoardOnline
Analog Board
Basic Board
USB:
Service
SW
USB:
SW
Digital Board
1
2
S1
JP1
JP2
7
89
3
4
6
5

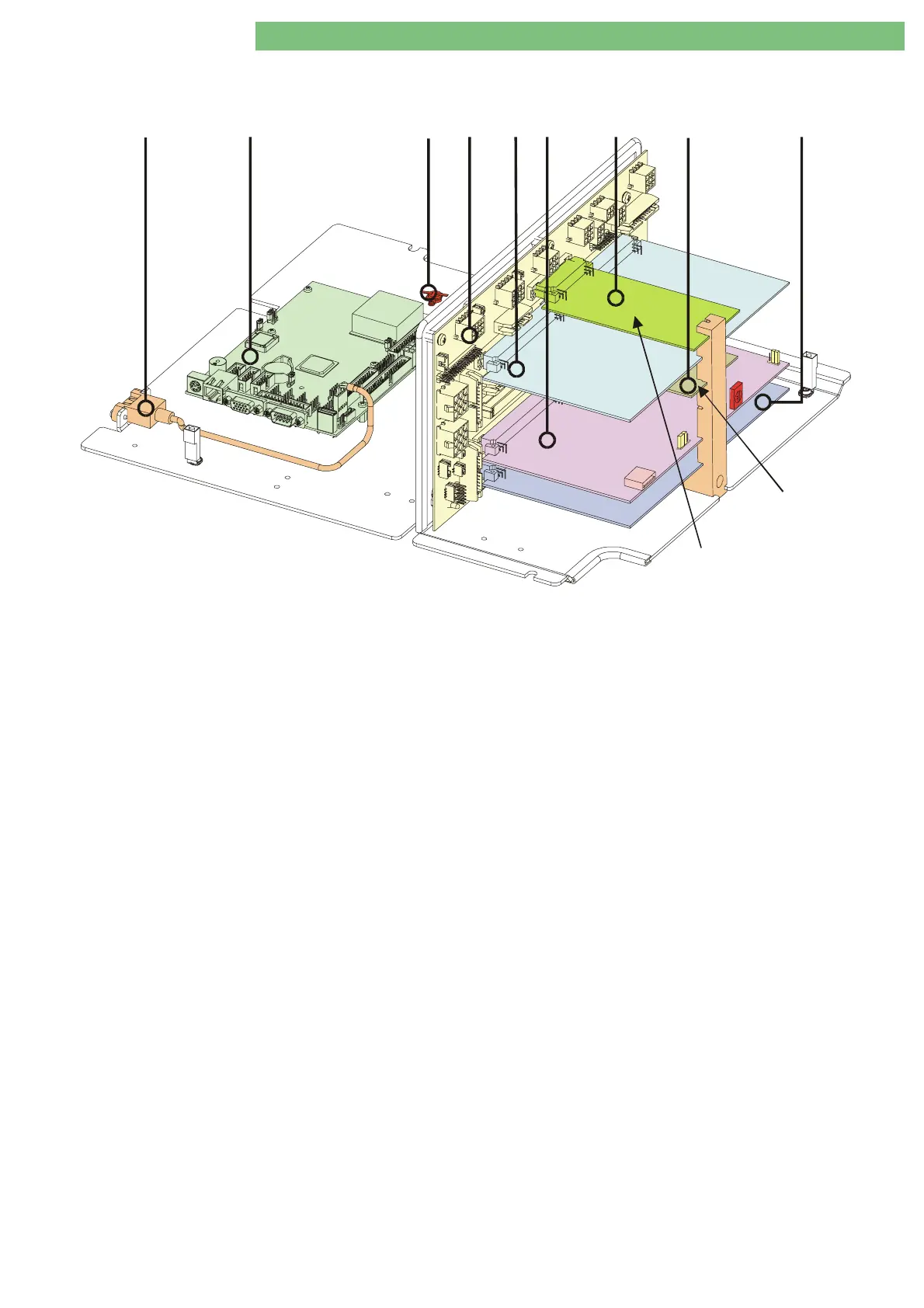

Fig. : Top Level Sub-Rack
2.2.1 Legend Top Level Sub-Rack
1
11
1 USB Port:
Service (FSU)/Software Installation TLC
2
22
2 LX800 Motherboard
3
33
3 Temperature Switch TS (closes at 50
±
3
o
C, opens at 35
±
6
o
C)
4
44
4 Basis Board BB
5
55
5 Power Board Valves PBV
6
66
6 Digital Board DB (LLD):
USB Port: Software Installation LLC/LLS; Service-Switch S1; Jumper JP1/JP2
7
77
7 HDF Online Board HOB
8
88
8 Power Board Motor PBM
9
99
9 Analog Board AB (LLA)
