4.8.2.23 Test 1.23 BIC Cartridge Valves and Coupling Detectors

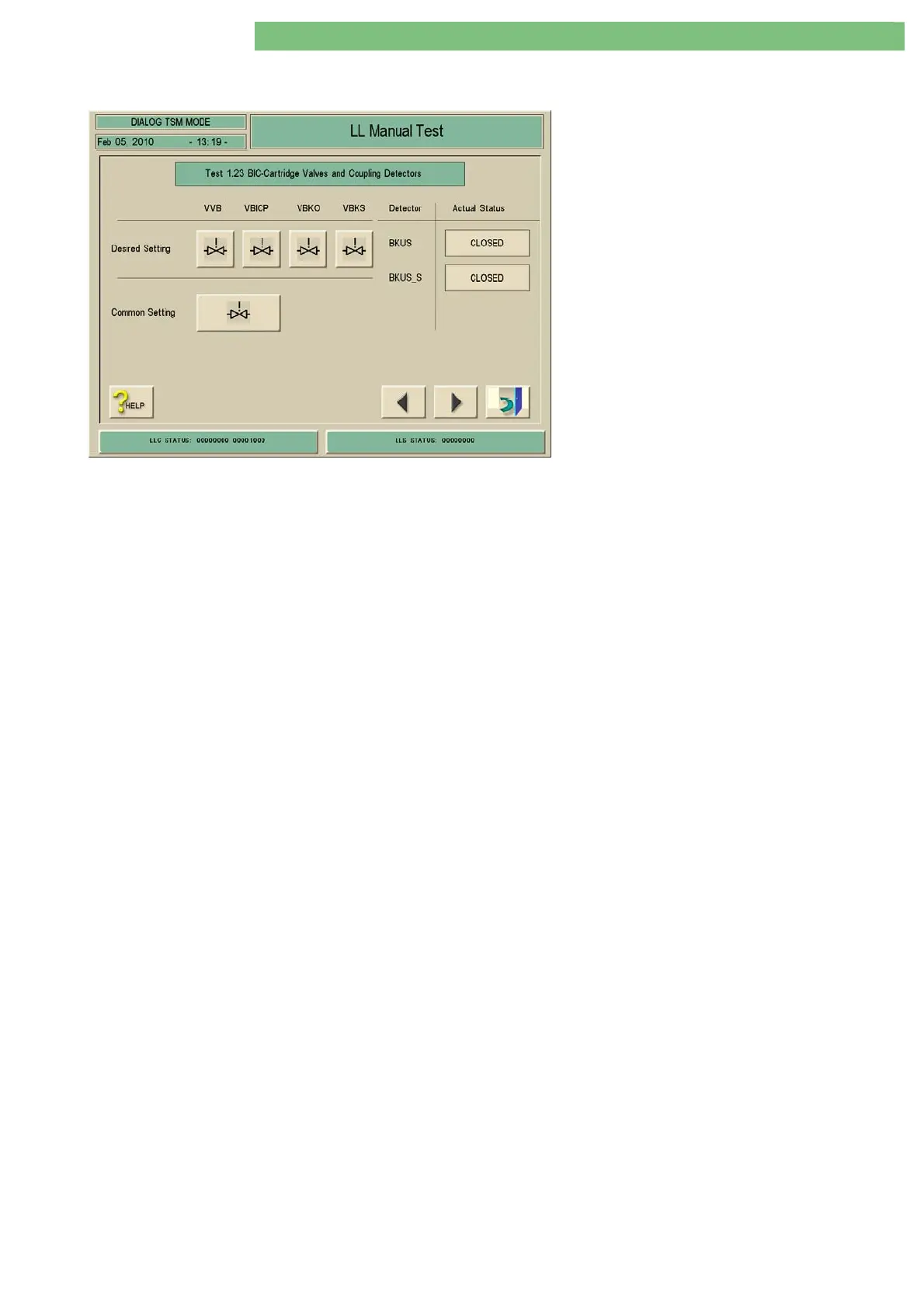

1. Activate the BIC Cartridge Valves and Coupling
Detectors menu with the BIC Cartridge Valves
and Coupling Detectors key in the LL Manual
Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
Valves VVB, VBICP, VBKO, VBKS The valves VVB, VBICP, VBKO and VBKS can be switched either separately or
together.
Detectors BKUS, BKUS_S
The status of the reed sensor (OPEN/CLOSED) is displayed.
