7. Spare Parts List 1/2010 7 - 60
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
VBPVDA
V
E
B
K
1
V
E
B
K
2
VABK1
VDABK1
VDABK2
VABK2
VDEBK1
VDEBK2
LA
BK1/2
VLA
VBP
RVFPA DDE
12
2
3
2
4
3
VBE
VSB
VSAA
VSAE

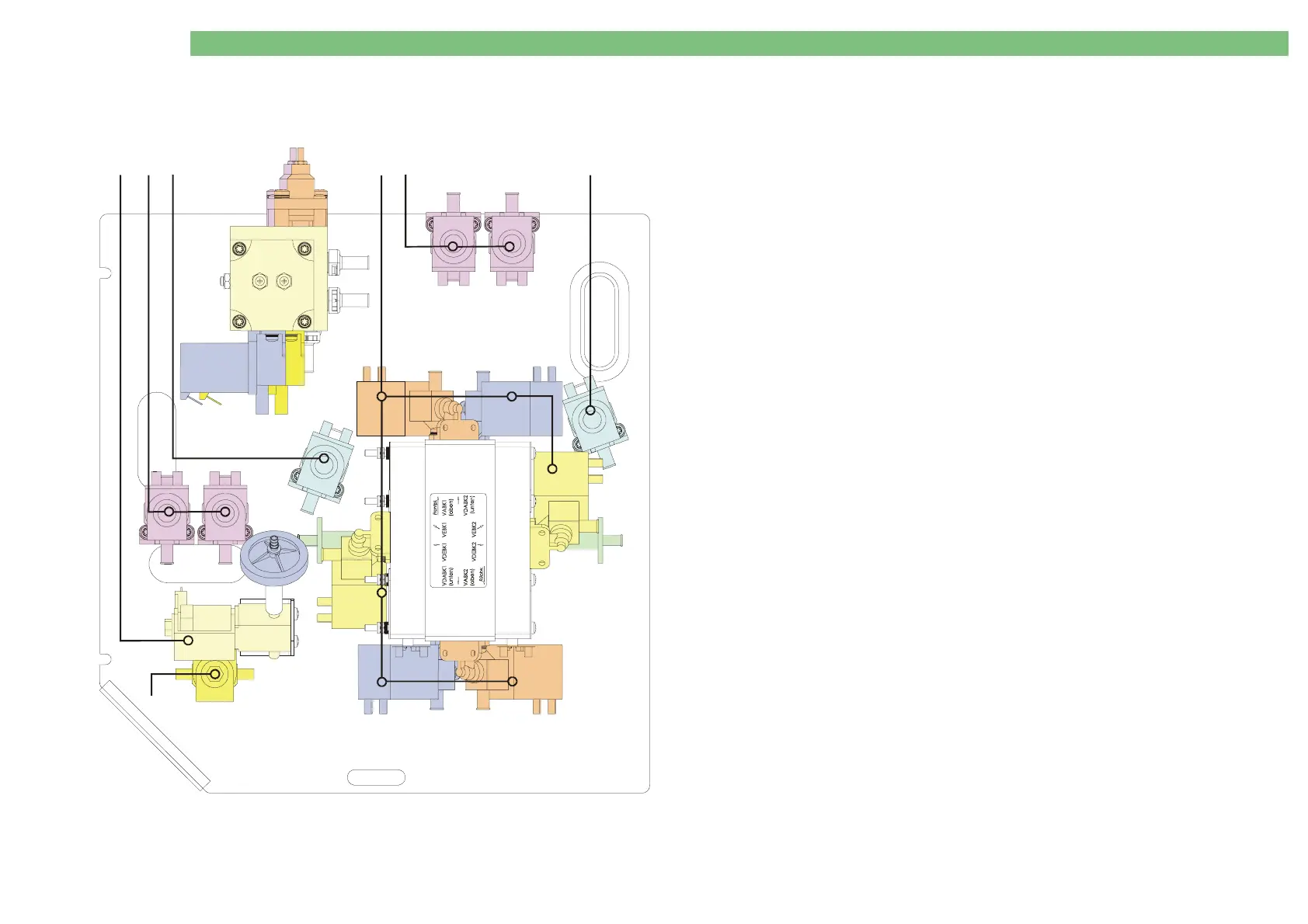

7.18.2 UF Sub-Rack HDF Online
1
- - Valve block
see separate figure
2
34560289 1 Solenoid valve 2/2 way
connector/connector (DPP)
3
3451906C 1 Solenoid valve 2/2 way
manuf. AKM only, connector/connector
4
3451902C 1 Solenoid valve 2/2 way
manuf. AKM only, connector/flange
4
34770852 5 O-ring 11.1 x 1.6
