4. TSM Service Program 1/2010 4 - 140
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.3.10 Calibration Blood Leak Detector
You can check and calibrate the blood leak detector BL. The rinsing block must
have an even temperature for the calibration. If both dialyser couplings are
connected to the rinsing bridge the flow pumps FPA/FPE work in main flow. If
only one coupling is connected FPE is stopped. The reference solution can be
drawn in by the red coupling via FPA.
VBP
FBK2
LAFS
VLA
VDA
LA
BL
PDA
FPA
8
VDETSDE
T
SB2
SB1
FVD
SBS2
SBS1
LVD
VD
M
blue
red

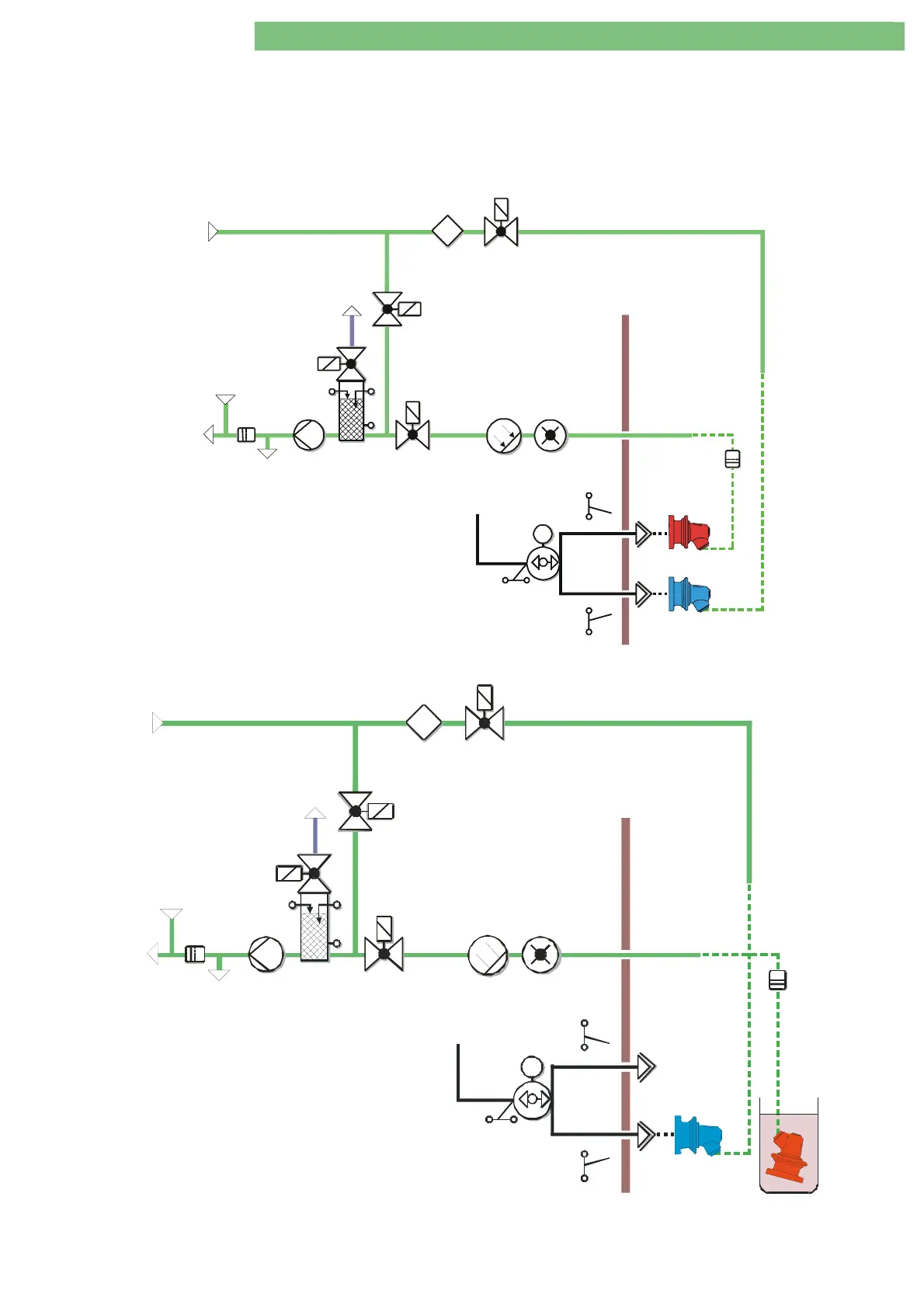

Fig.: Rinsing Bridge with Blood Leak Detector BL
VBP
FBK2
LAFS
VLA
VDA
LA
BL
PDA
FPA
8
VDE
TSDE
T
SB2
SB1
FVD
SBS2
SBS1
LVD
VD
M
blue
red
Fig.: Rinsing Bridge with Red Coupling Immerged in Reference Solution for BL Calibration
