4.8.3.26 Arterial Tubing Clamp SAKA/Venous Tubing
Clamp Currentless Closed SAKV-SG
SAKA You can check the soft stoppers A on the V-stopper/stopper B of the
arterial tubing clamp SAKA.
• Soft stoppers art. no. 34570675
1. Open front door.
2. Check the soft stoppers A on the V-stopper/stopper B.
Replace if soft stoppers show any damages (tears/ruptures/
brittleness).
SAKV-SG You can check the o-rings C on the V-stopper/stopper D of the
venous tubing clamp currentless closed SAKV-SG.
• O-ring 7 x 1.5 art. no. 34570624
3. Check the o-rings C on the V-stopper/stopper D
Replace if o-rings show any damages (tears/ruptures/
brittleness).
4. Close front door.

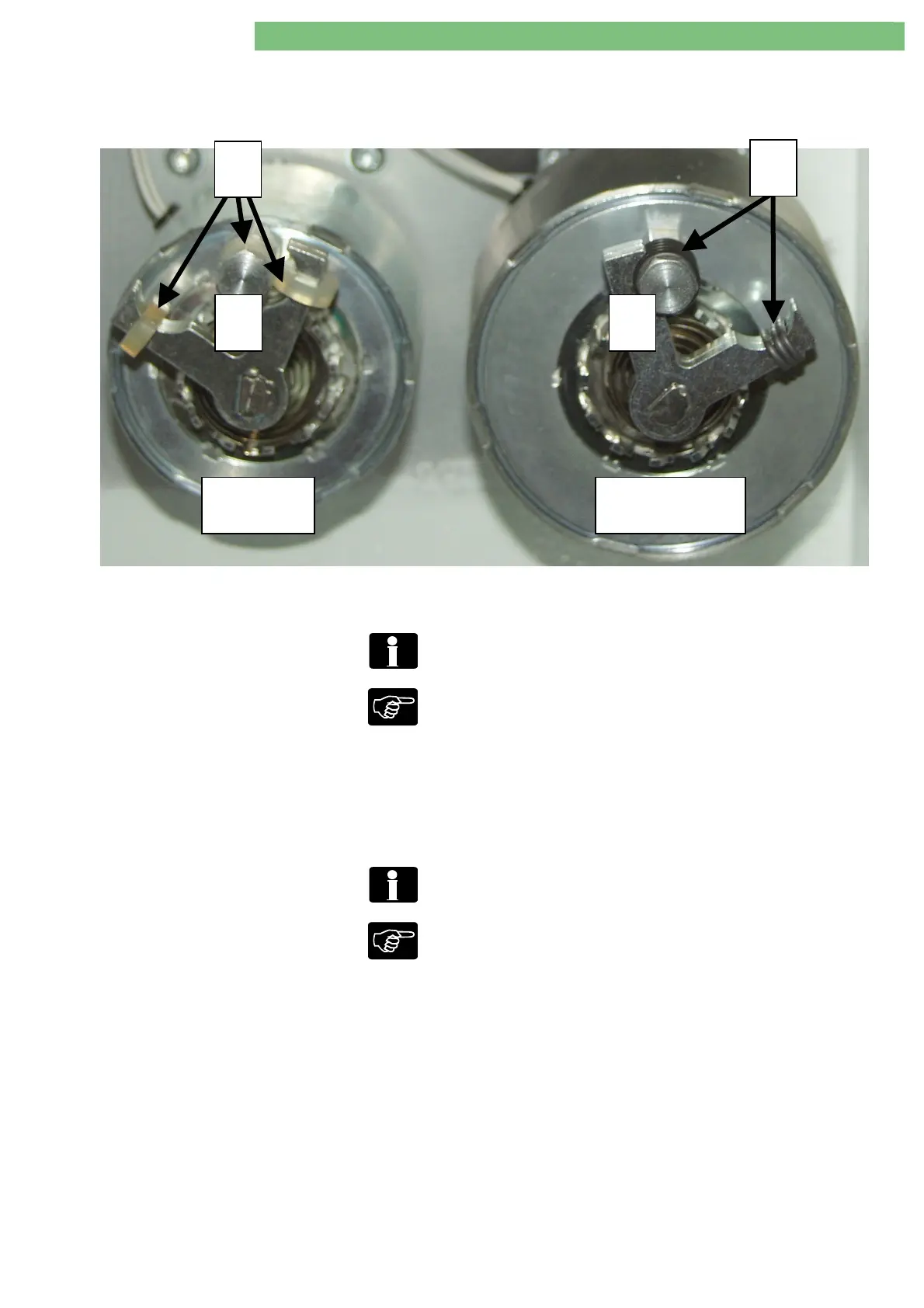

SAKA SAKV-SG
B D
A
C
