4. TSM Service Program 1/2010 4 - 85
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.11 Test 1.11 Dialysis Temperature

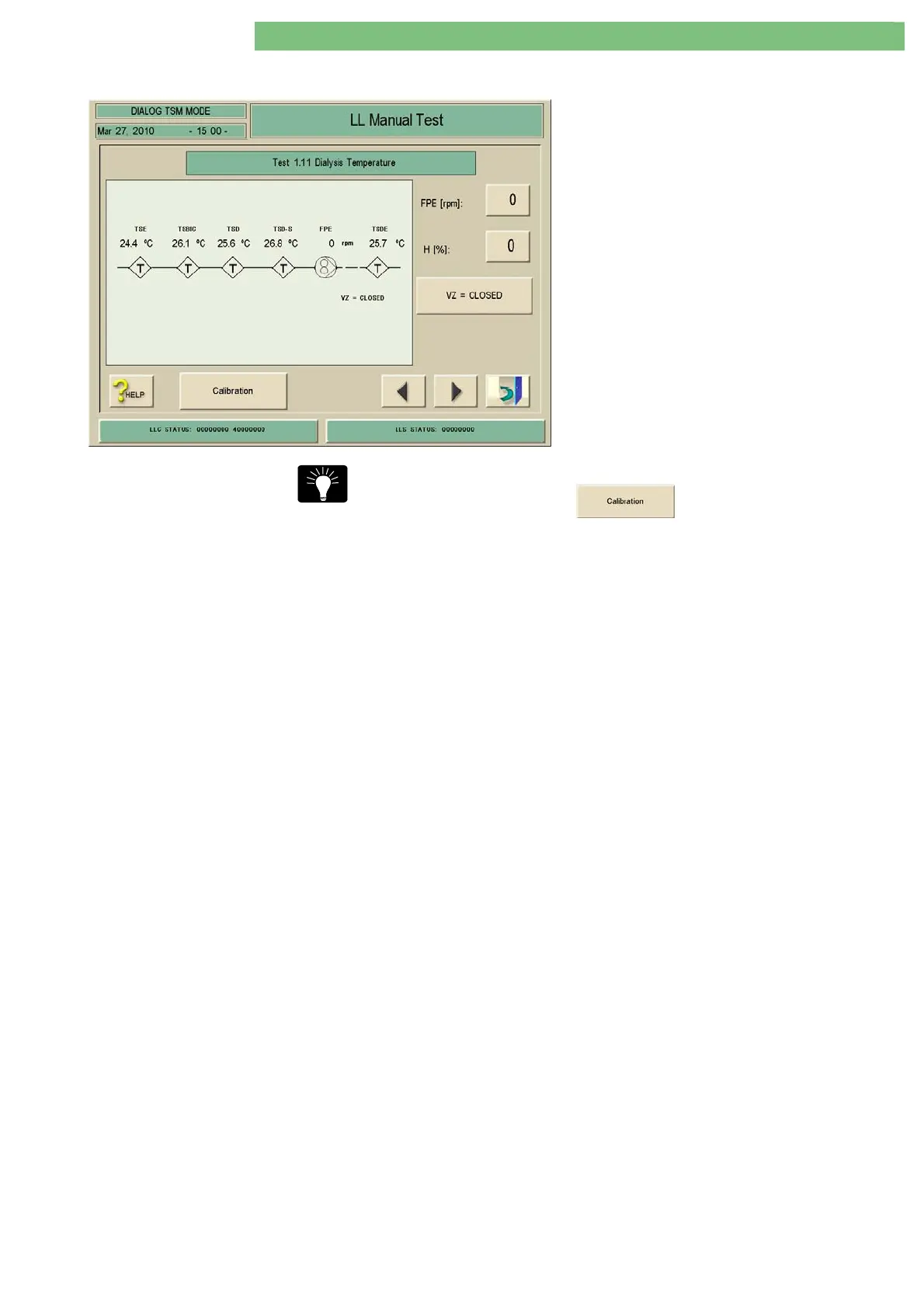

1. Activate the Dialysis Temperature menu with
the Dialysis Temperature key in the LL Manual
Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
You can skip directly to the calibration of the temperature sensors TSBIC, TSD,
TSD-S, TSDE by pressing the
key.
The dialysate is heated up with the set heater power H %.
The flow pumps FPE/FPA work with the set speed. The balance chambers are
opened and the machine works in main flow.
The temperature must be controlled by the heater to a stable set-point to test
the temperature sensors.
If you open the circulation valve VZ a closed flow circuit is achieved (via the
upline tank). Increase the speed [rpm] until the flow pump FPE has built up a
flow of 750 ml/min.
The measurement range is as follows:
TSE, TSD, TSBIC: 0 to 100
o
C
TSD-S: 30 to 55
o
C
TSDE: 30 to 55
o
C
