B. Braun Dialog+ - Balance Chamber

7. Spare Parts List 1/2010 7 - 17
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
VDA
VABK1
VDABK2
VABK2
VDEBK1
VEBK2
VLA
VBP
VEBK1
VDEBK2
LA
MSBK2
RVFPA
1
2
13 4
5
7
3
8
DDE
6
VEBK1
VABK1
VDEBK1
VDEBK2
VABK2
VDABK1
2
9
83 1
1

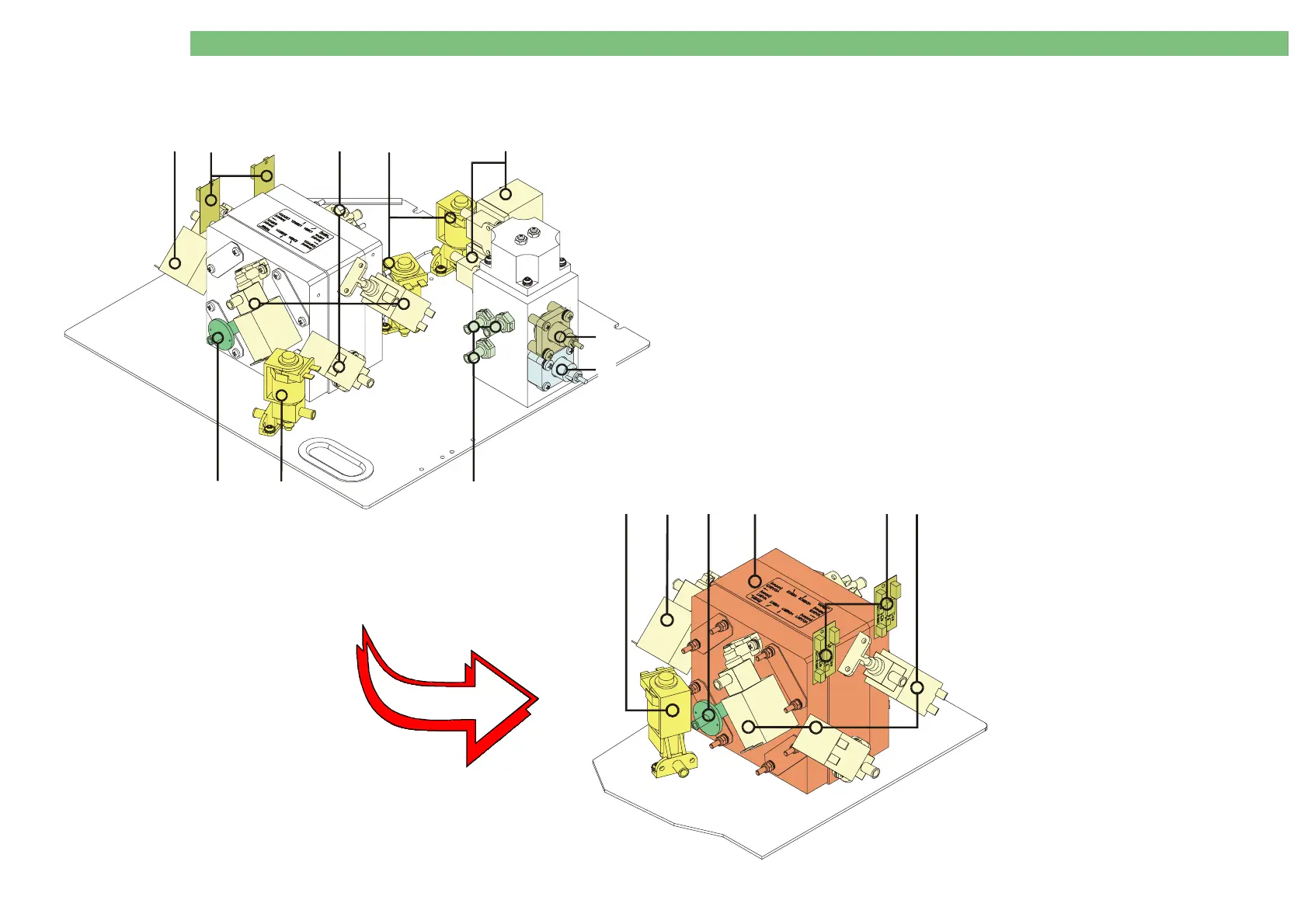

7.5.1 Balance Chamber 2
1
3451902C 1 Solenoid valve 2/2 way
manuf. AKM only, connector/flange
1
34770852 5 O-ring 11.1 x 1.6
2
3451665A 2 Membrane position sensor board
exchange as pair only
3
3451906C 1 Solenoid valve 2/2 way
manuf. AKM only, connector/connector
4
34560270 1 Solenoid valve 2/2 way
connector/flange (DPP)
5/6/7
---
see next page
8
3451909A 1 Coil
8
34770976 10 O-ring 15.6 x 1.78
9
3451897A 1 Repair kit balance
chamber
for complete replacement of both membranes, incl. all
o-rings/assembly parts (self-locking nuts, screws, springs
etc.)
9
3451615A 2 Membrane for balance chamber
-
34570195 20
Tubing clamp SNP-1.5
∅
7-8 mm
plastic
-
34570209 20
Tubing clamp SNP-4
∅
10-11 mm
plastic
