B. Braun Dialog+ - Test 1.30 SMPS-MC Self Tests

4. TSM Service Program 1/2010 4 - 108
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.30 Test 1.30 SMPS-MC Self Tests

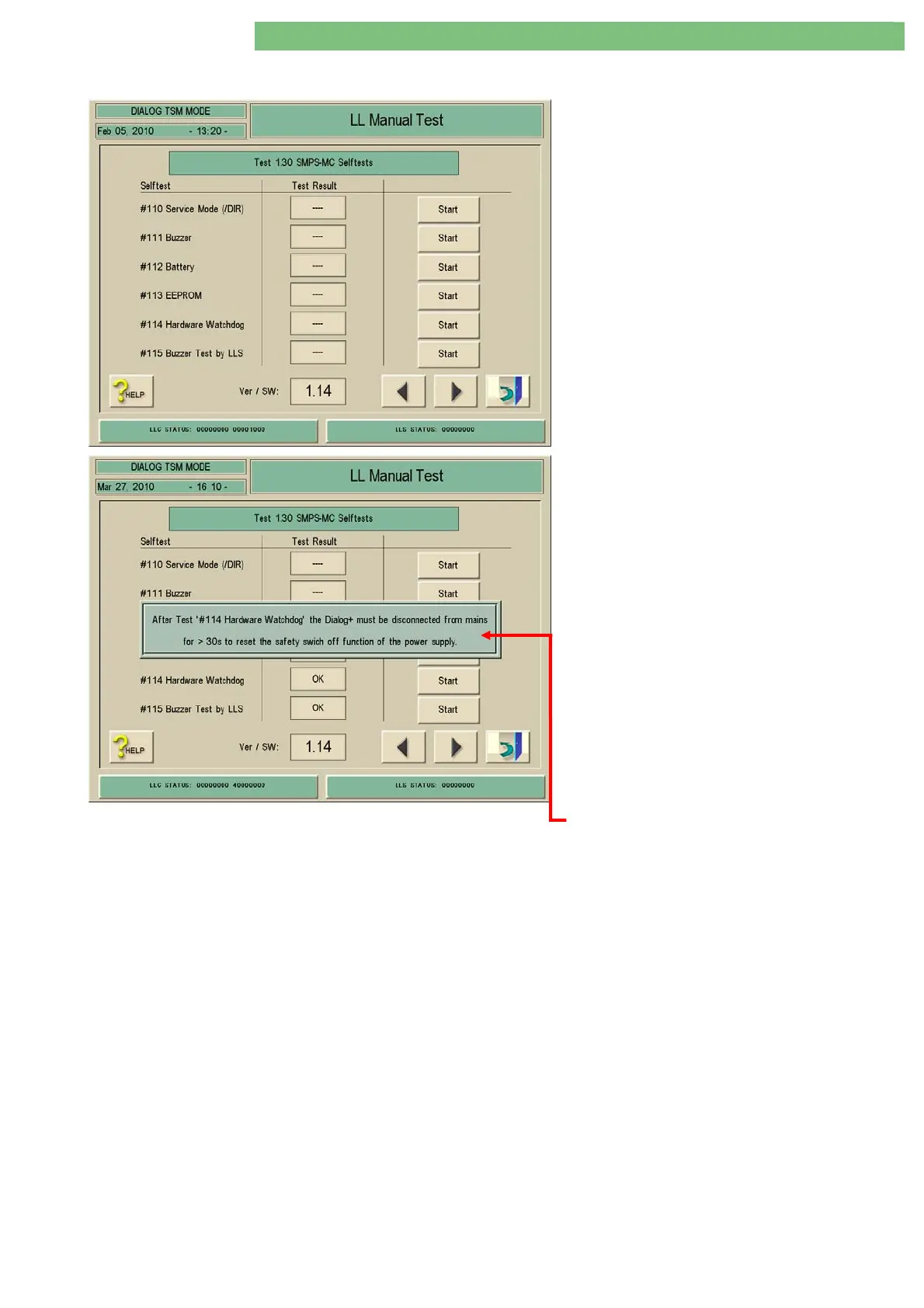

1. Activate the Test 1.30 SMPS-MC Self Tests
menu with the SMPS-MC Self Tests key in the
Low Level Manual Test menu. The following
menu is displayed.
2. Check the functions with the appropriate keys.
The switch mode power supply microcontroller
SMPS-MC can be tested with the self test
functions in this menu.
The relays K3/K4 are deactivated during all self
tests.
The self tests are described in detail on the next
page.
#110 Service Mode (/DIR)
#111 Buzzer
#112 Battery
Note: #112 Battery is performed only if the
battery option is present.
#113 EEPROM
#114 Hardware Watchdog
Note: This window appears if the #Test 114 was
performed. The safety switch-off of the
SMPS-MC must be reset after the test, i.e.
the machine must be disconnected from
mains for > 30 s (disconnect mains plug
from mains receptacle).
#115 Buzzer Test by LLS
Ver/SW
The software version of the SMPS-MC is
displayed.
