B. Braun Dialog+ - Calibration Outlet Flow Pump Nonreturn Valve RVFPA

4. TSM Service Program 1/2010 4 - 164
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.3.22 Calibration Outlet Flow Pump
Nonreturn Valve RVFPA
You can calibrate the outlet flow pump nonreturn valve RVFPA.
VBP
FBK2
RVFPA
LAFS
VLA
VDA
VABK2
VDABK2
VABK1
VDABK1
LA
FPA
8
BK2
BK
1
MSBK2
MSBK1
RVUFP
UFP
Loop-In Point
for Calibration

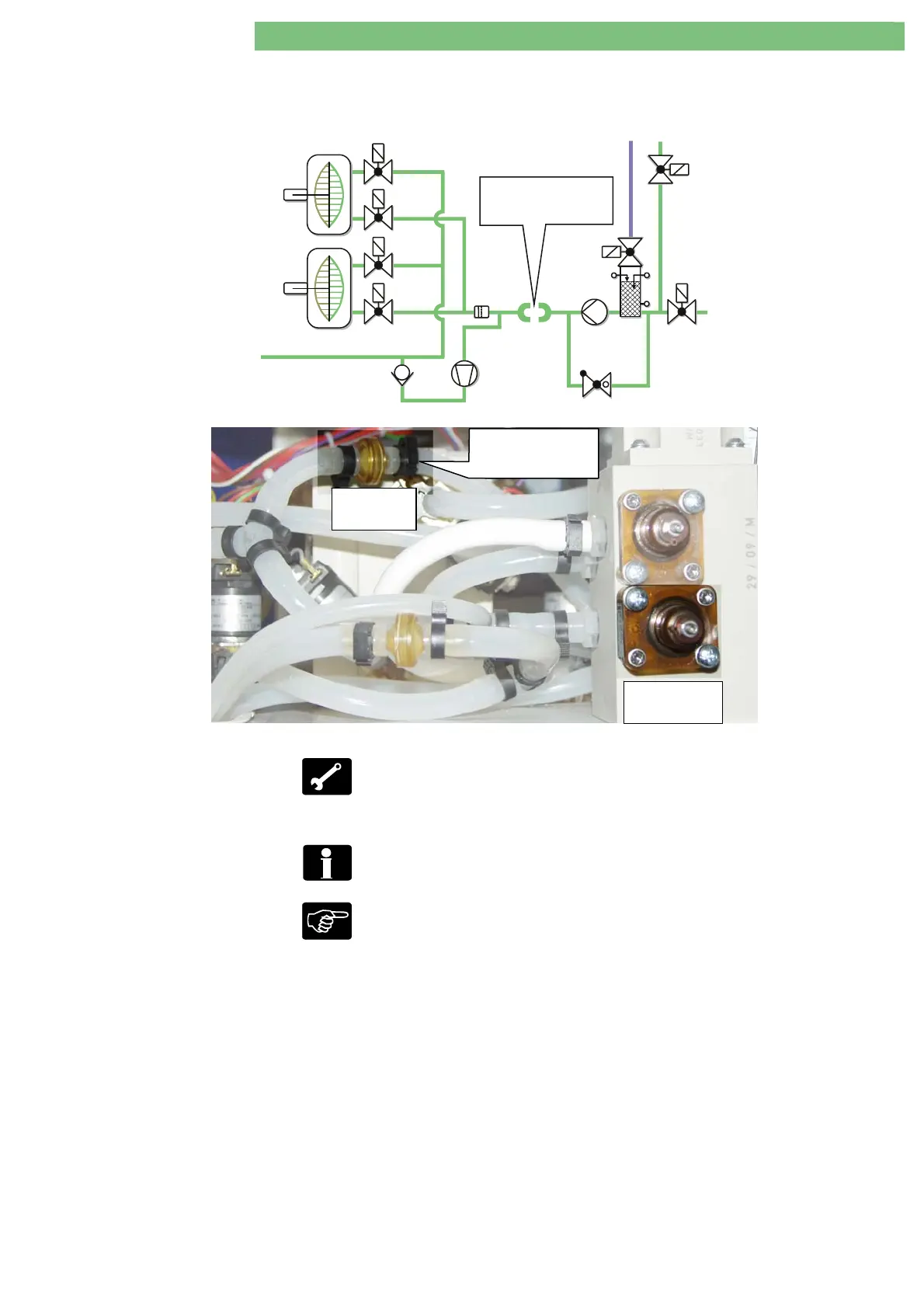

Fig.: Calibration RVFPA/Loop-In Point
Fig.: UF Sub-Rack with FBK2 and RVFPA
• Manometer 0 to 4 bar (art. no. 7701357)
• Flow meter (art. no. 770085A or equivalent)
• Allen key 3 mm
• Size 7 spanner
Please ensure that the manometer and connection tubing are at the same
level as the nonreturn valve during calibration.
1. Connect manometer and flow meter between flow pump FPA and FBK2.
2. Immerge both dialyser couplings into a vessel filled with warm water (30
to 40 °C). Thus uncontrolled pressure conditions are prevented.
3. Select Test 1.20 Water Part (Overview) in TSM.
4. Increase slowly the speed of FPA, until a flow of 500 ml/min is reached.
5. Set temperature TSD to 37
o
C and wait for the temperature reached.
6. Clamp tubing between manometer and FBK2.
7. Loosen lock nut on RVFPA adjustment screw.
8. Set a pressure of 975 mmHg (1300 mbar) with the adjustment screw of
RVFPA.
• 975 mmHg ±37 mmHg
• 1300 mbar ±50 mbar
9. Tighten lock nut again.
10. Remove manometer and flow meter.
FBK2
Loop-In Point
for Calibration
RVFPA
