B. Braun Dialog+ - Top Level Sub-Rack

7. Spare Parts List 1/2010 7 - 19
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
7.6 Top Level Sub-Rack
1
34560610 1 LX800 motherboard
see 7.6.1
2
34519327 1 Battery BR2032, 3V
see 7.6.1
3
34560882 1 Compact flash card 1 GB
see 7.6.1
4
34560726 1 Basic board
5
34560769 1 Power board (valves)
6
34560740 1 Digital board
7
34560866 1 HDF online board
8
34560750 1 Power board (Motors)
9
34560734 1 Analog board
10
34561277 1 Temperature switch
assemble temperature switch on TL sub-rack
with heat sink paste

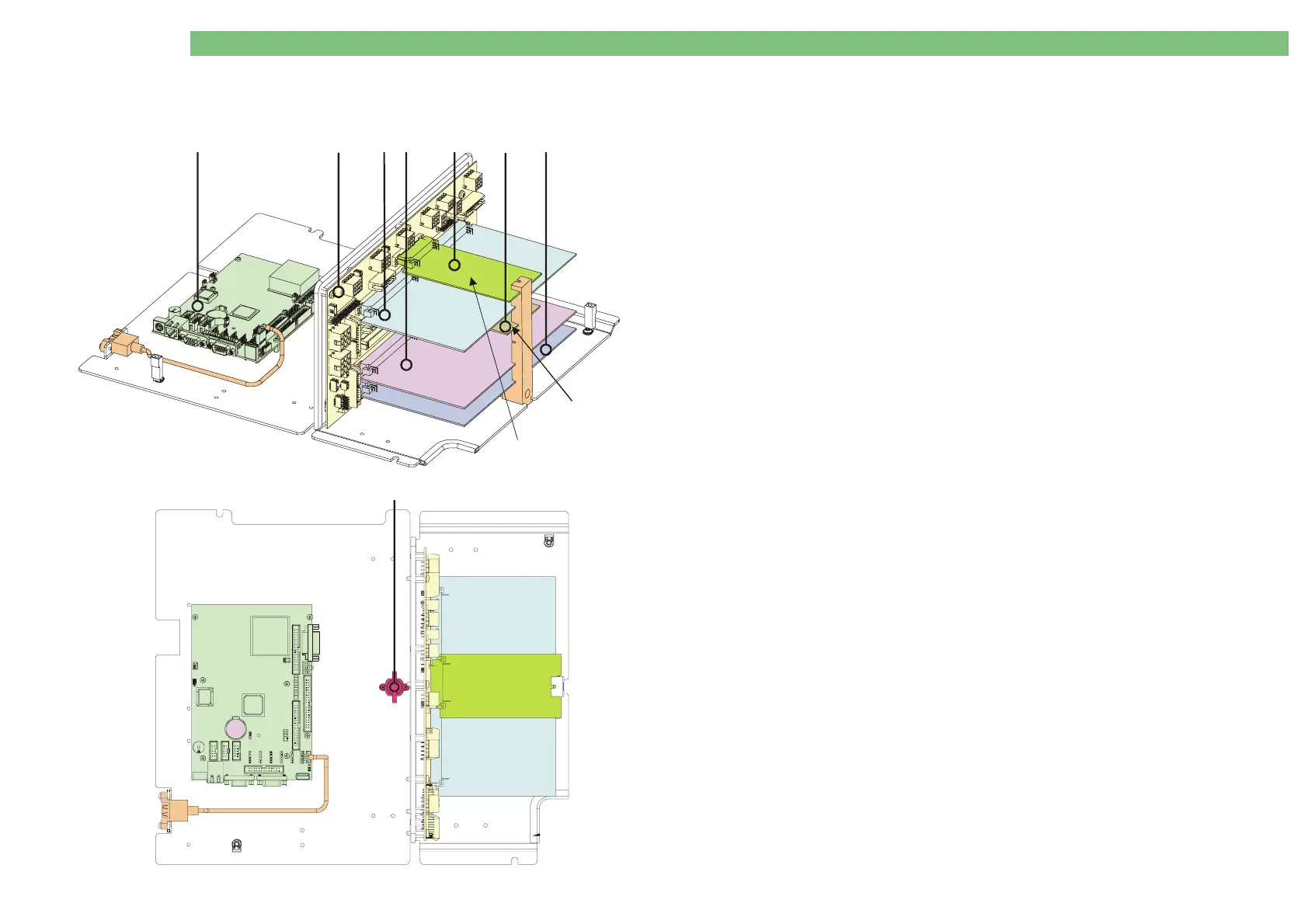

Motherboard
Power Board
Valves
Power Board Motors
HDF BoardOnline
Analog Board
Basic Board
Digital Board
456
9
871,2,3
Power Board Valves
HDF BoardOnline
Basic Board
10
Motherboard
