4. TSM Service Program 1/2010 4 - 79
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.5 Test 1.5 Tubing Clamps

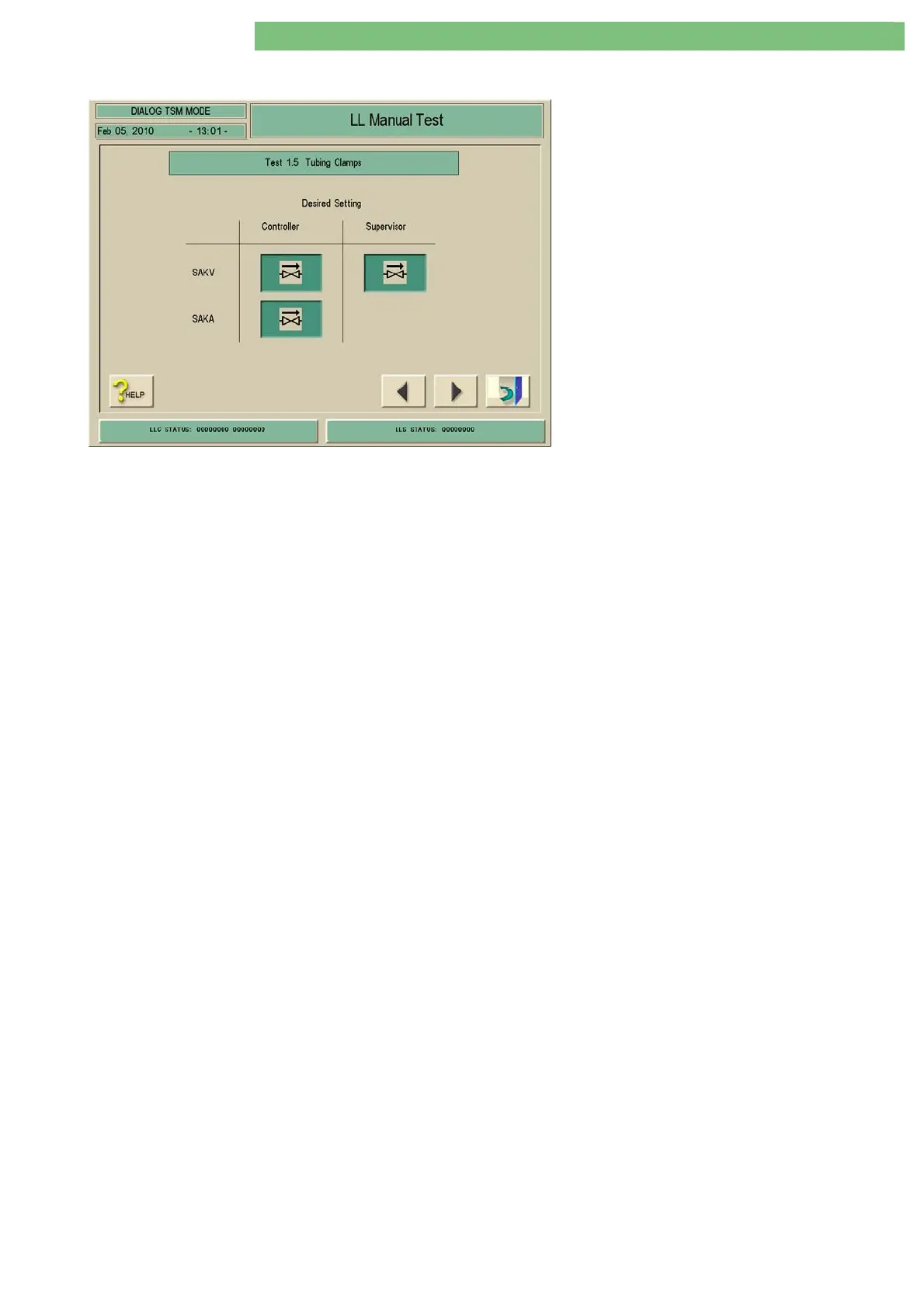

1. Activate the Tubing Clamps menu with the
Tubing Clamps key in the LL Manual Test
menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
Tubing Clamps
SAKV and SAKA
The venous tubing clamp SAKV and arterial tubing clamp SAKA can be closed
and opened. Thereby the switch function and leakage test (pressure - clamp
gap, time) can be tested.
The closed clamp gap is set to 1.4 mm + 0.1 mm.
