B. Braun Dialog+ - Piston Pumps

7. Spare Parts List 1/2010 7 - 15
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
11
1
2
23
7.4.2 Piston Pumps
1

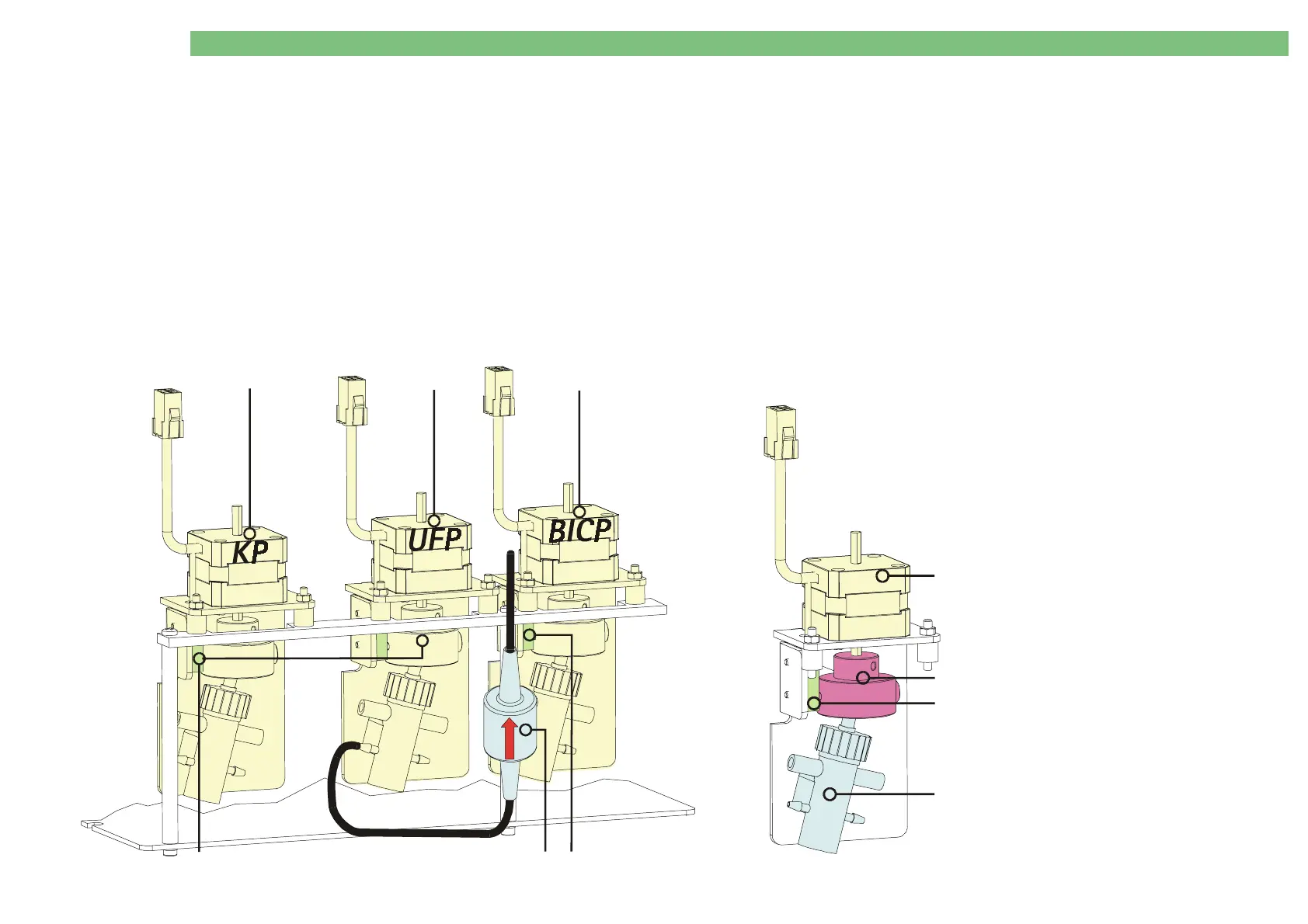

3451749E 1 Piston pump
for UF/BICP/KP piston pump. Return valve additionally
necessary for standard UF piston pump.
2
34519246 1 Reed sensor complete
3
34514988 1 Return valve, incl. 2 x tubing clamps,
2 x cable ties
return valve RV necessary for
standard UFP
4
34560556 1 Motor for piston pump
5
34560572 1 Bell joint for piston pump
6
34560602 1 Pump body for piston pump
-
7703848 1 Assembly jig (motor piston pump)
required for motor assembly
4
5
2
6
