B. Braun Dialog+ - Power Board Valves PBV; Legend Power Board Valves

2. Technical System Description 1/2010 2 - 8
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 2_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
2.4 Power Board Valves PBV
P1
P2
U4
U6
U3
U9
U13
U18
U23

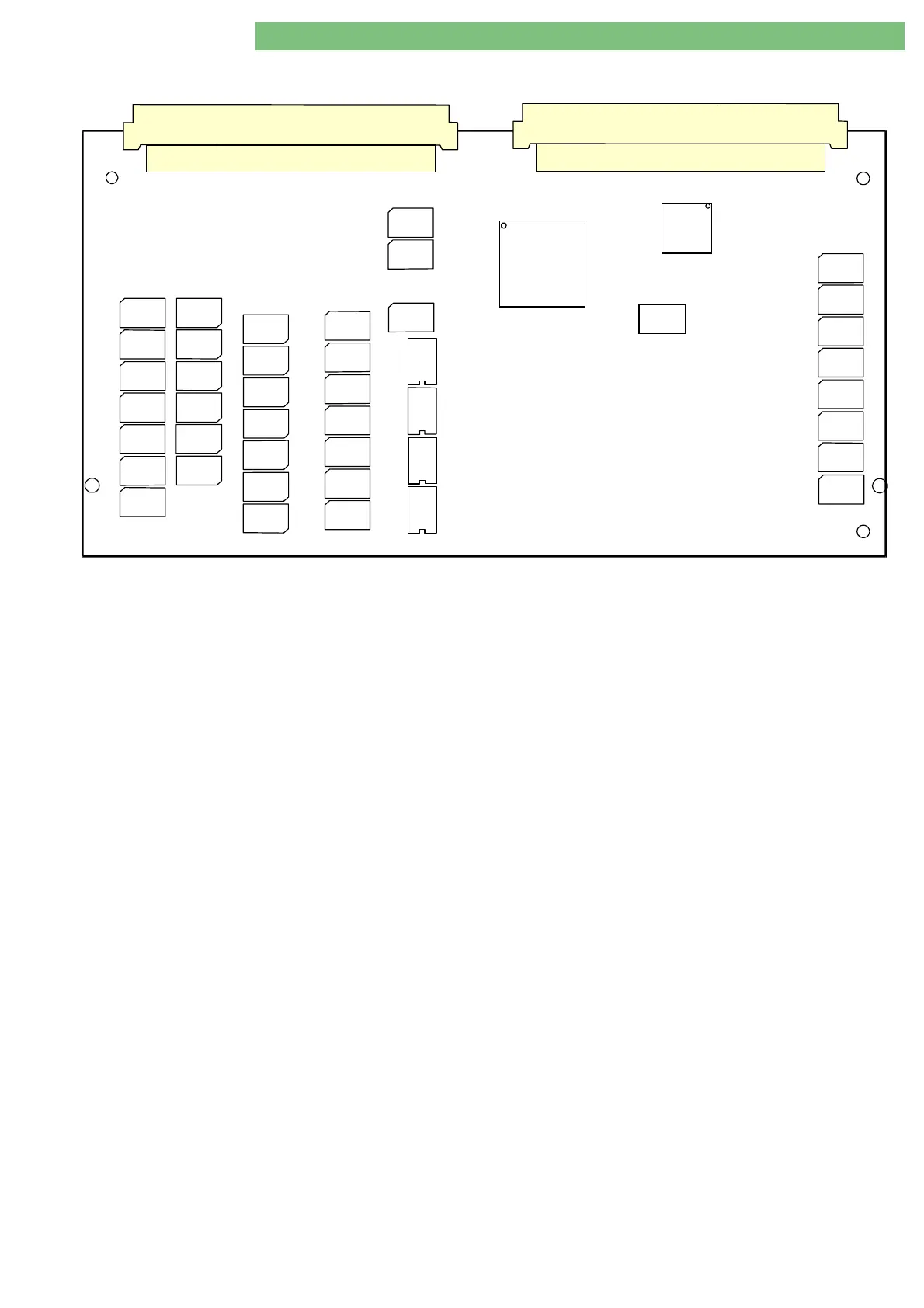

Fig. : Power Board Valves
2.4.1 Legend Power Board Valves
P1 Valves:
Inlet Upline Tank Valve
VVBE
Degassing Inlet Valve
VEB
Air Separator Valve Luftabscheider
VLA
Dialyser Inlet Valve
VDE
Dialyser Outlet Valve
VDA
Bypass Valve
VBP
Option BIC Cartridge Valves
VBICP, VBKS, VBKO, VVB
Disinfection Valve
VD
Circulation Valve
VZ
Venous Tubing Clamp
SAKV
Arterial Tubing Clamp
SAKA
P2 Valves:
Valve Balance Chamber
VDEBK1/2, VDABK1/2, VEBK1/2, VABK1/2
Valves Level Module
VBT, VPV, VPE, VPU, VPD, VPA
