2.16 TFT Monitor

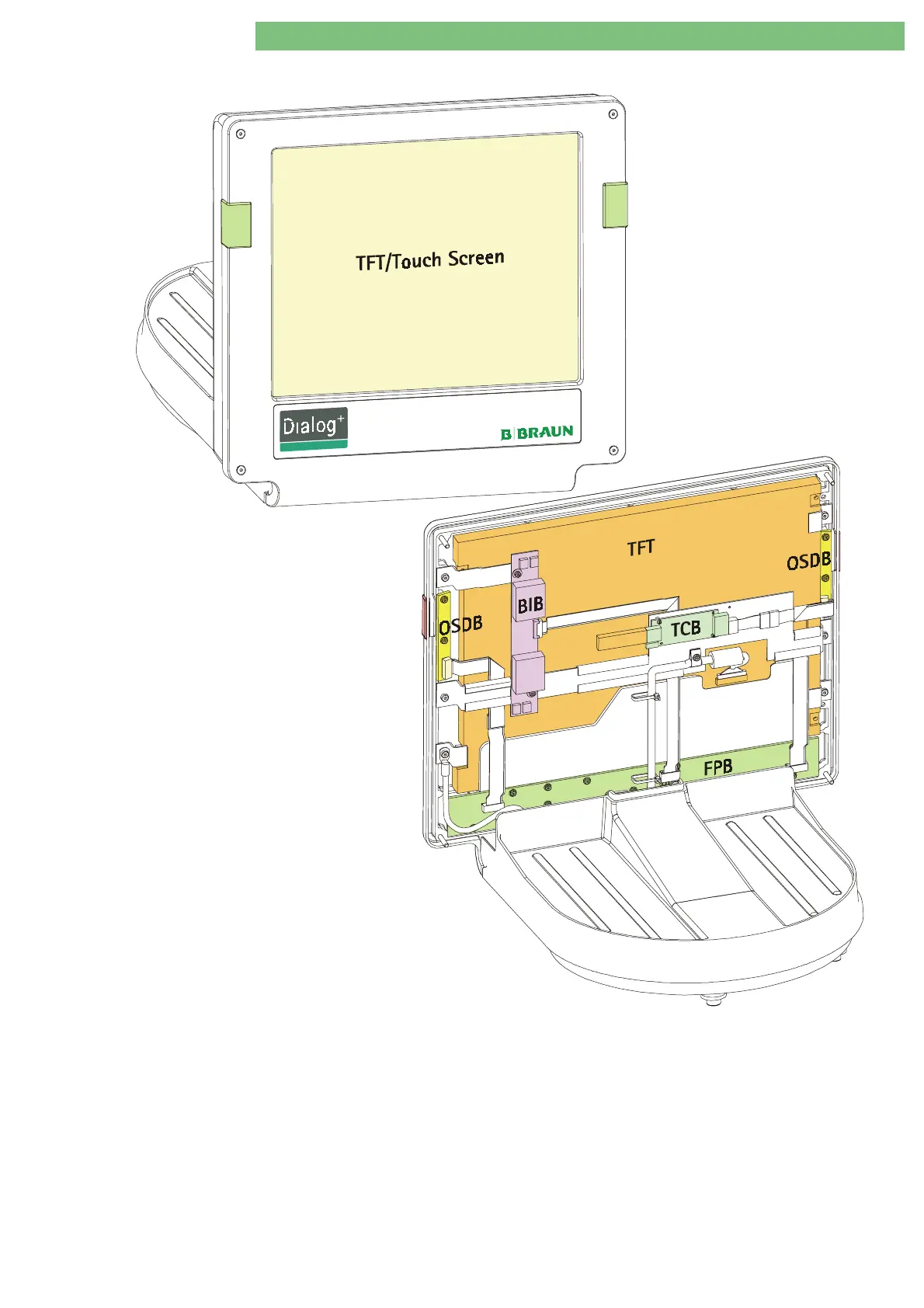

Fig. : TFT Monitor
2.16.1 Legend TFT Monitor
Backlight Inverter Board
BIB
Front Panel Board
FPB
TFT Monitor
TFT
Optical Status Display Board
OSDB
Touch Controller Board
TCB
Touch Screen
