B. Braun Dialog+ - Rinsing Chambers for Concentrate Suction Rods

7. Spare Parts List 1/2010 7 - 40
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
red
grey
2
13
456 7

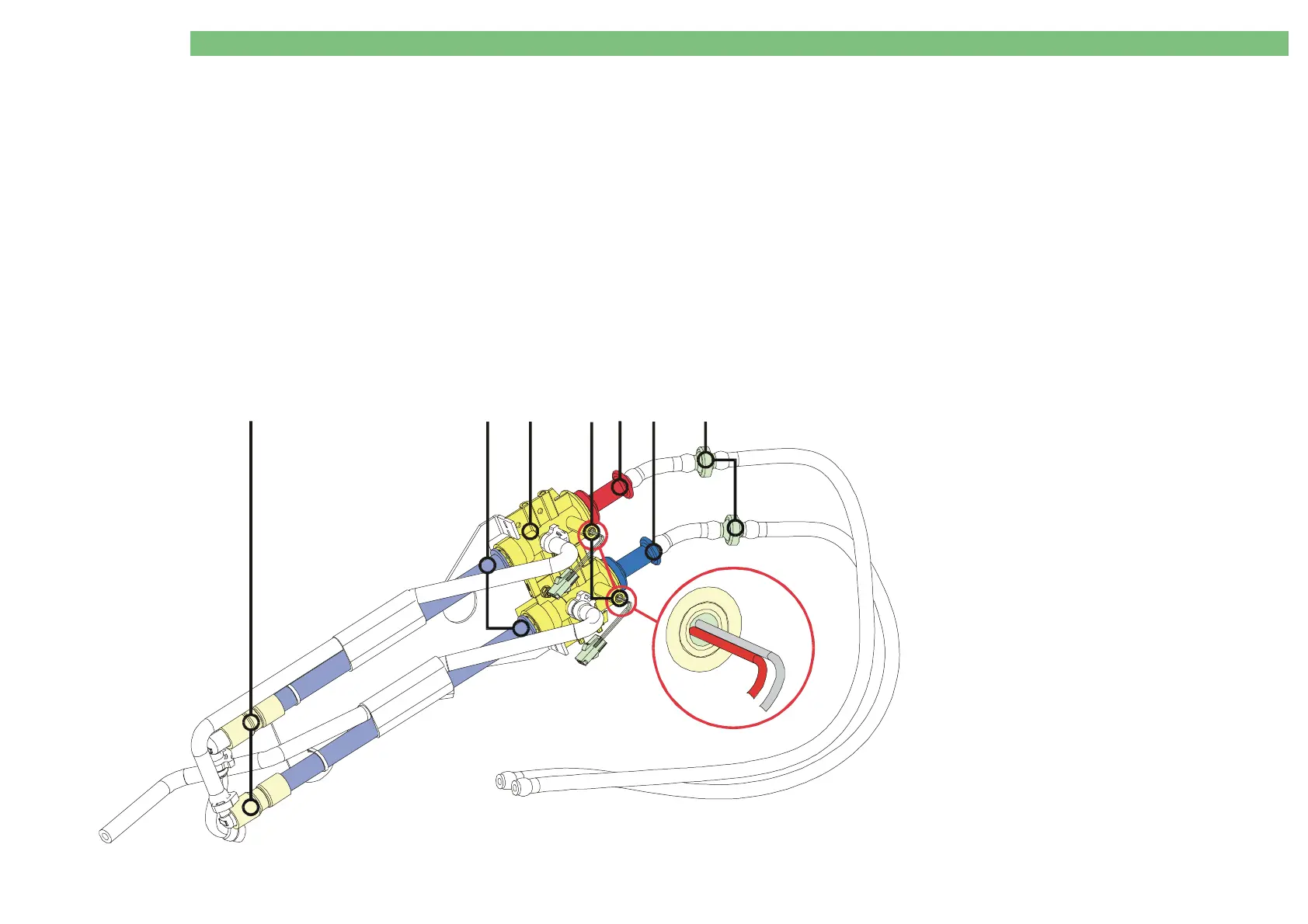

7.9.2 Rinsing Chambers for Concentrate Suction Rods
1
34565345 1m Silicone tubing 12 x 2.5 (1 m)
2
34560777 1 Retainer tubes (blue) for suction rods
1 x 260 mm and 1 x 280 mm
3
34514120 1 Retainer for suction rods
4
34517138 1 Reed sensor with contacts
and o-ring 3.68 x 1.78
Pay attention to the assembly position of
the reed sensors (red left/grey right)
5
3451476A 1 Male connector (red) with o-rings
6
3451475A 1 Male connector (blue) with o-rings
7
34517782 5 Disposable filter
