B. Braun Dialog+ - Substitution Port

7. Spare Parts List 1/2010 7 - 59
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx

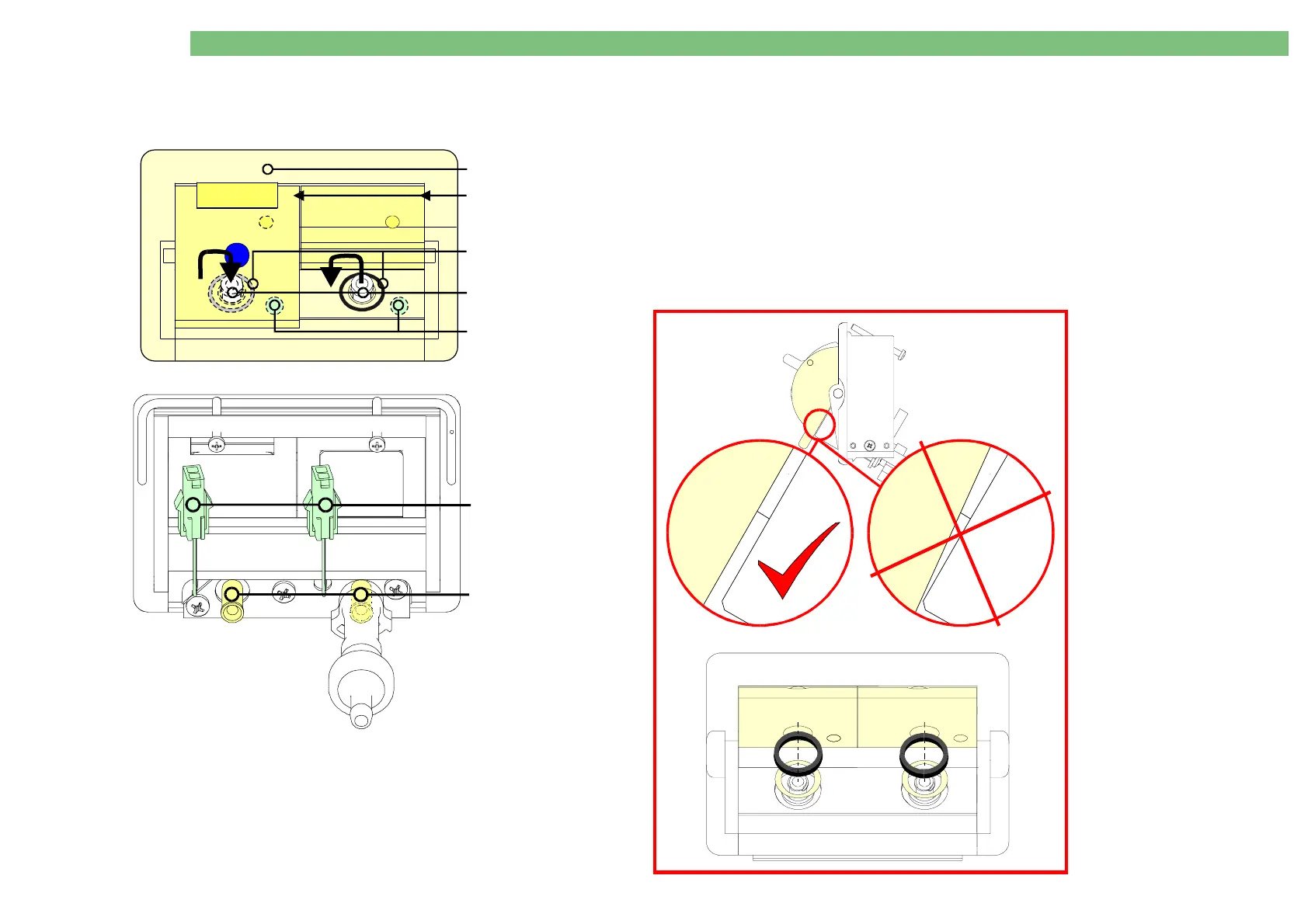

7.18.1 Substitution Port
1
3451448A 1 Substitution port complete
2
34570349 5
Pressure spring
∅
4.6 x 14 mm
3
3457035A 2 Quadring 12.37 x 2.62 incl. spacer
4
34560017 1 Substitution connector
stainless steel, without o-ring
5
3477106A 5 O-ring 6.4 x 1.3
6
34517138 1 Reed sensor with contacts and o-ring 3.68 x 1.78
1
4,5
3
2
6
4,5
6
A or A+B
(A=Quadring; B=Spacer)
A
B
A
B
