4. TSM Service Program 1/2010 4 - 81
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx

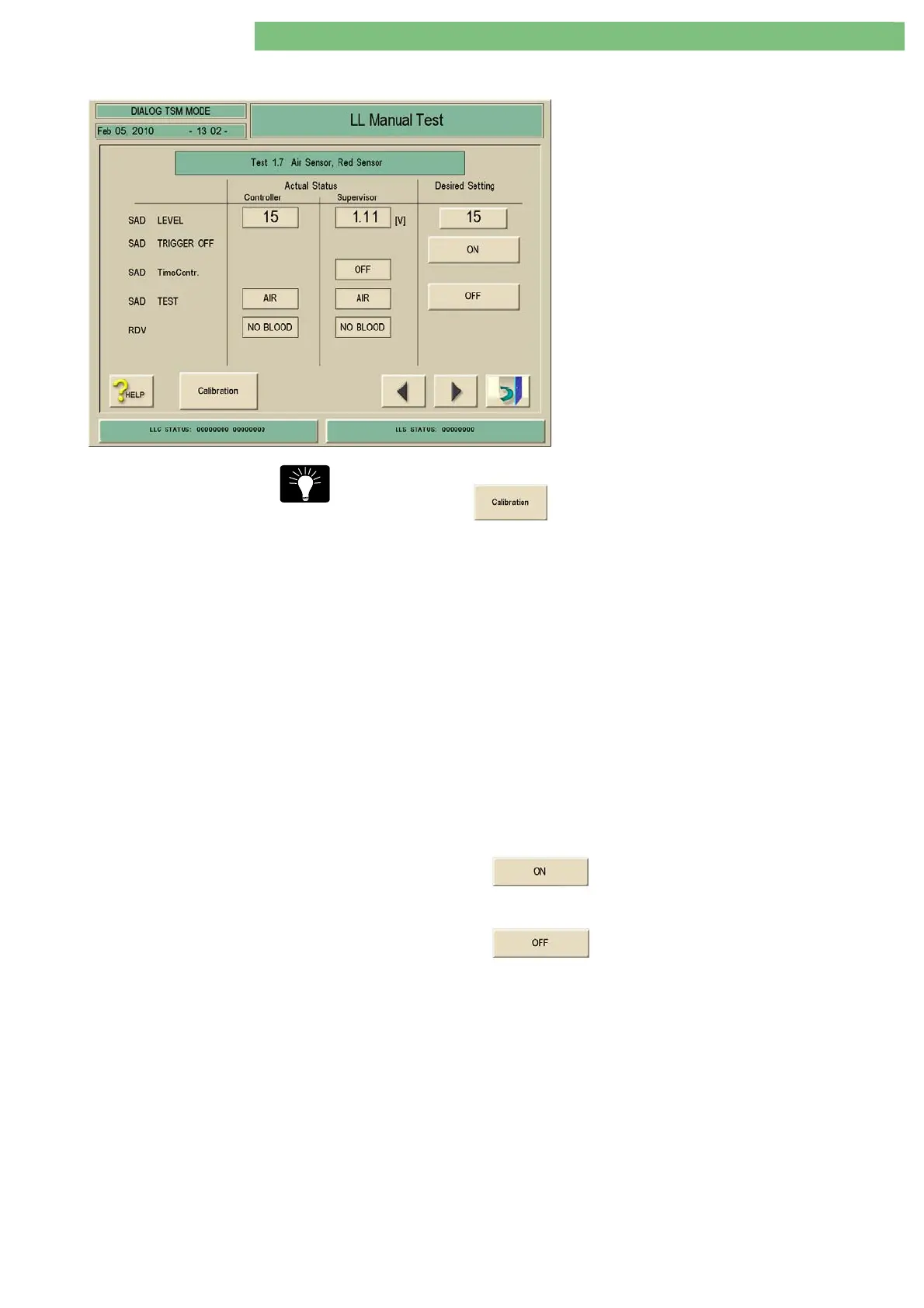

4.8.2.7 Test 1.7 Air Sensor SAD, Red Sensor
1. Activate the Air Sensor, Red Sensor menu with
the Air Sensor, Red Sensor key in the LL
Manual Test menu. The following menu is
displayed.
2. Check the functions with the appropriate keys.
You can skip directly to the calibration of the safety air detector SAD by
pressing the
key.
SAD Level
The calibration level (example KS = 48) on the SAD is entered for the SAD
(version 2) with a fixed alarm level. The alarm level is automatically set to 15
digits after the calibration value is entered. The test level is calculated by
adding 5 digits to the calibration level (test level = KS + 5 digits). You can find
the detailed description and procedure for the calibration of the SAD version 2
in the menu: LL Manual Calibration, Calibration 2.9 Safety Air Detector SAD.
SAD Trigger OFF
The cyclic measurement of the controller can be checked with the SAD
TRIGGER OFF key.
SAD Time Control
The cyclic measurement is checked by the controller and must be detected by
the supervisor with the SAD Time Contr.
SAD Test Activate the internal test of the safety air detector SAD with the SAD TEST key
(the switch level is automatically increased). The sensitivity can be changed to
check the switching point.
AIR A tubing filled with air is inserted in the SAD
If the SAD TEST
is activated AIR must be detected.
NO AIR A tubing filled with fluid is inserted in the SAD
If the SAD TEST
is activated NO AIR must be detected.
RDV The light path is interrupted
NO BLOOD
(Controller/Supervisor) changes to BLOOD
(Controller/Supervisor).
