4.8.2.20 Test 1.20 Water Part (Overview)

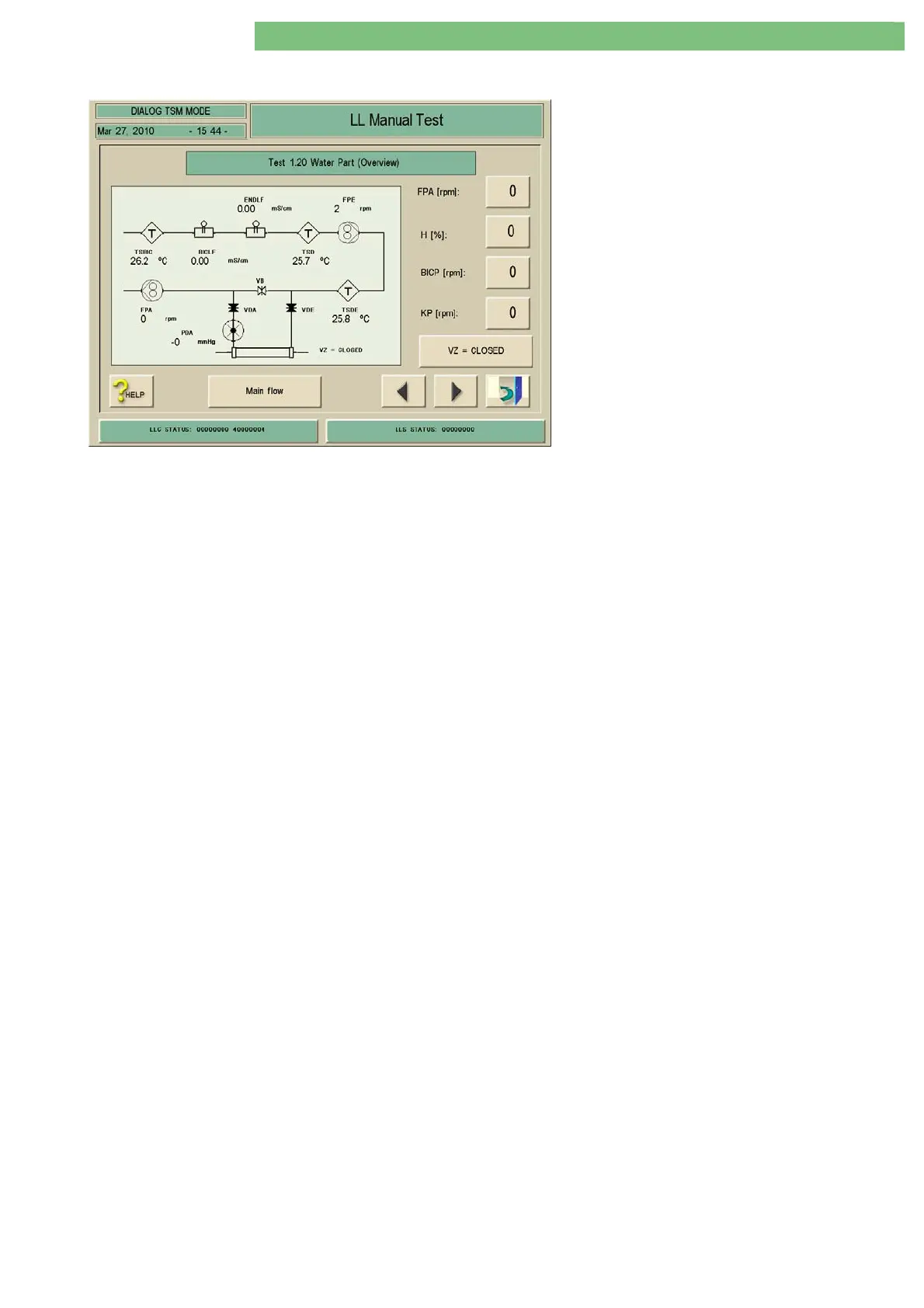

1. Activate the Water Part (Overview) menu with
the Water Part (Overview) key in the LL
Manual Test menu. The following menu is
displayed.
2. Check the functions with the appropriate keys.
You can set the speed for the flow pump FPE/FPA. The heater power H % can
be set in %. The speed of the concentrate pumps BICP/KP can be set manually.
After starting this menu the balance chamber is initialised. Then the flow pump
FPE is set to the same speed as FPA. The balance chamber valves are switched
automatically.
Main Flow
The machine can be switched between main flow and bypass for servicing.
Main Flow
Valves VDA/VDE are open (valve symbols are black).
Valve VBP is closed (valve symbol is white).
Bypass
Valves VDA/VDE are closed (valve symbols are white).
Valve VBP is open (valve symbol is black).
