B. Braun Dialog+ - Calibration Pressure Sensors Blood Side PA, PV, PBE and PBS

4. TSM Service Program 1/2010 4 - 115
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.3.3 Calibration Pressure Sensors Blood
Side PA, PV, PBE and PBS
Prior to Calibration
• Use calibrated measurement instrument
• Wait until Dialog has reached working temperature
You can calibrate the following pressure sensors of the blood side either
separately or combined:
• PA arterial pressure sensor
• PV venous pressure sensor
• PBE blood inlet pressure sensor
• PBS blood control pressure sensor
After a calibration compare the pressure sensor values in the test menu. The
sensor values are displayed in digits (see conversion table).
PV
PA
PBE
PBS
HP
BPVBPA
SAKA
SAKV-SG
SAD
RDV
V
A
C
mS/cm
o
mmHg

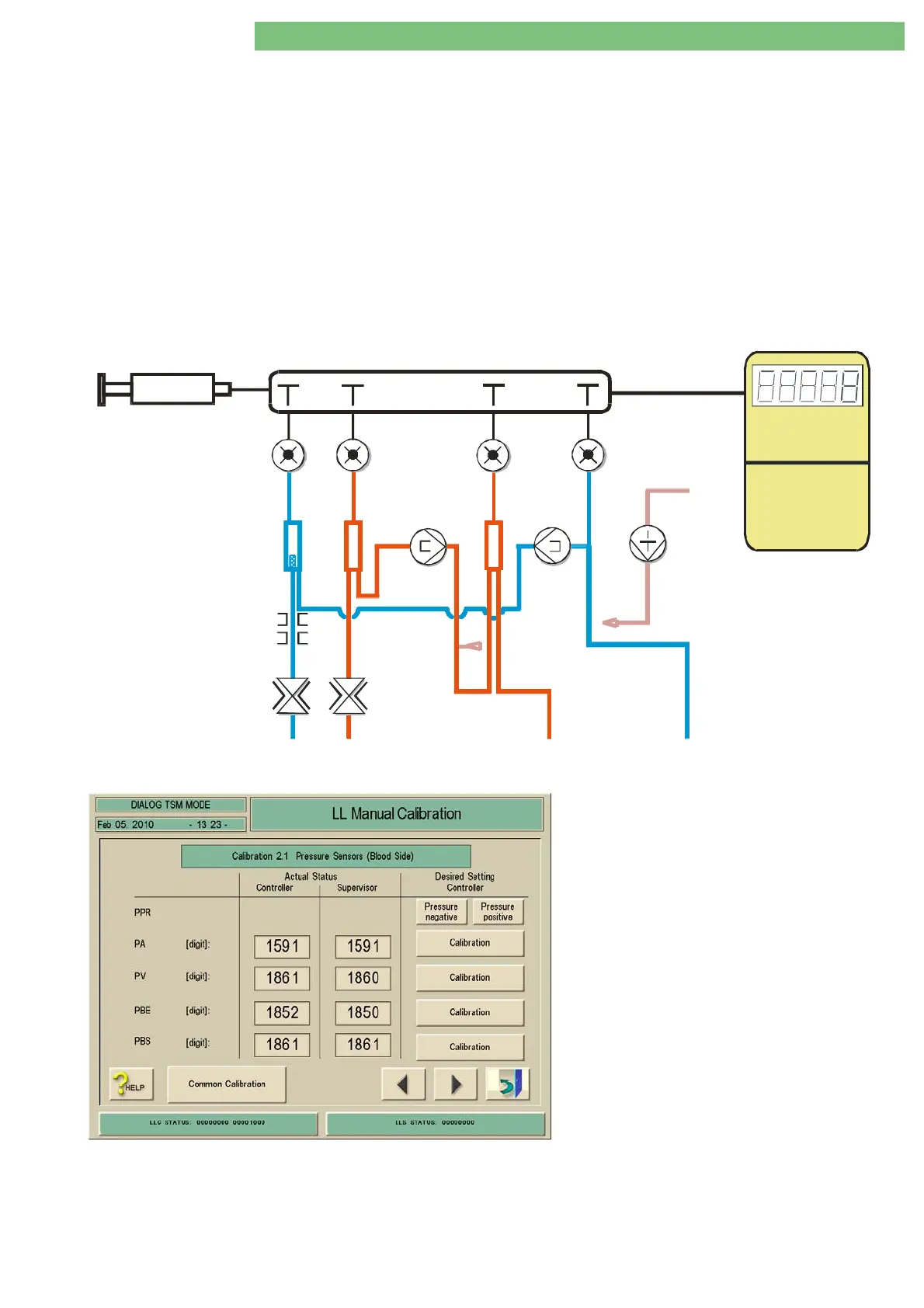

Fig. : Single Needle Version
1. Activate the LL Manual Calibration menu
with the LL Manual Calibration key in the
Manual Test and Calibration menu.
2. Activate the Pressure Sensors Blood Side
menu by pressing on the line Calibration 2.1
Pressure Sensors Blood Side. The following
menu is displayed.
