B. Braun Dialog+ - Test 1.27 DFS Pressure Test of Therapy

4. TSM Service Program 1/2010 4 - 105
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.27 Test 1.27 DFS Pressure Test of Therapy

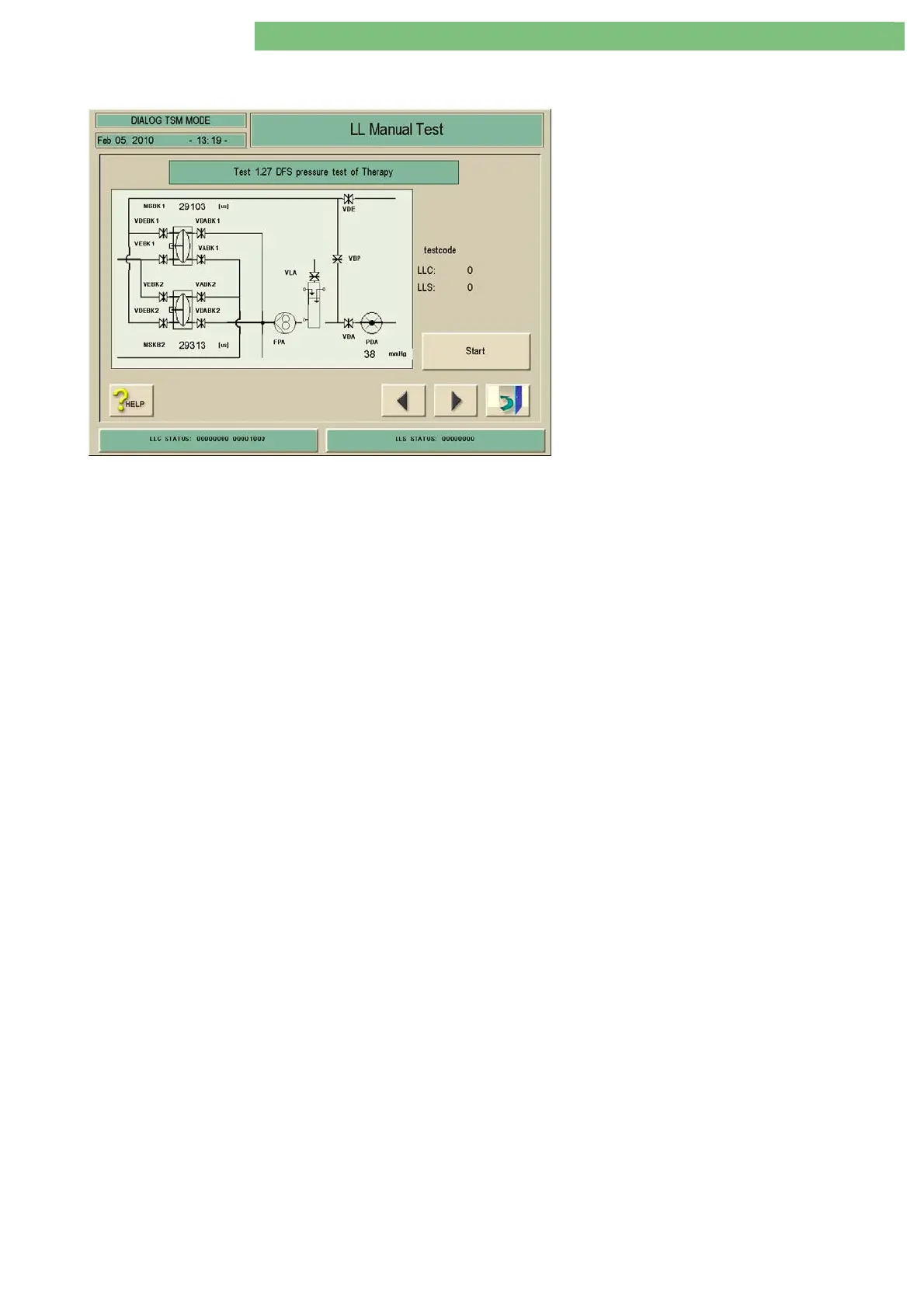

1. Activate the DFS Pressure Test of Therapy
menu with the DFS Pressure Test of Therapy
key in the LL Manual Test menu. The following
menu is displayed.
2. Check the functions with the appropriate keys.
Start Key
You can activate the DFS pressure test with the Start key from the self test in
Preparation.
Stop Key
The test run can be terminated with the Stop key. The key jumps back to Start
in case of an error or at the end of the pressure test.
Test Code
The test codes for LLC and LLS are displayed for all test phases. In case of an
error the defective components can be determined with the help of the test
description.
