B. Braun Dialog+ - Test 1.17 UF Pump

4. TSM Service Program 1/2010 4 - 92
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.17 Test 1.17 UF Pump

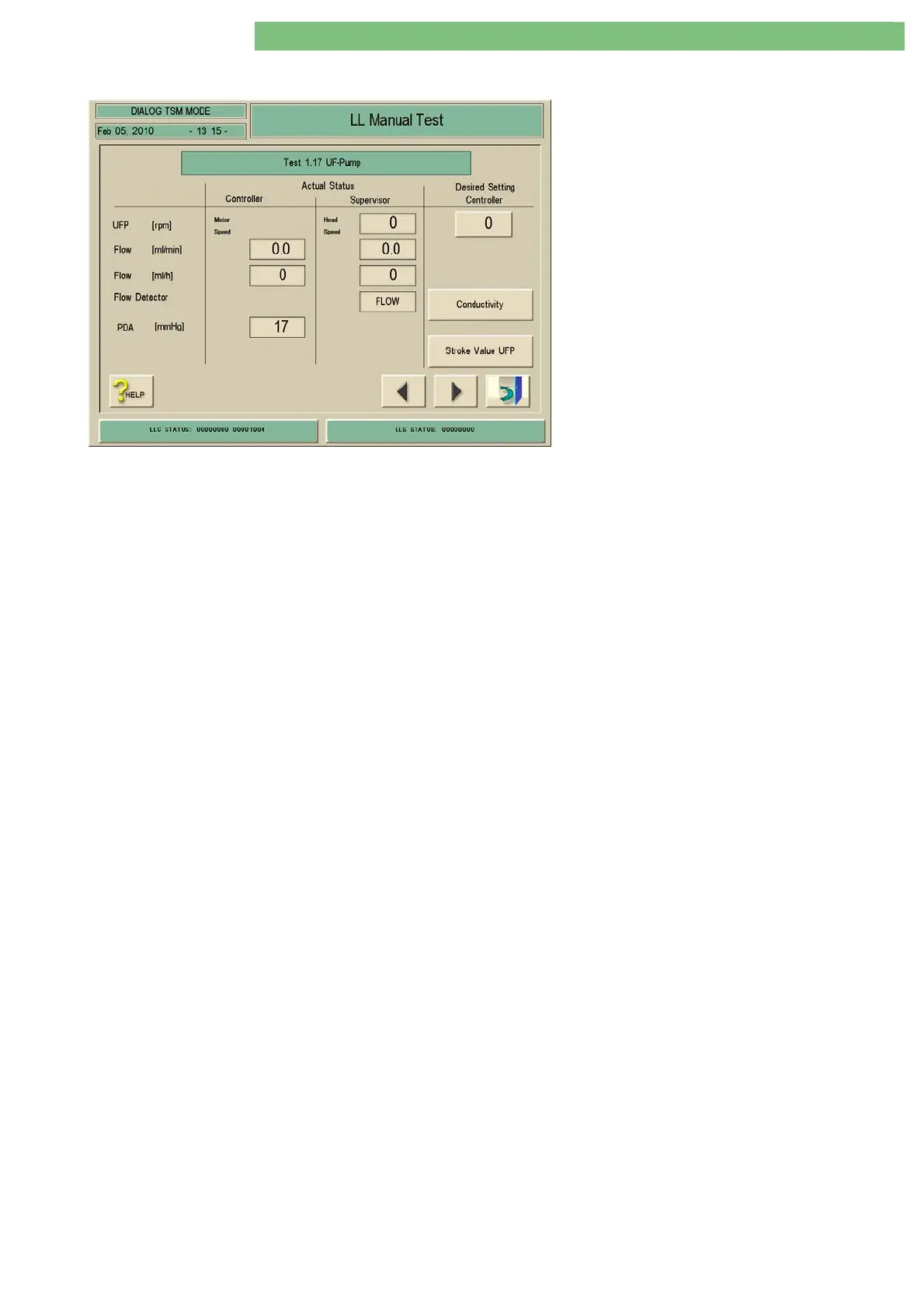

1. Activate the UF Pump menu with the UF Pump
key in the LL Manual Test menu. The following
menu is displayed.
2. Check the functions with the appropriate keys.
You can set the speed of the UF pump UFP. The head speed and the calculated
flow are displayed. At the beginning of the test the balance chambers are
initialised. The flow pumps FPE/FPA are activated to reach the inlet pressure
for UFP, set by the value of the throttle DDE.
Flow Detector
Not applicable.
Stroke Value UFP The Stroke Value UFP should not be used in a normal case, because UFP must
be calibrated (see LL Manual calibration).
