2.20.4 Central Bicarbonate and
Concentrate Supply (Option)
A canister or central supply can be selected via the bicarbonate and
concentrate supply connection BVA and KVA.
The flow pump FPE guarantees a continuous control of the desired dialysate
flow into the balance chambers.
The flow rate is determined by the filling time of the balance chamber. The flow
pump FPE is controlled via the predetermined volume of the chamber and a
continuous detection of the position of the membrane.
2.20.5 BIC Cartridge Holder (Option)
DBK
DBKDBK
DBK Throttle Bicarbonate Cartridge Holder
Throttle Bicarbonate Cartridge HolderThrottle Bicarbonate Cartridge Holder
Throttle Bicarbonate Cartridge Holder
DBK ensures a constant pressure (approx. 300 mmHg) during the filling of the
bicarbonate cartridge.
VBKO
VBKOVBKO
VBKO Bicarbonate Cartridge Holder Top Valve
Bicarbonate Cartridge Holder Top ValveBicarbonate Cartridge Holder Top Valve
Bicarbonate Cartridge Holder Top Valve
The bicarbonate cartridge is filled to the limit pressure (300 mmHg) after VBKO
opens.
VBKS
VBKSVBKS
VBKS Bicarbonate Cartridge Holder Concentrate Rod Valve
Bicarbonate Cartridge Holder Concentrate Rod ValveBicarbonate Cartridge Holder Concentrate Rod Valve
Bicarbonate Cartridge Holder Concentrate Rod Valve
The bicarbonate cartridge is vented during preparation and in therapy, i.e. VBKO
closes and VBKS opens for a short time. This is repeated in regular intervals
during therapy. VBKS is opened after the end of the therapy to empty the
bicarbonate cartridge.
VBICP
VBICPVBICP
VBICP Bicarbonate Pump Valve
Bicarbonate Pump ValveBicarbonate Pump Valve
Bicarbonate Pump Valve
VBICP opens shortly after the BIC cartridge was filled, to rinse away the initial
bicarbonate. VBICP switches the BIC pump in bypass after the end of the
therapy to empty the bicarbonate cartridge.
VVB
VVBVVB
VVB Upline Tank Valve
Upline Tank ValveUpline Tank Valve
Upline Tank Valve
VVB cuts off the main flow after the end of the therapy to empty the
bicarbonate cartridge via FPE (VBICP and VBKS are opened).
BE
BE
FB
BVA
BICLFTSBIC
RVFPE
FPE
RVK
VBKS
VVB*
VBKO*
RVB
VBICP*
BICP
FBIC
RVBO*
DBK*
RVBU
SPA
BKUS
8
T
KP
ENDLF-SENDLF
TSD TSD-S
T T
TSE
T

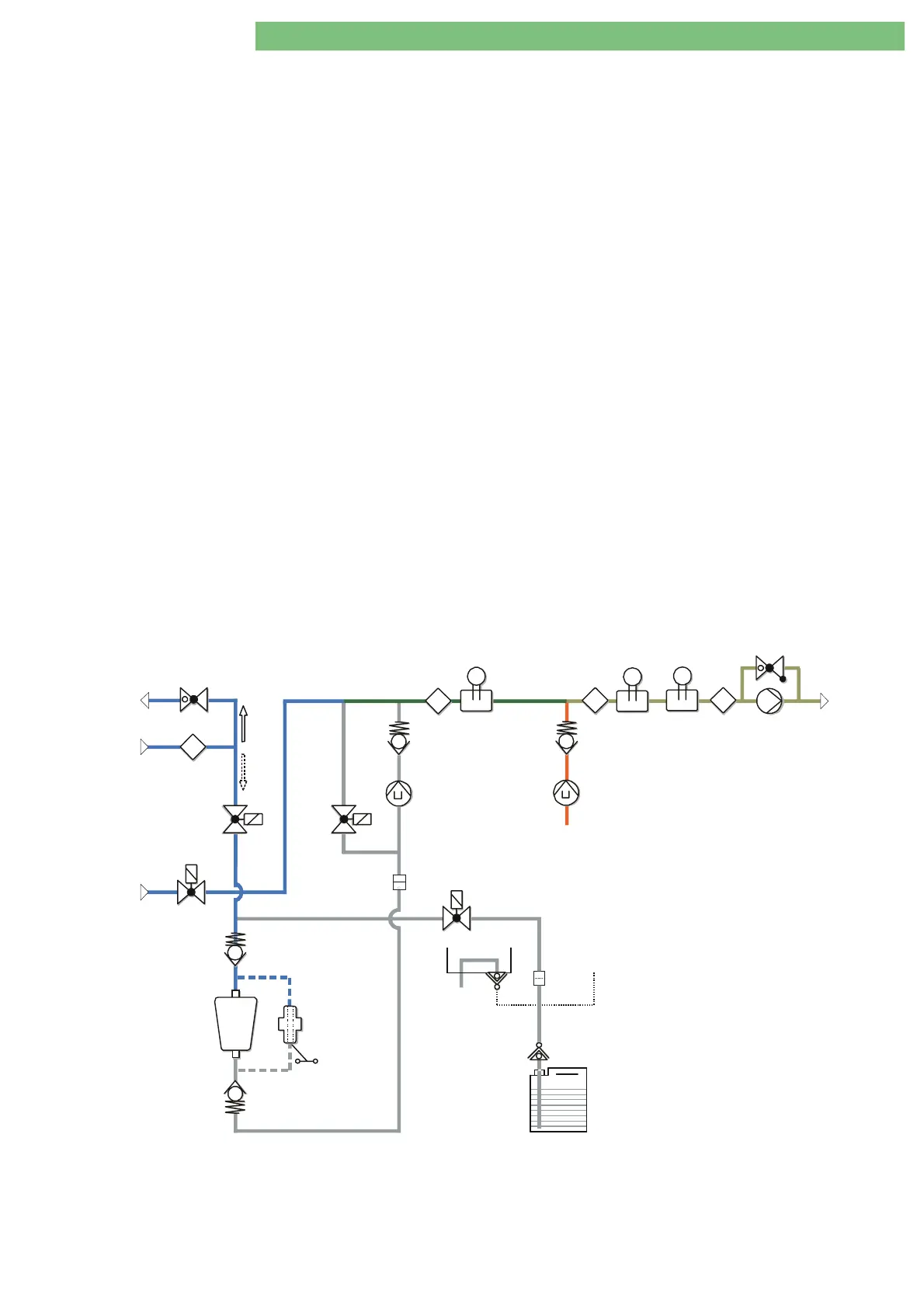

Fig. : BIC Cartridge Holder (Option)
