B. Braun Dialog+ - Test 1.3 Blood Pump Venous

4. TSM Service Program 1/2010 4 - 77
BA-TE-DE08C M.KAY Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.2.3 Test 1.3 Blood Pump Venous

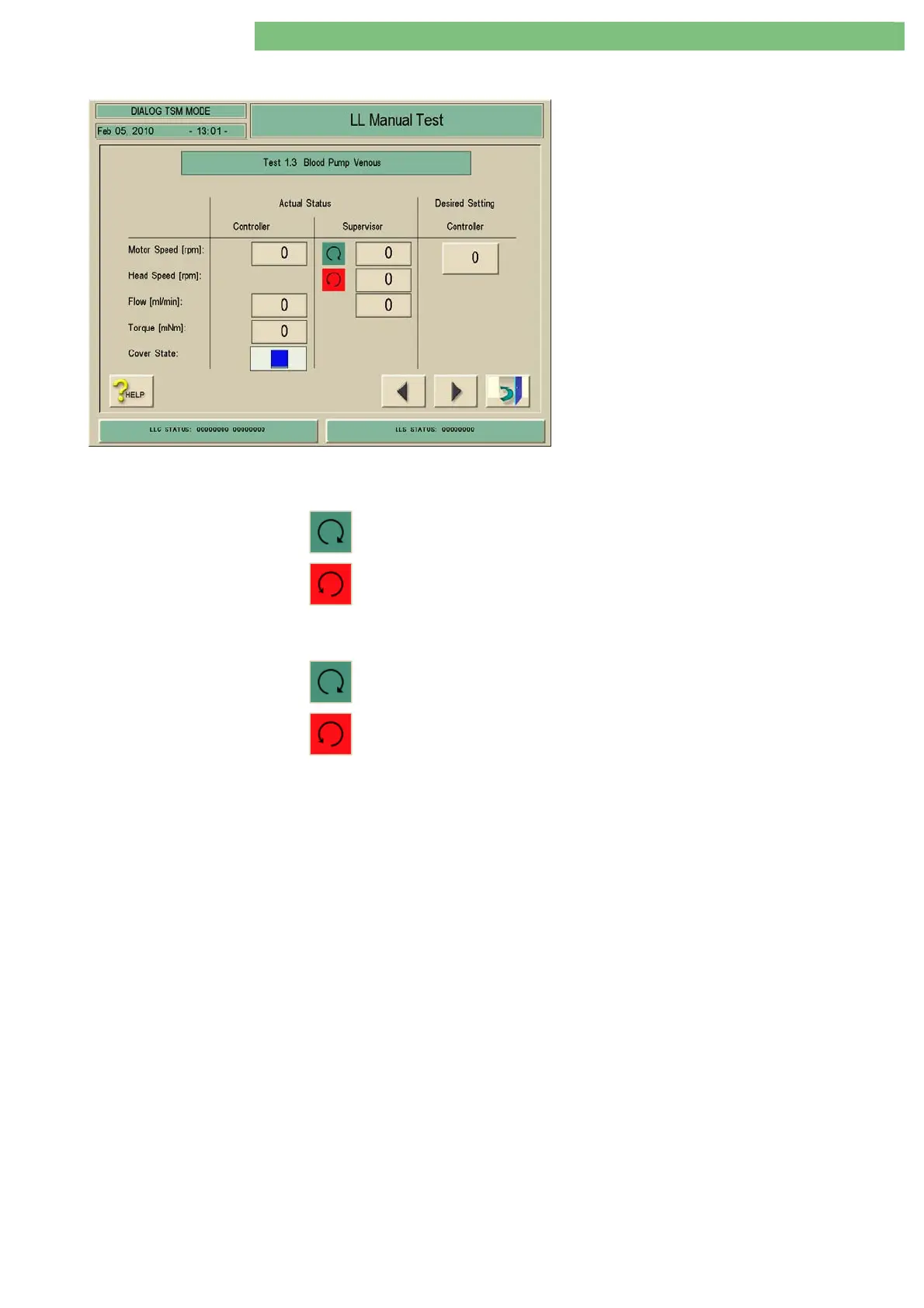

1. Activate the Blood Pump Venous menu with
the Blood Pump Venous key in the LL Manual
Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
Motor Speed
The motor speed is displayed by the supervisor. The direction of rotation is
displayed by a direction of rotation symbol:
Green: Correct direction of rotation
Red: Reverse direction of rotation
Head Speed
The head speed is displayed by the supervisor. The direction of rotation for the
roller is displayed by a direction of rotation symbol:
Green: Correct direction of rotation
Red: Reverse direction of rotation
Flow
The controller and supervisor display the calculated flow rate, based on the
pump speed and the tube constant.
Torque
The motor torque is displayed by the controller.
Cover State If the pump cover is opened the blood pump BPV/substitution pump is stopped
immediately. The controller detects and displays the opened pump cover.
