B. Braun Dialog+ - Blood Pump

7. Spare Parts List 1/2010 7 - 34
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx

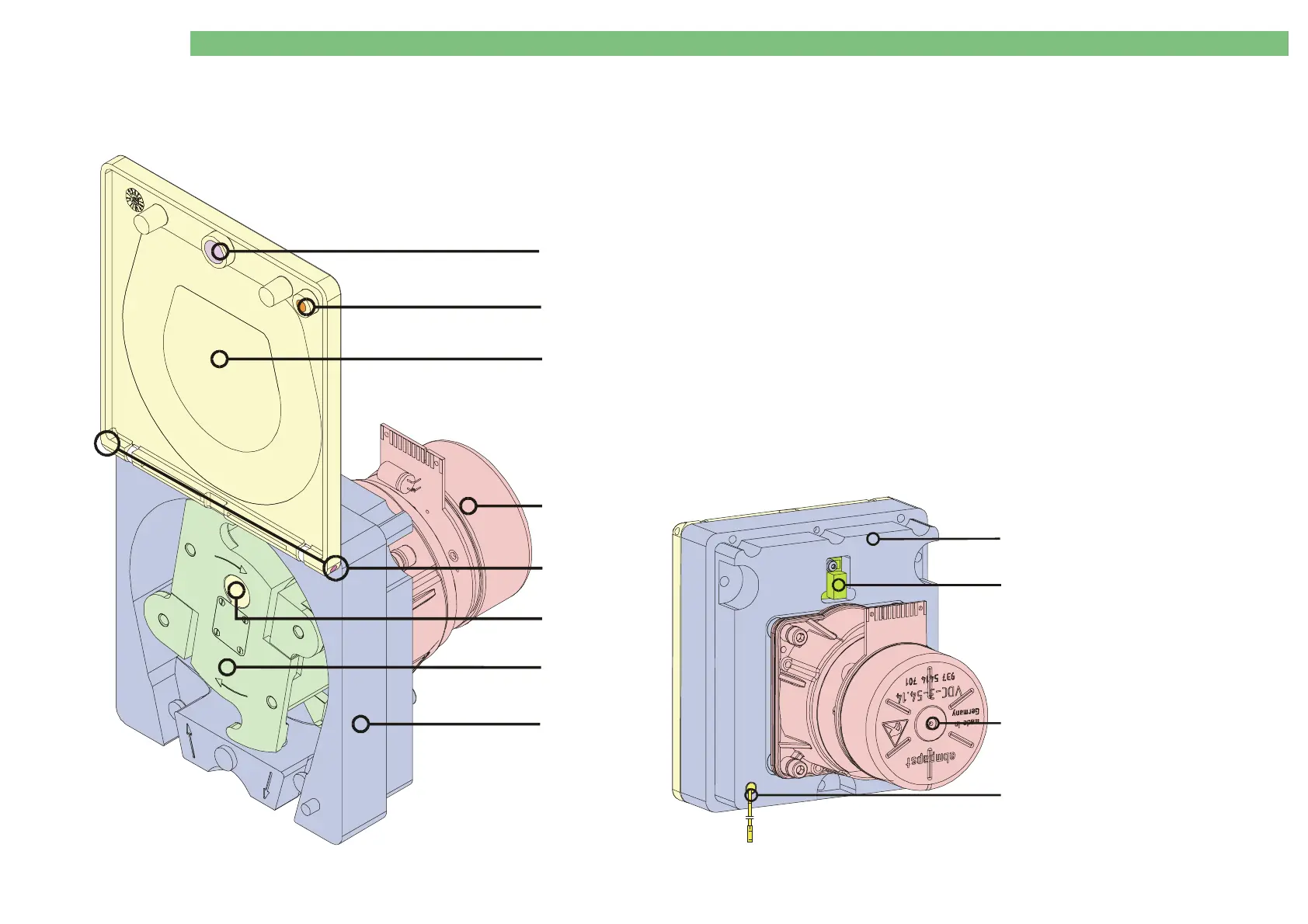

7.8.3 Blood Pump
1
34560033 1
Metal disc
∅
10 mm
for cover, use Loctite 406
2
34560025 1
Magnet
∅
5 mm
for cover, use Loctite 406
3
3451669E 1 Cover for blood pump
without hinge pin (see separate figure)
4
34560947 1 Drive unit for blood pump (SW 1.7.4)
5
34519823 1 Hinge pin with interior thread
hinge pin
6
34570616 5 Latch
7
34560807 1 Roller 8x12 for blood pump
8
34561331 1 Pump head with cover
without drive unit
8
34560793 1 Blood pump without roller
complete with drive unit and cover
9
34561358 1 Direction of rotation board for blood pump
10
34517138 1 Reed sensor with contacts and o-ring 3.68 x 1.78
-
34516670 1 Seal for blood pump
^^^^^^^^^^^^^^^^^^^^^^^^
-
7703708 1 Grease SKD 4002
100 g tube (to lubricate the shaft of the blood pump)
8
4
10
9
1
2
4
6
5
7
8
3
