B. Braun Dialog+ - Rinsing Bridge 4

7. Spare Parts List 1/2010 7 - 43
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx

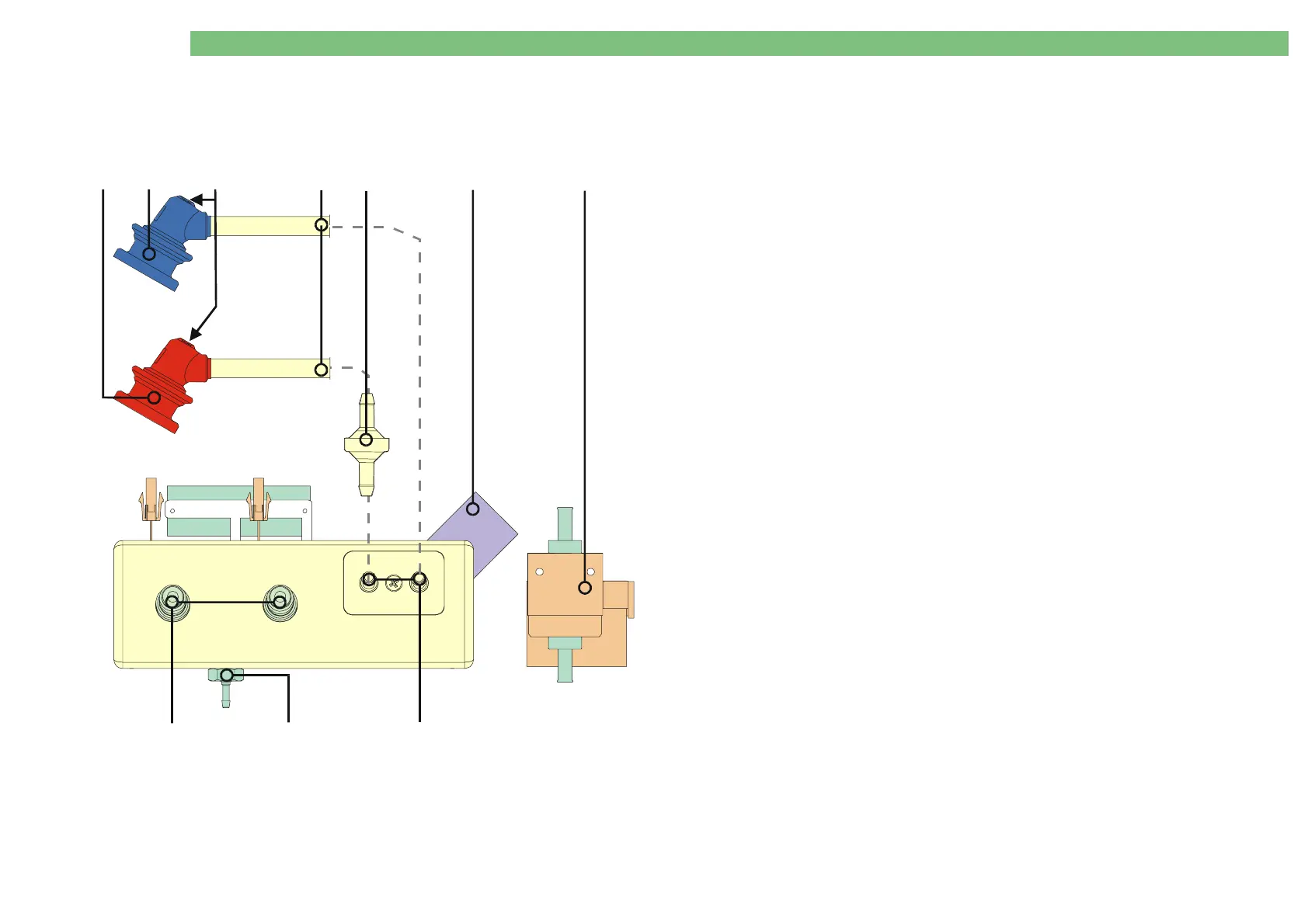

7.9.4 Rinsing Bridge 4
1
3451445A 1 Dialyser coupling, red
2
34990445 5 O-ring 12.37 x 2.62
for dialyser coupling
3
3451446A 1 Dialyser coupling, blue
4
34773550 20 Membrane for dialyser coupling
5
34565191 10m Silicone tubing 5 x 3 (10 m)
6
34517782 5 Disposable filter
7
34560270 1 Solenoid valve 2/2 way
connector/flange (DPP)
8
34770852 5 O-ring 11.1 x 1.6
9
3451908C 1 Blood leak detector 3
replaces version 2
10
34773762 10 O-ring 9.25 x 1.78
11
34517251 1
Tubing connector
∅
3.5 x 1/8"
stainless steel
12
34517294 1 Suction set with tubing, suction port and
black lid
for disinfection
12
34514562 1 Suction set with tubing, suction port and
yellow lid
for disinfection
12
34565272 10m PVC tubing 3.5 x 1 (10 m)
for disinfection
12
34512675 1 Suction port
for suction tubing
13
34511792 1 Tubing coupling
14
34517138 1 Reed sensor with contacts and o-ring 3.68 x 1.78
15
34771255 20 O-ring 14 x 1.5
VD
VDE
1,2
2,3
45
6
7,8
12,11,8
10
15,14,13
9
BL
