B. Braun Dialog+ - Page 418

7. Spare Parts List 1/2010 7 - 44
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
8
7
6
123
4
5
4321

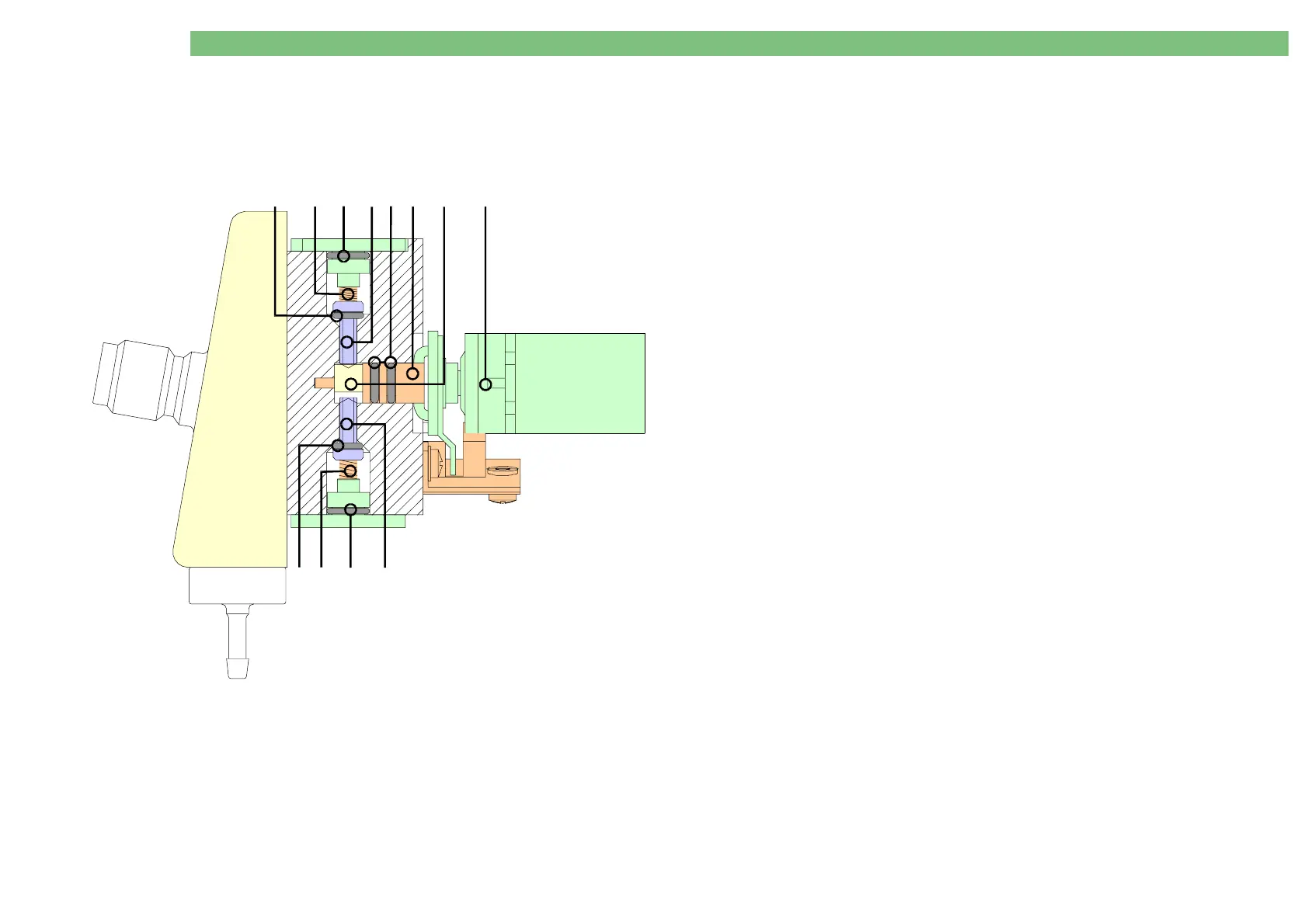

Rinsing Bridge 4
-
3451898B 1 Repair kit disinfection valve
consisting of:
2 x O-ring 2.7 x 1.5
2 x O-ring 5 x 1.6
3 x O-ring 6.4 x 1.3
2 x Cover
4 x Countersunk screw M3x8
2 x Valve tappet
2 x Pressure spring
1 x Eccecntric roller
1 x Eccecntric shaft
for the complete replacement of all
small parts in the disinfection valve
1
34570012 10 O-ring 2.7 x 1.5
for valve tappet
2
34517332 2 Pressure spring
for valve tappet
3
3477106A 5 O-ring 6.4 x 1.3
for cover valve tappet
4
34517324 2 Valve tappet
for VD
5
34570457 10 O-ring 5.0 x 1.6
for eccecntric shaft
6
34560858 1 Eccecntric roller
7
34560840 1 Eccecntric shaft
8
3451659D 1 Servomotor with board
for VD,
servomotor and board must be
exchanged together
