B. Braun Dialog+ - Pressure Reduction

3. Repair Instructions 1/2010 3 - 28
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
3.3.8.13 Pressure Reduction
open
offen
closed
geschlossen
PDA
VDA
UFP
FPE
FPA
VEBK
VDEBK
VABK
VDABK
VBP
VDE
RVDA

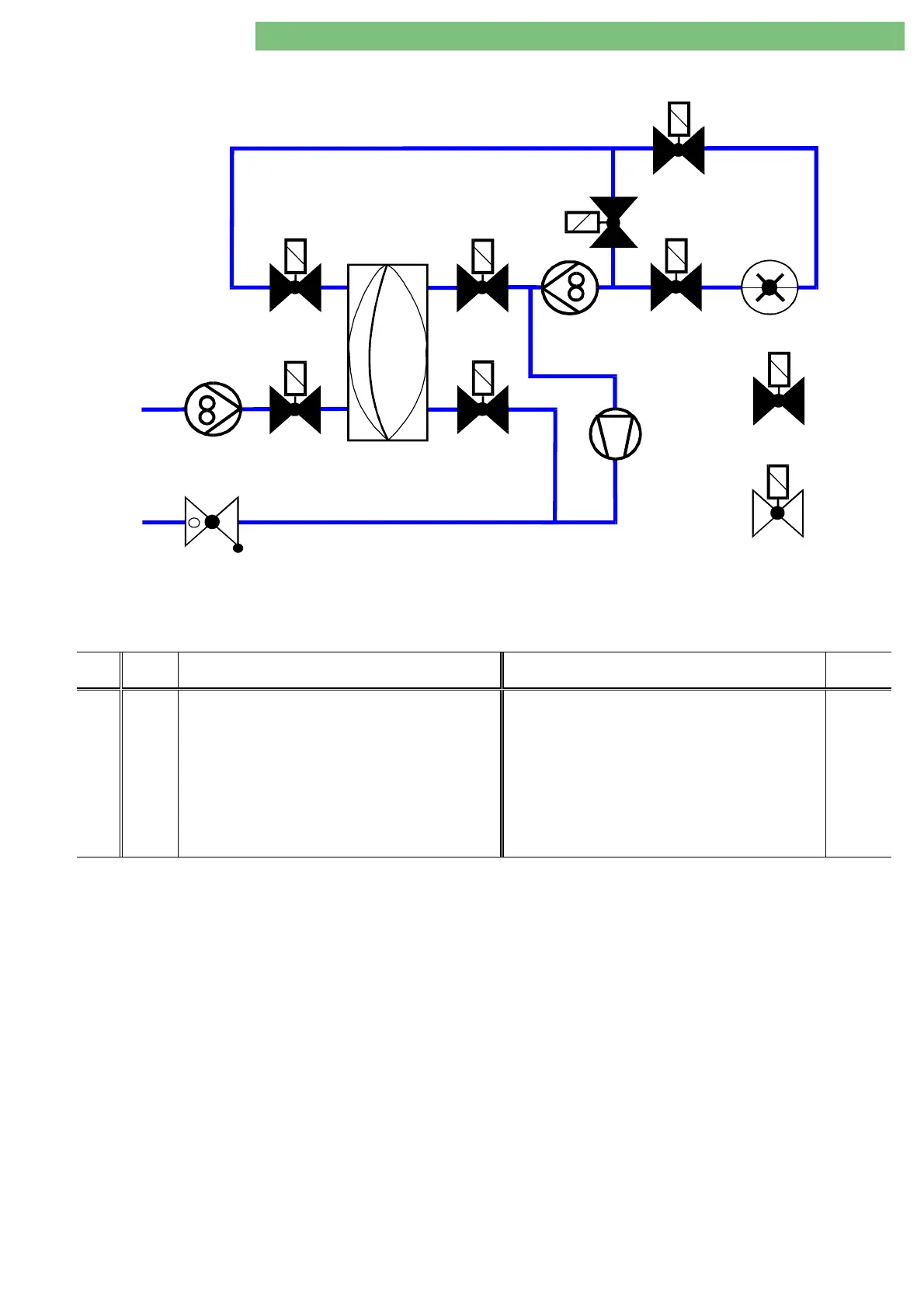

Fig. : Flow Diagram Pressure Reduction
A pressure level is set at PDA between –200 mmHg and +200 mmHg by
opening all valves and driving the pumps accordingly.
LLC Test
Code
LLC Test Steps LLS Test Steps LLS Test
Code
13.
1280x
VEBK test
FPE = 500 ml/min
FPA = 500 ml/min
Valve Status:
VEBK1/2, VDEBK1/2------------------- opened
VABK1/2, VDABK1/2------------------- opened
VBP, VDA, VDE------------------------ opened
Timeout 60 s
12000
