4. TSM Service Program 1/2010 4 - 169
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
4.8.3.25 Gap Arterial Tubing Clamp SAKA/Venous
Tubing Clamp Currentless Closed SAKV-SG
You can calibrate the gap for the arterial tubing clamp SAKA and
the venous tubing clamp currentless closed SAKV-SG.
• Calibration template 1.4/1.5 (art. no. 7702493)
1. Remove cap C (e.g. use a sharp knife to lift out).
2. Close the respective tubing clamp in Manual Test and
Calibration, LL Manual Test, Test 1.5 Tubing Clamps.

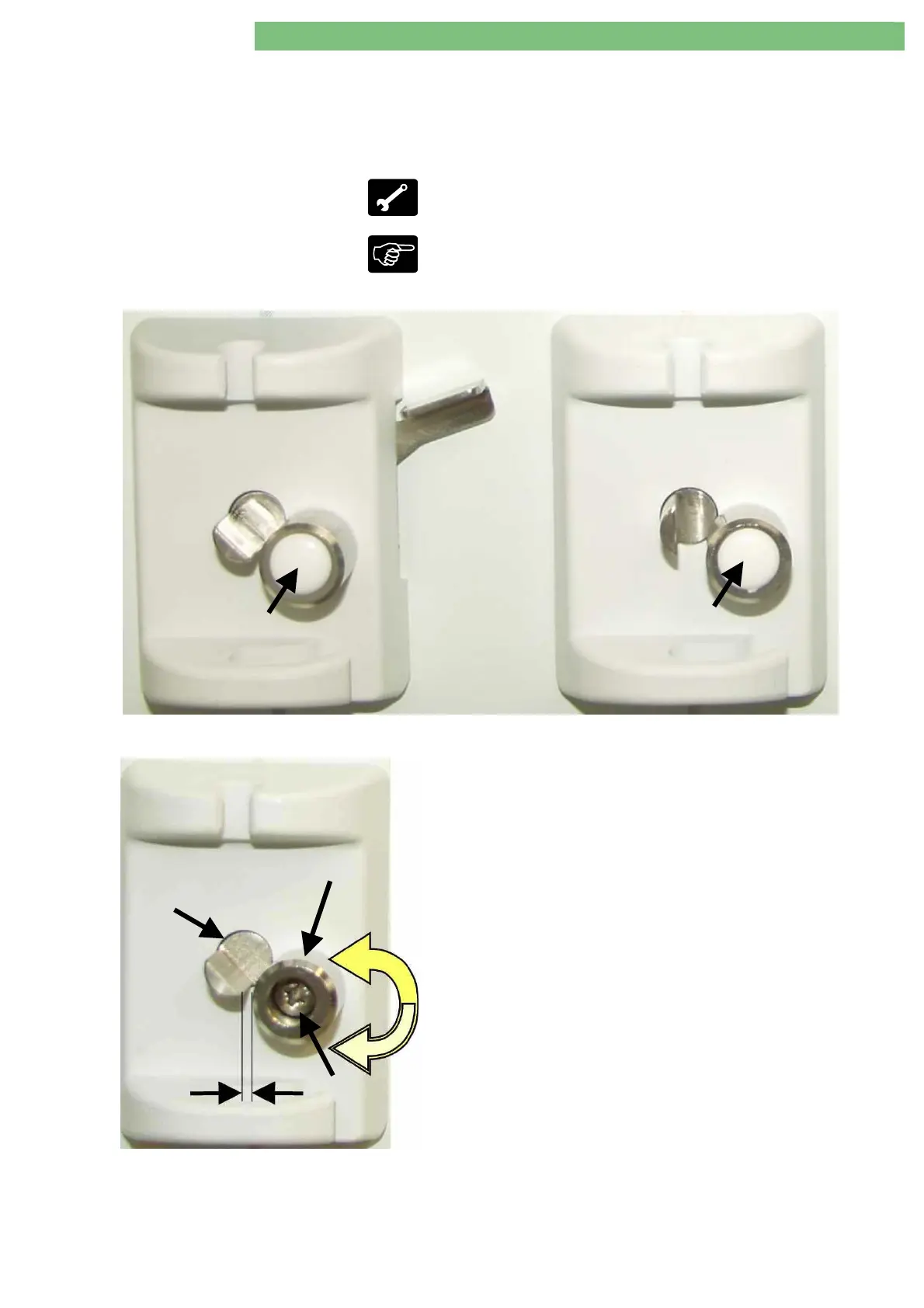

Fig.: Tubing Clamp SAKV-SG Fig.: Tubing Clamp SAKA
Set gap G to 1.4 mm with 1.4 mm template.
3. Loosen screw F.
4. Push 1.4 mm template between clamp D and eccentric cam E.
5. Rotate eccentric cam E until 1.4 mm is set.
6. Tighten again screw F
Note
The 1.4 mm template fits through the gap.
7. Check wit the 1.5 mm template.
Note
The 1.5 mm template must not fit through the gap.
8. Reassemble cap C.
G
A
D
E
F
B
C
C
