4.6.2 Dialog Version Number

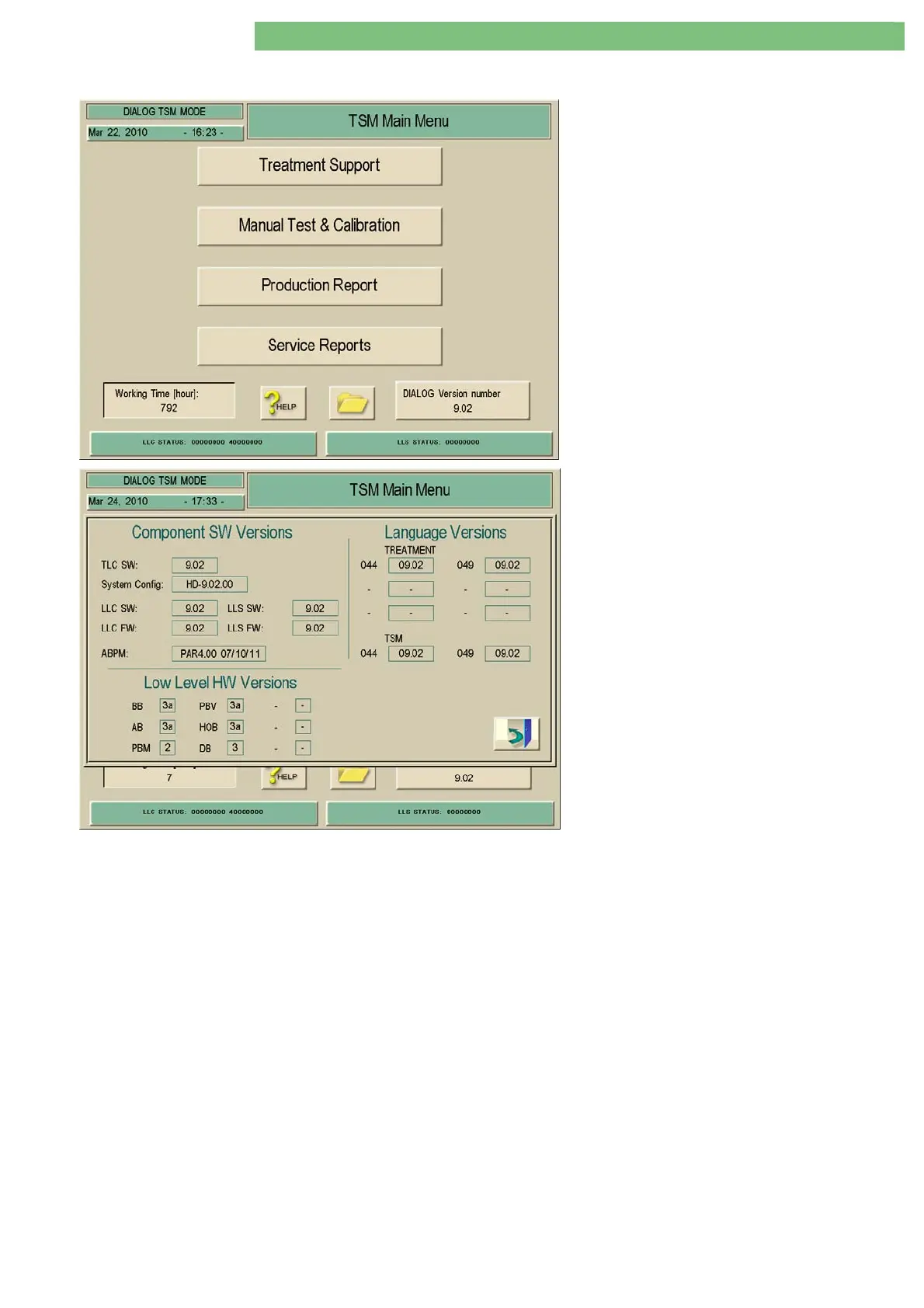

The Dialog Version Number menu is selected with
the Dialog Version Number window in TSM Main
Menu. The current software/firmware versions are
displayed. This menu can also be selected in the
Production Report.
The following data can be checked:
Component Software Versions
The versions for the installed software/firmware
are displayed.
• Top Level Controller Software TLC SW
• System Configuration
(displays the system configuration version
number for the haemodialysis machine)
• Low Level Controller Software LLC SW
• Low Level Controller Firmware LLC FW
• Low Level Supervisor Software LLS SW
• Low Level Supervisor Firmware LLS FW
• Automatic Blood Pressure Measurement ABPM
(firmware for the ABPM module is displayed)
Language Versions
The installed languages are displayed.
• Treatment
• TSM
Low Level Hardware Versions
The boards are displayed with the respective
hardware versions, e.g. a HDF online machine. The
displayed HW versions depend on the assembled
boards in the machine.
• Basic Board BB
• Analog Board AB
• Power Board Motors BPM
• Power Board Valves BPV
• HDF Online Board HOB
• Digital Board DB
