B. Braun Dialog+ - Page 289

4. TSM Service Program 1/2010 4 - 120
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
EP
VEB
VZ
DMV
VVBE
WT
H
NSVB
WAB
PE
EP
V
Z
TSE
TSHE
DMV
V
VBE
FEP

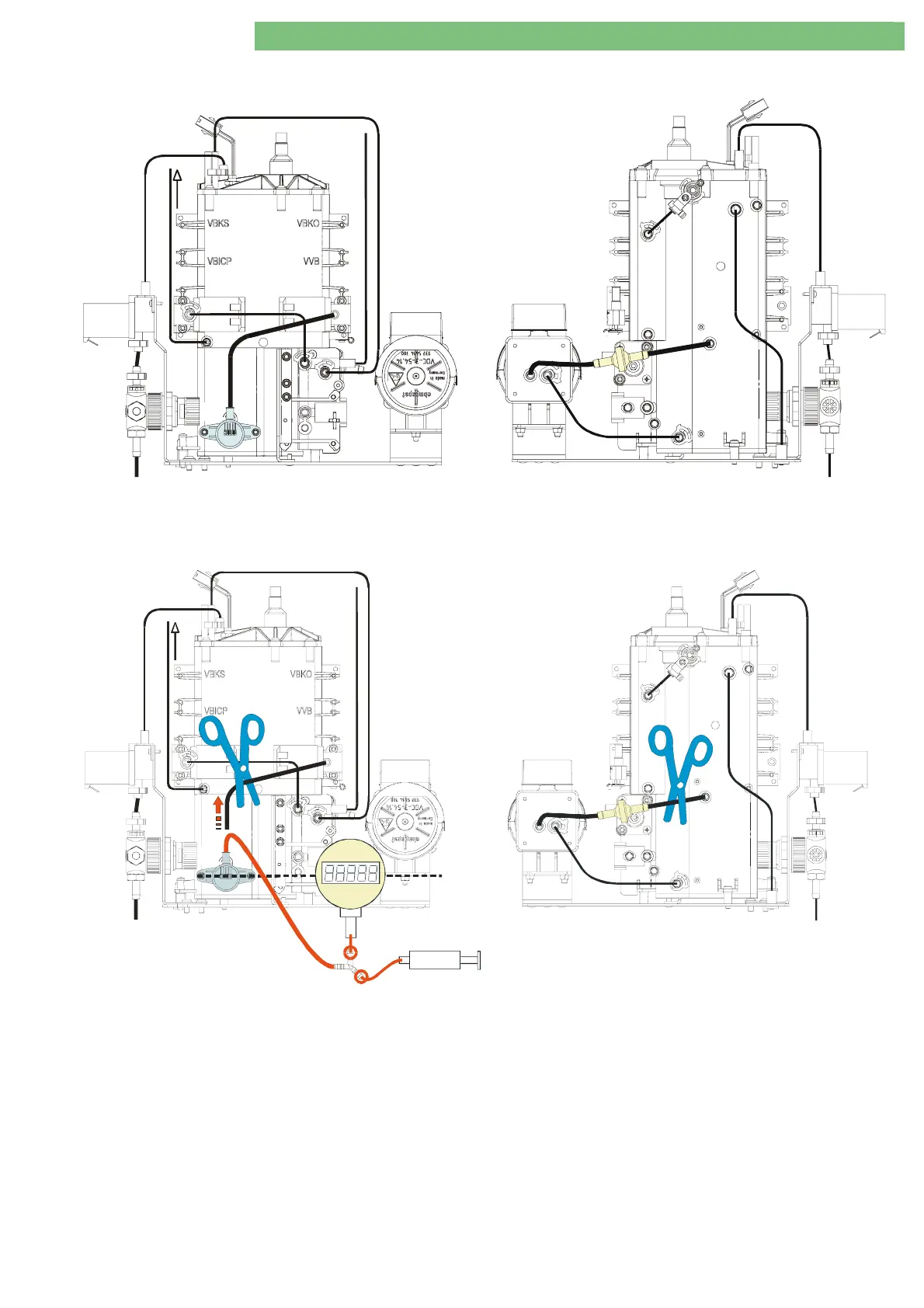

Fig.: Original Tubing Water Sub-Rack (rear view) Fig.: Original Tubing Water Sub-Rack (front view)
EP
VEB
VZ
DMV
VVBE
WT
H
NSV
B
WAB
PE
A
Fig.: Water Sub-Rack with Loop-In for Manometer at PE and Tubing
Clamp at VEB (rear view)
EP
VZ
TSE
TSHE
DMV
VVBE
FEP
Fig.: Water Sub-Rack with Tubing Clamp between FEP and EP (front
view)
