B. Braun Dialog+ - Page 298

4. TSM Service Program 1/2010 4 - 129
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx

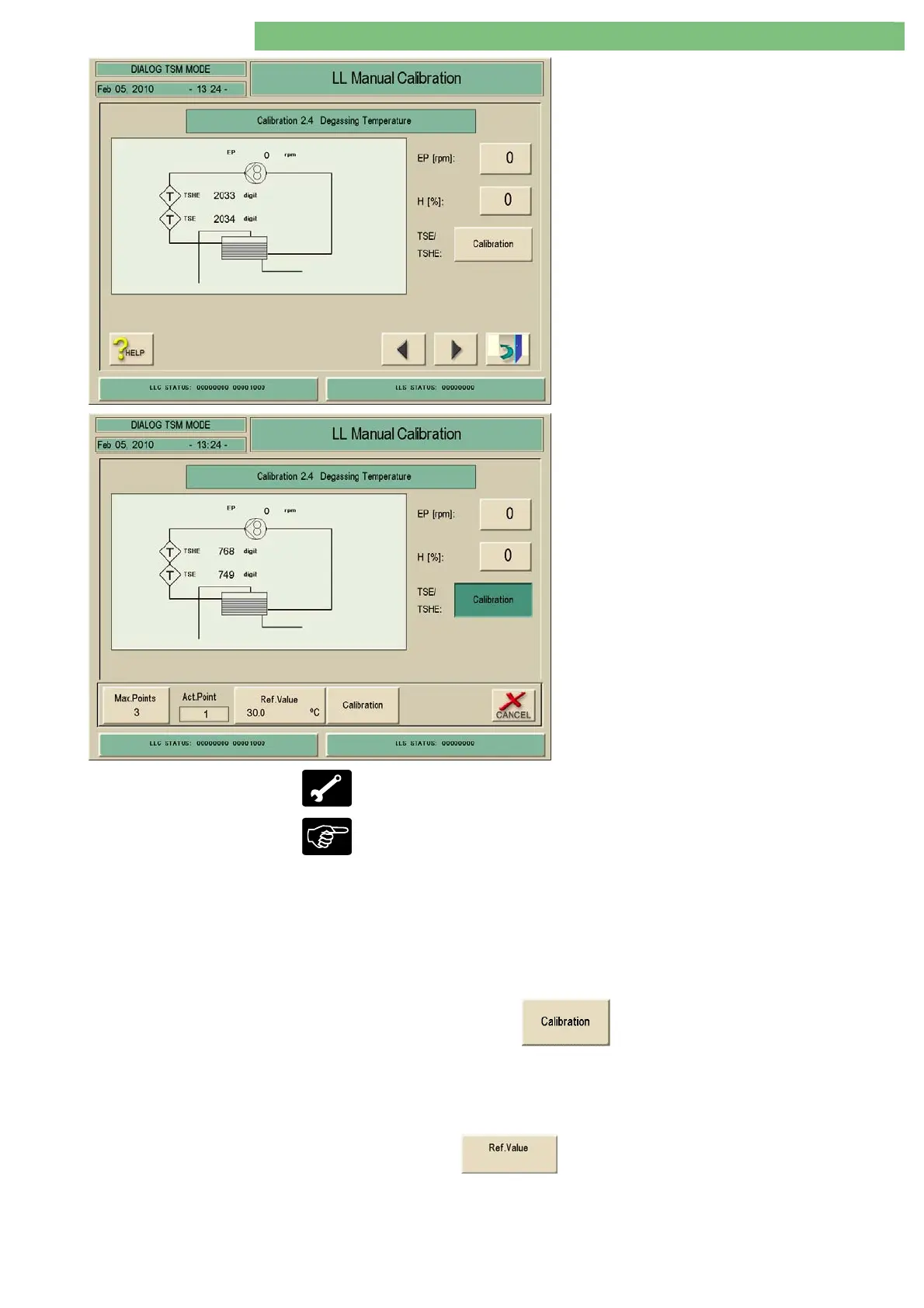

1. Activate the LL Manual Calibration menu with
the LL Manual Calibration key in the Manual
Test and Calibration menu.
2. Activate the Degassing Temperature menu by
pressing on the line Calibration 2.4 Degassing
Temperature. The following menu is displayed.
• Temperature measurement instrument (e.g. HDM 99 or equivalent)
• Adapter set (coupling/tubing/dialyser couplings)
3. Position the heater inlet temperature sensor TSHE (on the water sub-rack)
next to TSE (see previous page).
4. Connect the adapter set between the heater inlet temperature sensor
TSHE and water block WAB.
Note: Pay attention to correct flow direction of temperature sensor TSHE.
5. Connect temperature measurement instrument to adapter set.
6. Set degassing pump EP to 1800 rpm.
7. Press TSE/TSHE
key.
TSE/TSHE Calibration Point 30
o
C 8. Increase heater power (in %) slowly, until a stable temperature value of
30
o
C (±2
o
C) is displayed at the temperature measurement instrument.
Wait until temperature is stable, i.e. 0.1
o
C for at least 10 s.
9. Press
key.
10. Enter the stable value from the temperature measurement instrument as
reference value.
