4. TSM Service Program 1/2010 4 - 136
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
Calibration Temperature Sensors The temperature sensors TSBIC/TSD/TSD-S must be calibrated prior to the
calibration of the conductivity sensors BICLF/ENDLF/ENDLF-S (in menu LL
Manual Calibration, Calibration 2.5 Dialysis Temperature).
Measurement of the Temperature
and the Conductivity
The measurement sensor for temperature and conductivity of the measurement
instrument is connected between FPE and the inlet to the balance chamber at
FBK1 (see figure).
Measurement of the Flow
Connect the dialyser couplings to the flow sensor.
D
BICLF
TSBIC
RVFPE
FPE
RVK
RVB
BICP
8
T
KP
ENDLF-S
ENDLF
TSD
TSD-S
blue
red
VEBK1/2
T
T
Measurement
Sensor
Measurement
Instrument
C
mS/cm
o
ml/min
FBK1
blue
red

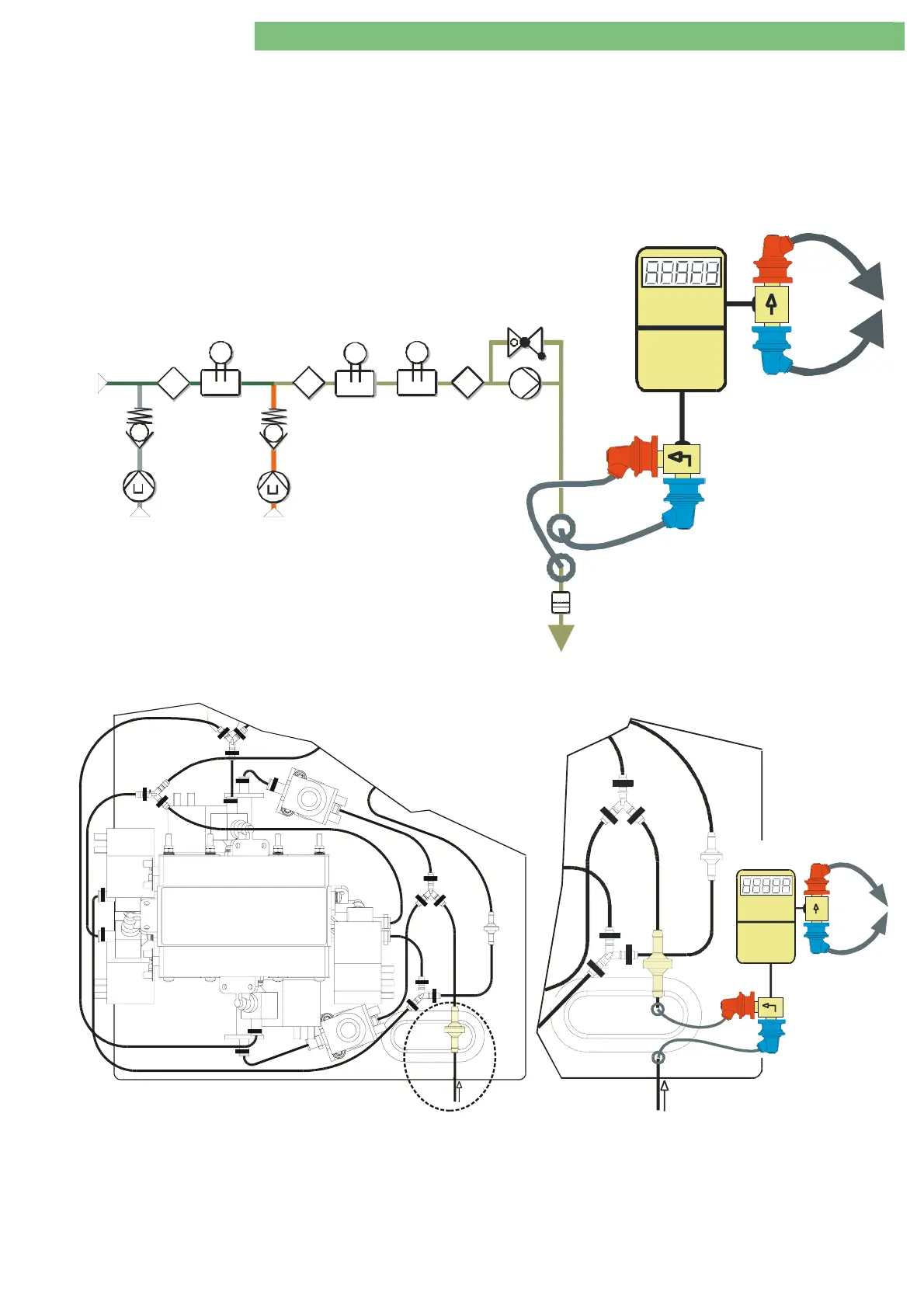

Fig.: Dialysate Preparation
FBK2
FBK1
VEBK2
VDEBK2
VDABK1
VABK2
VDEBK1
VEBK1
FPE
D
FBK2
FBK1
FP
blue
red
Measurement
Sensor
Measurement
Instrument
C
mS/cm
o
ml/min
blue
red
Fig.: Original Tubing UF Sub-Rack with FBK1 Fig.: UF Sub-Rack with Loop-In Point for BICLF, ENDLF and
ENDLF-S Calibration
