6. Assemble servomotor B.

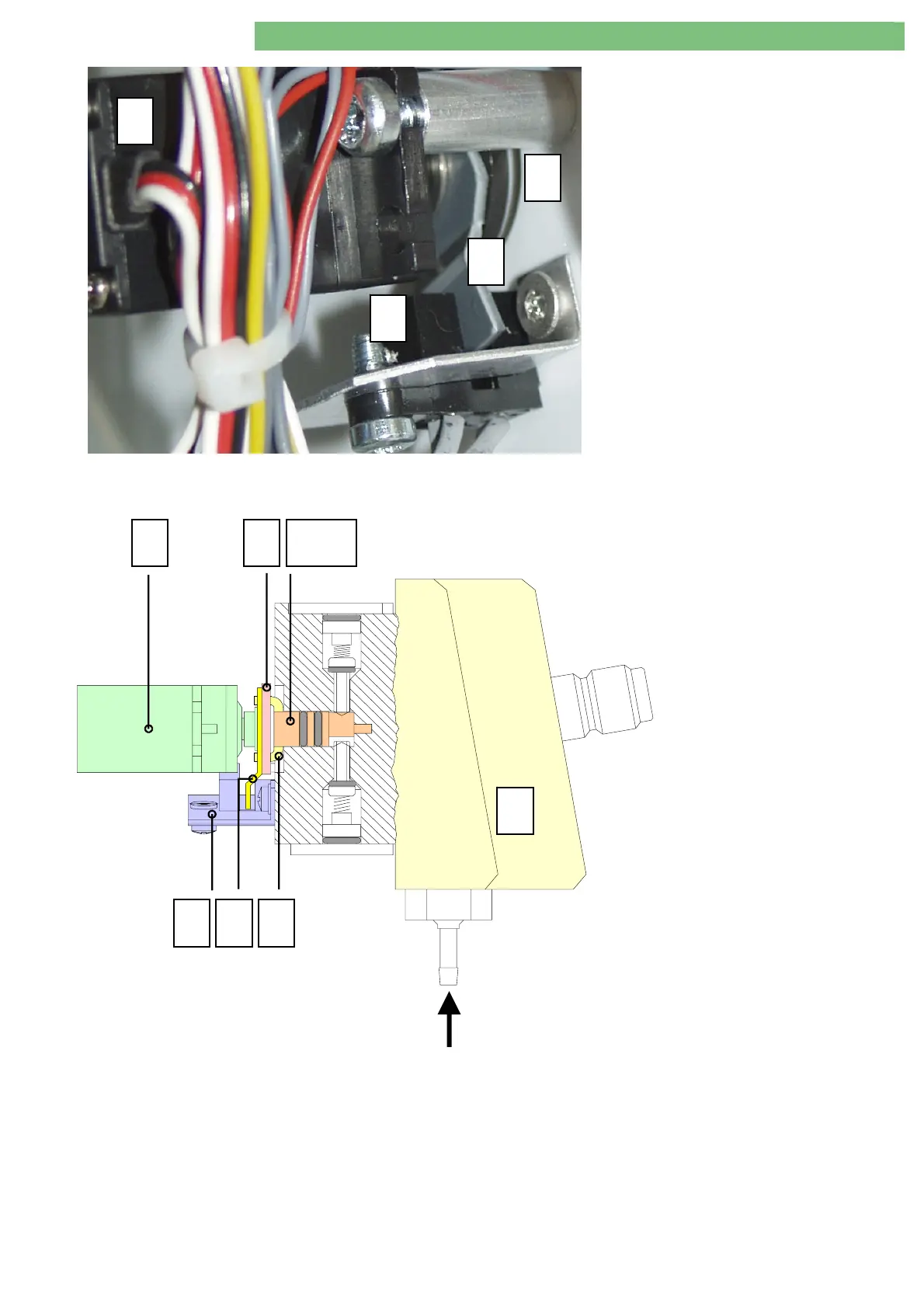

The position tag C of the servomotor B is
seated in the light barrier D. The bow G
(not visible) is seated in the groove F of
the eccentric axle.
7. Plug in connector to disinfection valve
board matching with the motor.
8. Check function of the disinfection valve
(position tag C in light barrier D).
B Servomotor
C Position tag
D Light barrier
E Bevel on eccentric axle
F groove
G Bow (only partly visible, is
seated in the eccentric
groove)
H Control disc
I Rinsing bridge
B
C
D
H
D
H
E/F B
C G
I
Draw-Up of
Disinfectant
