7. Spare Parts List 1/2010 7 - 8
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
EP
RVDA
WAB
H
WT
VEB
FEP
TSE
TSHE
NSVB
1a
1b
10
8
2
34 5
6,7
9

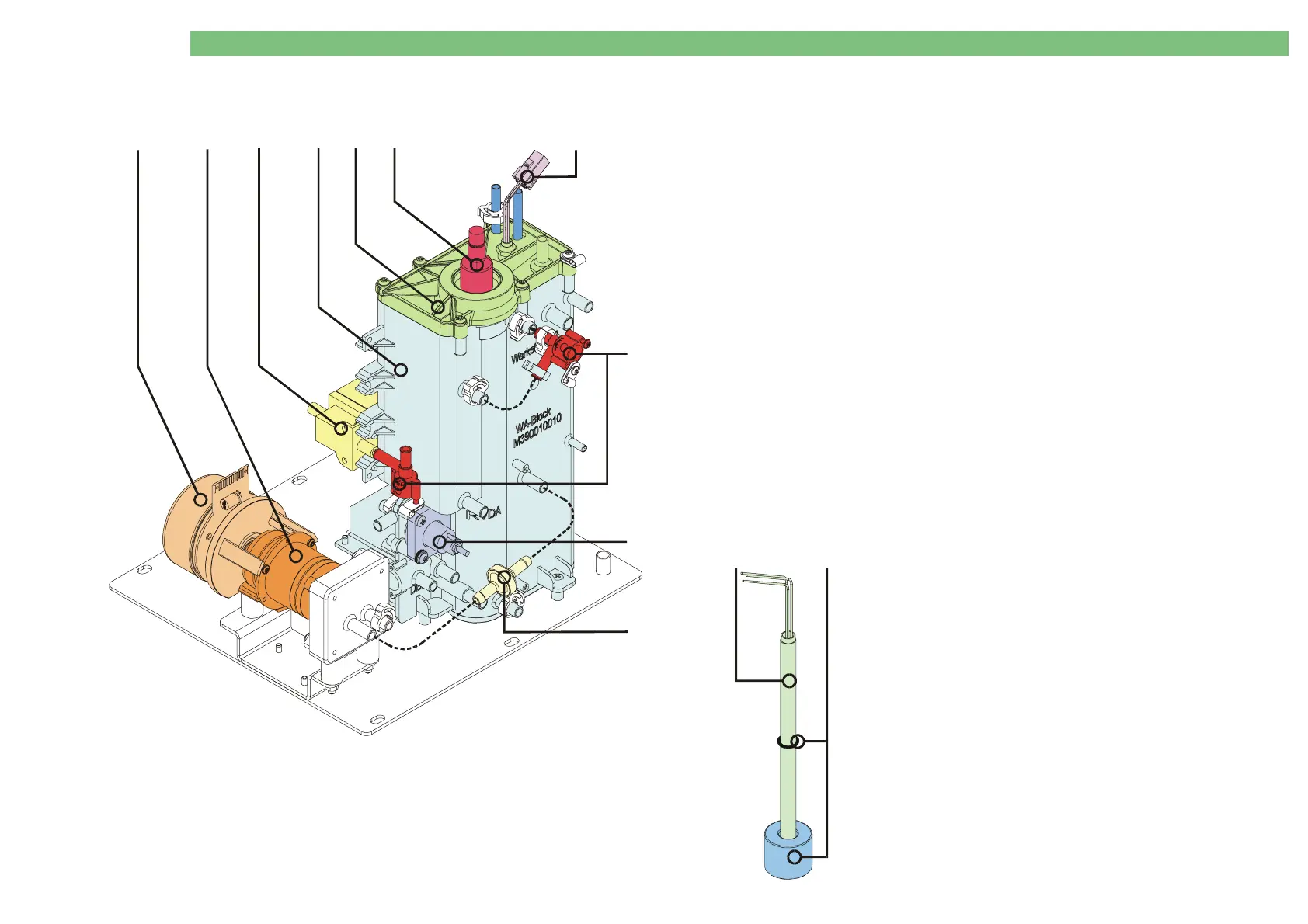

7.3 Water Sub-Rack
1a
34560718 1 Motor for gear pump (SW 1.7.4)
see separate figure
1b
34560319 1 Gear pump (Micropump version 2)
with magnet, without motor
version 2 for EP only
is shown without motor cover
1
34770950 20 O-ring 8.0 x 1.6
2
34560386 1 Solenoid valve 2/2 way with bypass
3
34561315 1 Water block without lid
4
34561323 1 Lid for waterblock
5
3456021A 1 Heater element 120 V/2x900 W
incl. two seals
5
3456020A 1 Heater element 240 V/2x900 W
incl. two seals
6
34560459 1 Level sensor complete
with float ball
7
34560246 1 Float ball incl. o-ring
8
3451614B 1 Temperature sensor
without connector
8
34570730 1 Housing complete for temperature sensor
9
3451727B 1 Throttle 0.4 bar
10
3451664B 1 Throttle 1.3 bar
für HDF-Online
11
34517782 5 Disposable filter
67
