7. Spare Parts List 1/2010 7 - 31
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx

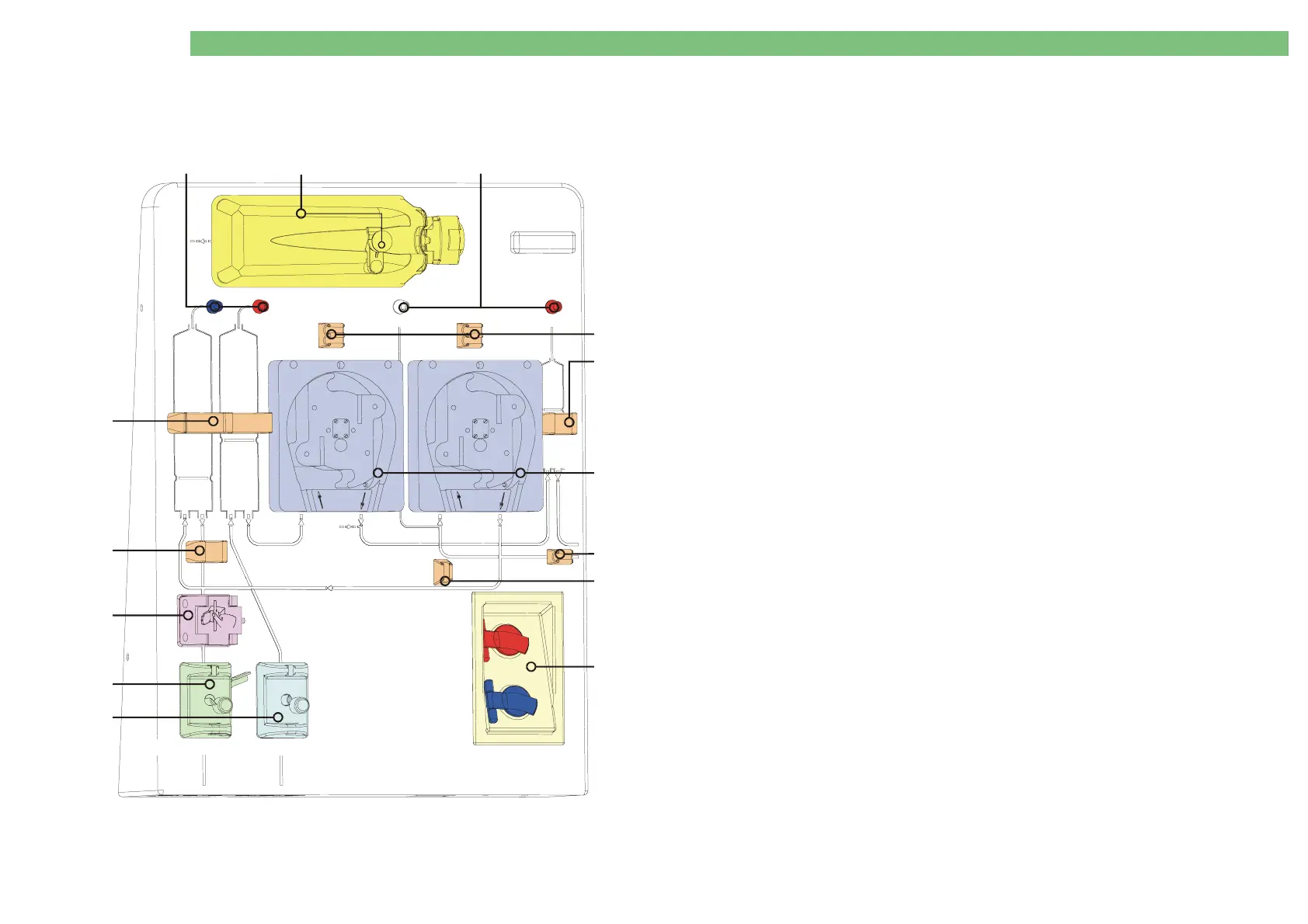

7.8 Front Door
1
34516352 1 Pressure sensor
see also position 24
2
3457058A 5
Manometer connection (white), for PBS/SN
with plastic nut A and
2
3451833A 5
Manometer connection (red), for PA/PBE
safety disc B (pay attention to
2
3451884A 5
Manometer connection (blue), for PV
correct assembly, see left figure)
5
3451432B 1 Heparin pump Compact
5
34560785 1 Housing with seal
5
34514732 1
Syringe holder
5
34570640 5
Dummy plug
5
34570667 1
Clamp
5
34570659 1
Unlocking lever set
6
34570535 1
Single tubing holder
∅
6.8 mm
7
34570543 1
Double tubing holder
∅
6.8 mm
8
34570527 1
Single holder, small
9
34560793 1
Blood pump without roller
see separate figure
9
34561331 1
Pump head with cover
9
34560947 1 Drive unit for blood pump (SW 1.7.4)
9
34560807 1
Roller 8x12 for blood pump
x
9
34570616 5
Latch
9
3451669E 1 Cover for blood pump
without hinge pin (see separate figure)
9
34560025 1
Magnet
∅
5 mm
for cover
9
34560033 1
Metal disc
∅
10 mm
for cover
9
34519823 1 Hinge pin with interior thread
hinge pin
9
34516670 1 Seal for blood pump
PV PA PBS/SN PBE
SN SN
PBA PBV
SAD
HP
SAKA
SAKV-SG
1,2 5 1,2
6,7
9
8
6,7
10
11
12
13
14
8
16
15
