B. Braun Dialog+ - Page 421

7. Spare Parts List 1/2010 7 - 47
Pos. Art. No. Qty. Description Comments
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
B. Braun Avitum AG
Dialog
+
SW 9.xx
TFT Monitor
5

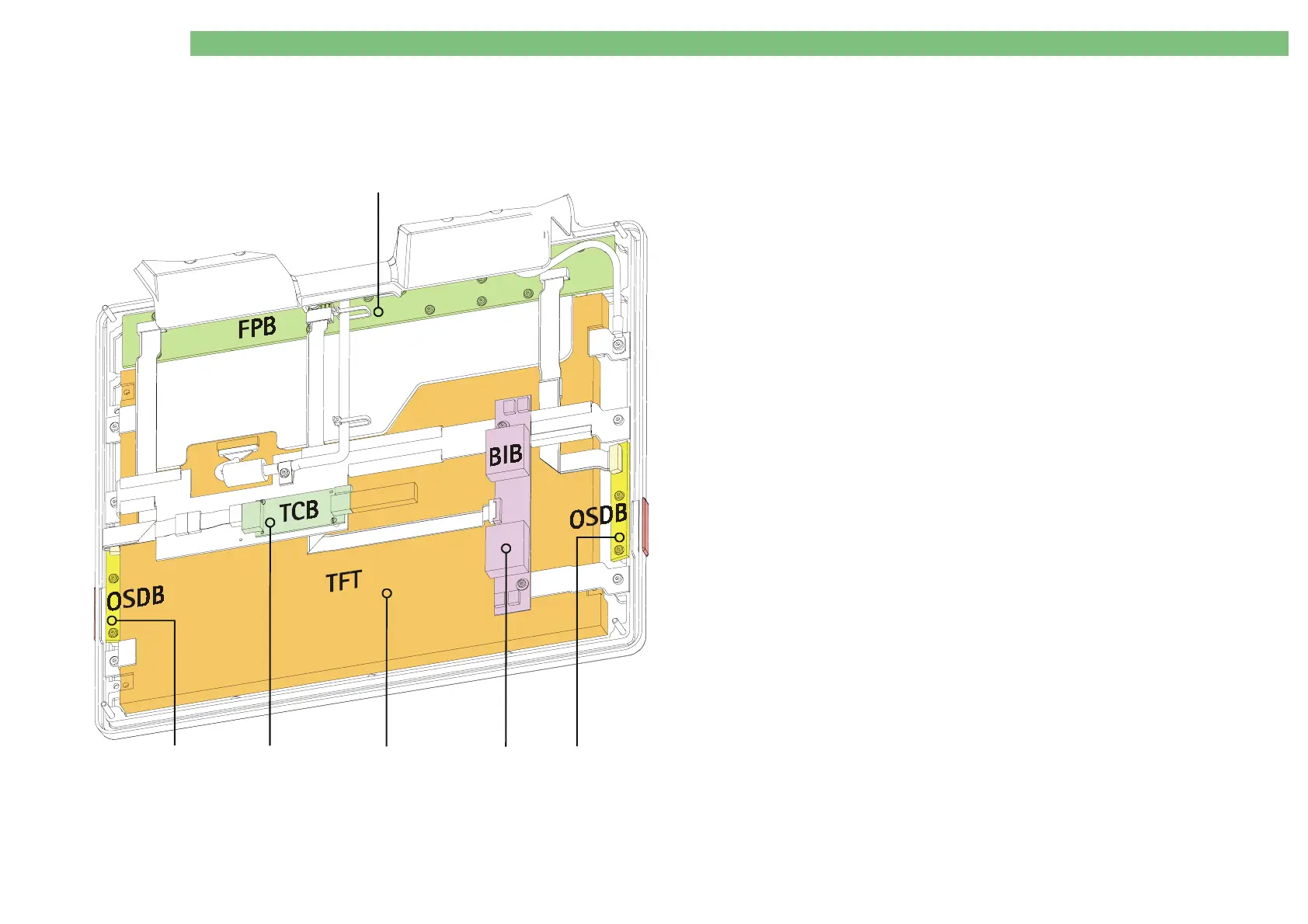

3451428A 1 Front panel board FPB
6
3451429A 1 Optical status display board OSD
7
34514686 1 Backlight inverter board BIB for Boe Hydis TFT
8
3451463B 1 TFT display 15“ (Boe Hydis or Samsung)
9
3451460A 1 Touch controller board TCB version 3
-
34560912 1 Ribbon cable 12 pin FPB - OSD
-
34560971 1 Ribbon cable FPB - BIB
5
6
78
6
9
