Valve Regulated Lead-Acid Battery: Fuse: CAUTION: 7Ah, 24 Volt
T 10 A, IR UL 1500A / 150 VDC
See service manual before
battery or fuse replacement.

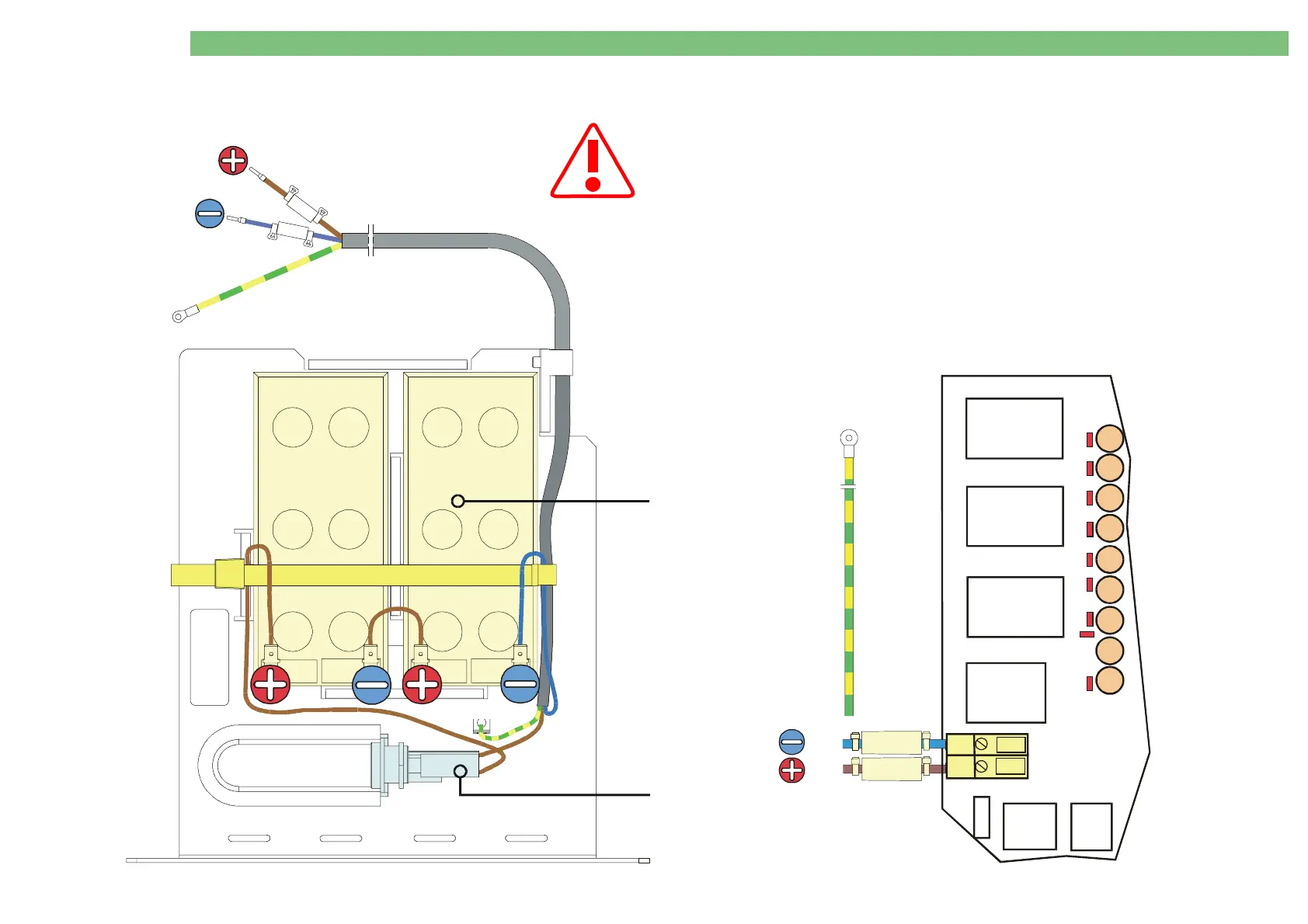

7.20.1 Battery Sub-Rack
If a battery must be replaced exchange the complete battery set!
Prevent shorts in the battery compartment during disassembly and assembly:
Please pay attention to the correct disassembly/assembly sequence during the connection and
disconnection of the batteries.
Connection
1. Connect (+) terminal (brown).
2. Connect (-) terminal (blau).
3. Connect ground terminal (green/yellow).
Disconnection
1. Disconnect (-) terminal (blue) abziehen.
2. Disconnect ground terminal (green/yellow).
3. Disconnect (+) terminal (brown).
1
34561250 1 Battery (rechargeable) set
12 V/7 Ah, incl. cable ties
2 x battery (rechargeable) 12 V/7 Ah
2
34570721 10 Fuse T10 A (5 x 20 mm)
