6. GUI orientation

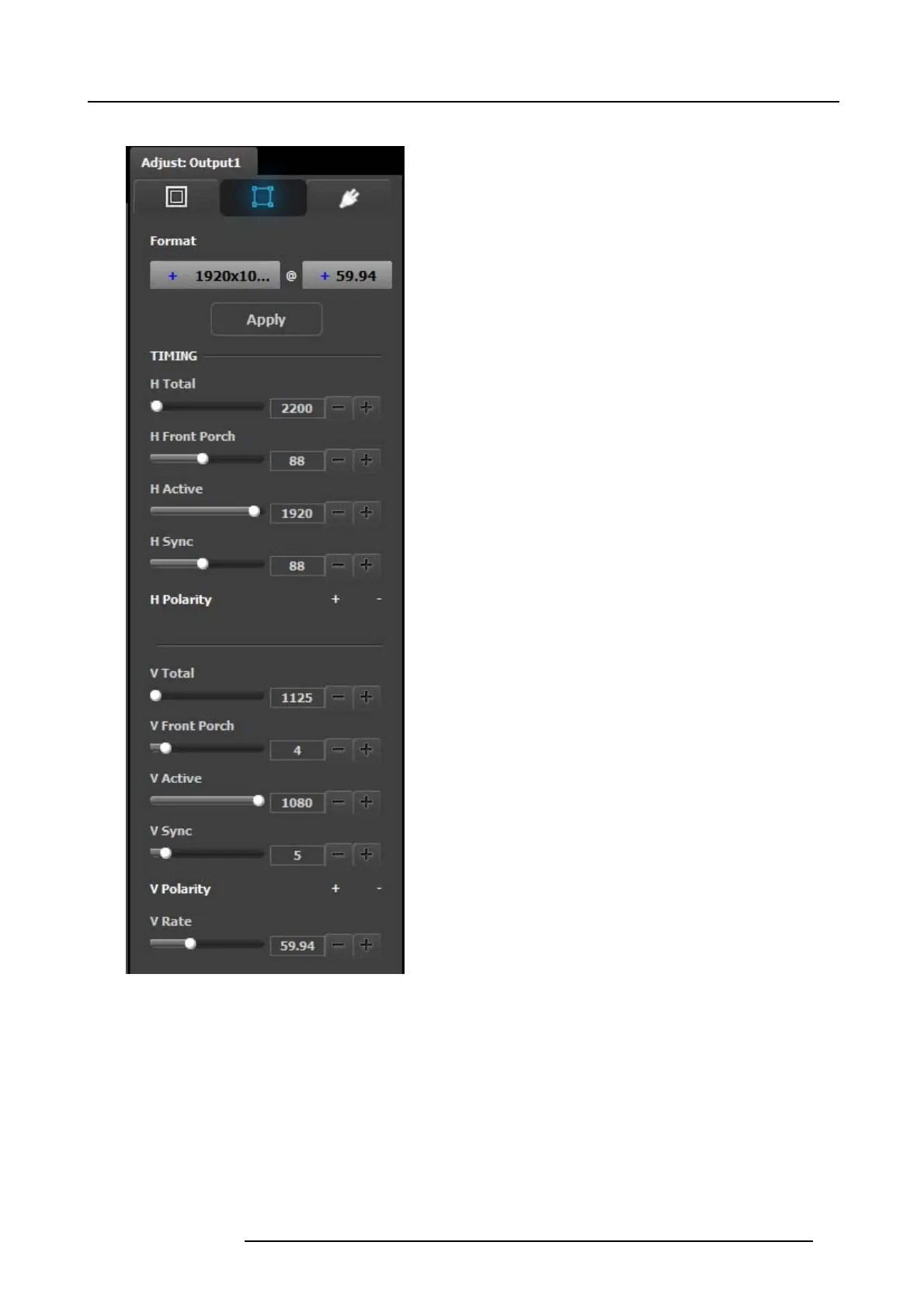

Output adjustment panel > Timing Menu

• Format: Selects the video format of the o utput conﬁguration

from the drop menu. This is the same adjustment as in the

previous menu.

• H Total: Adjusts (in pixels) the total p ixel count per line for

the selected output.

• H Front Porch: Adjusts (in pixels) the offset between the

end of the o utput ac tive area and the beginning of H sync.

• H Active: Adjusts (in pixels) the horizontal s ize of the output

active area.

• H Sync: Adjusts (in p ixels) the H sy nc width.

• H Polarity: Adjusts the polarity (a ctive High or Low) of the

horizontal s ync pulse (N /A in SDI).

• V Total: Adjusts (in lines) the total line count per frame.

• V Front P orch: Adjusts (in lines) the offset between the end

of the output active area and the beginning of V sync.

• V Active: Adjusts (in lines) the vertical size of the output

active area.

• V S ync: Adjusts (in lines) the V s ync width.

• V P olarity: Adjusts the p olarity (ac tive High or Low) of the

vertical syn c pulse (N / A in SDI).

• V Rate: Adjusts the f rame rate in seconds polarity (active

High or Low) of the vertical sync pulse (N/A in SDI).

R5905948 E2 12/12/2014
