9. General operation example

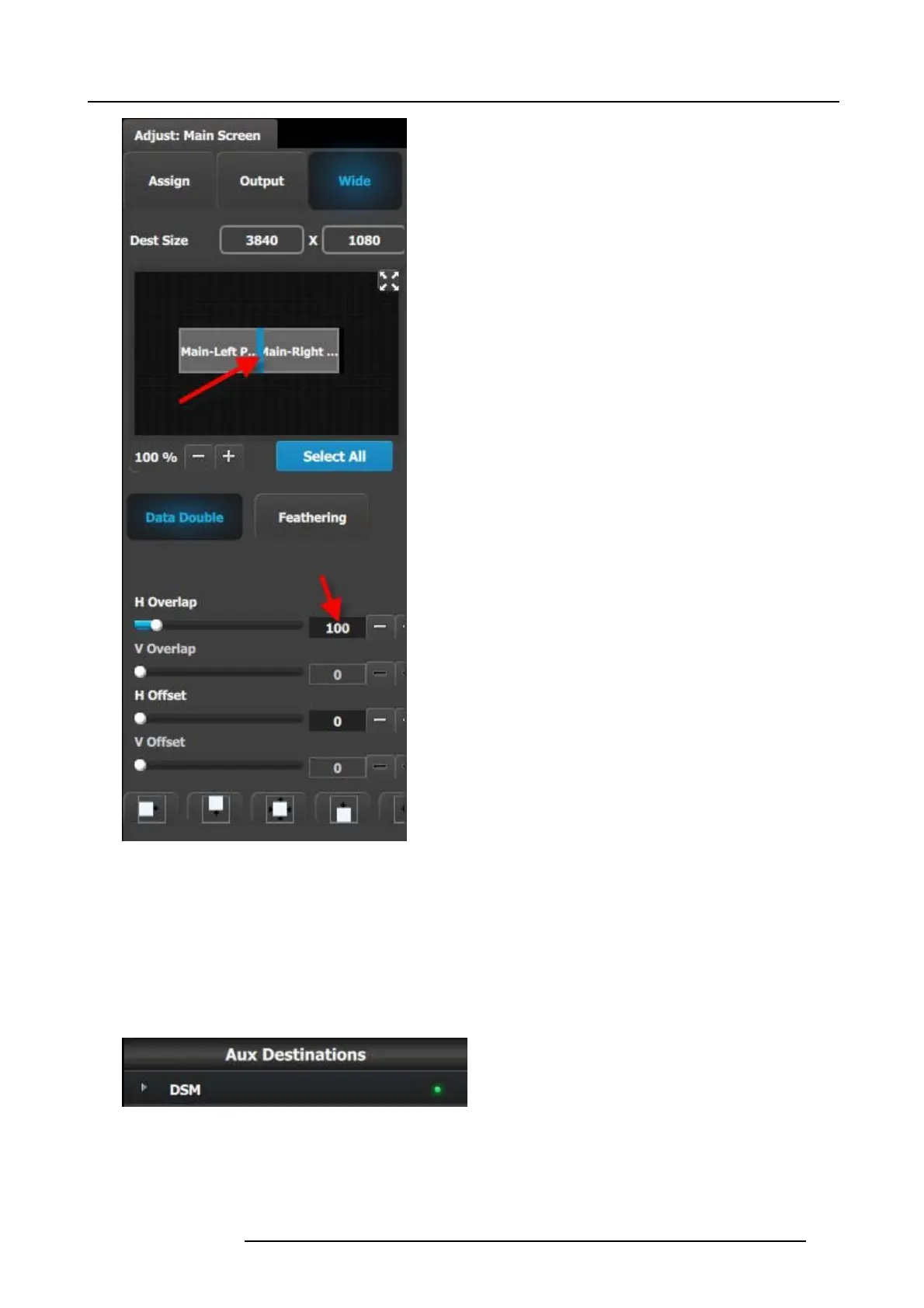

Image 9-9
C6: Add Aux Destinations
1. From the diagram area click on the DS M o utput. The connec tor will be highlighted.
2. Click on the + Add Aux De s tin a tion blue button to assign the D SM output to an A ux destination.
3. When the Aux destination is created a box appears next to the E 2 diagram.
4. Double click on the Destination1 area in the Nam e list to edit the name.
5. When the area turns blue, click the eraser icon to clear the field.
6. Type a new name, “DSM”. Hit enter when done.
Image 9-10
C7: Add MVR Output
1. Click on the MVR tab to select the M VR outputs that will be defined.
2. Click on the +Add MVR Output blue button to enter the Add m ode.
