6. GUI orientation

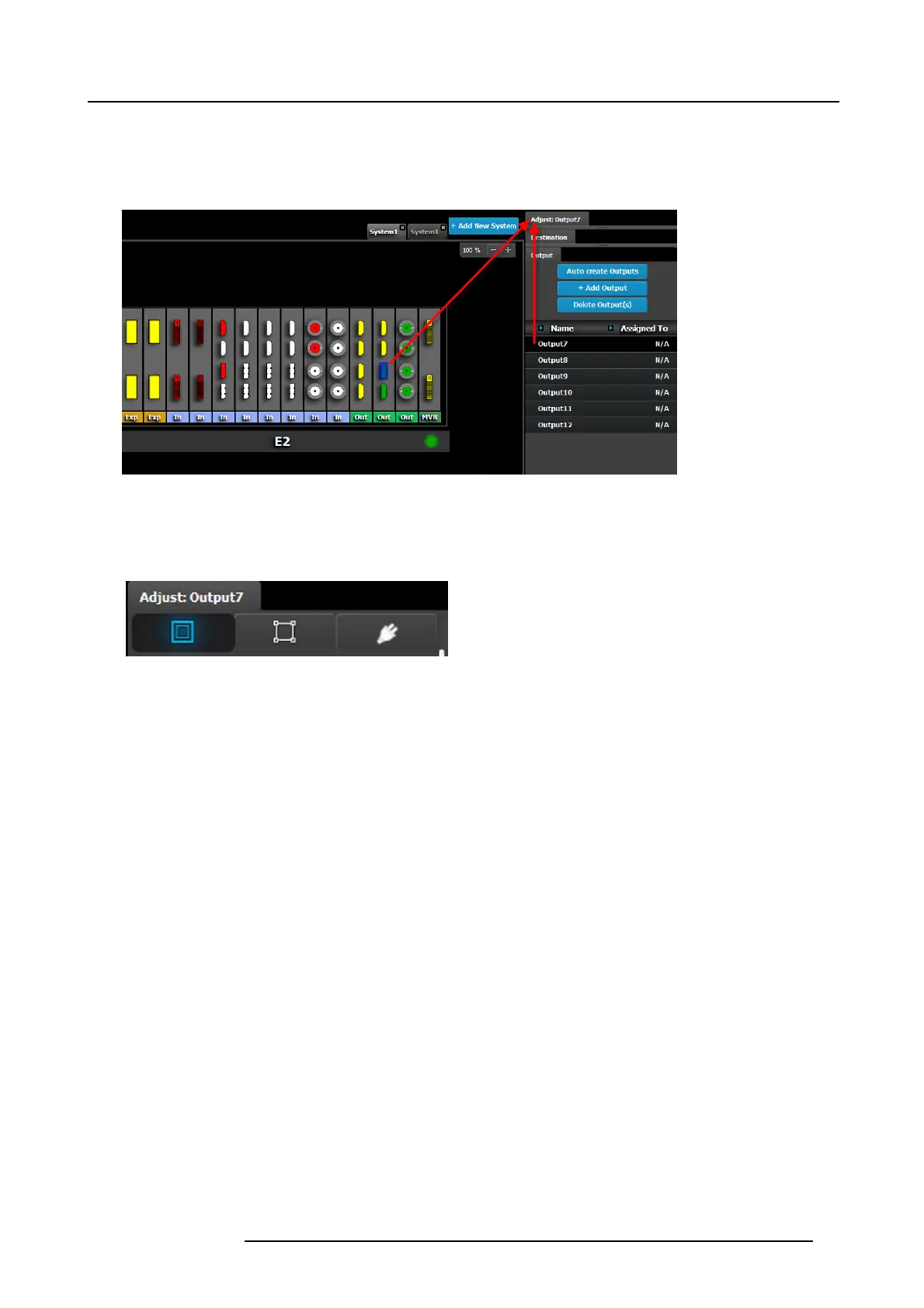

Or,
clicking on the connector graphic.
An output is selected.
2. Click on the Adjust tab that is on the top of the Adjustment area.
Image 6-26
The output adjustment panel is display ed.
Output adjustment panel description
The output adjus tment pa nel is divided in three s ections
• Main p age
• Format & Timing
• Connector
