Comen N10 - Preparations for Sidestream CO Sensor Connection; Preparations for Sidestream CO Plug-In Module

CO
2
Monitoring
15-5

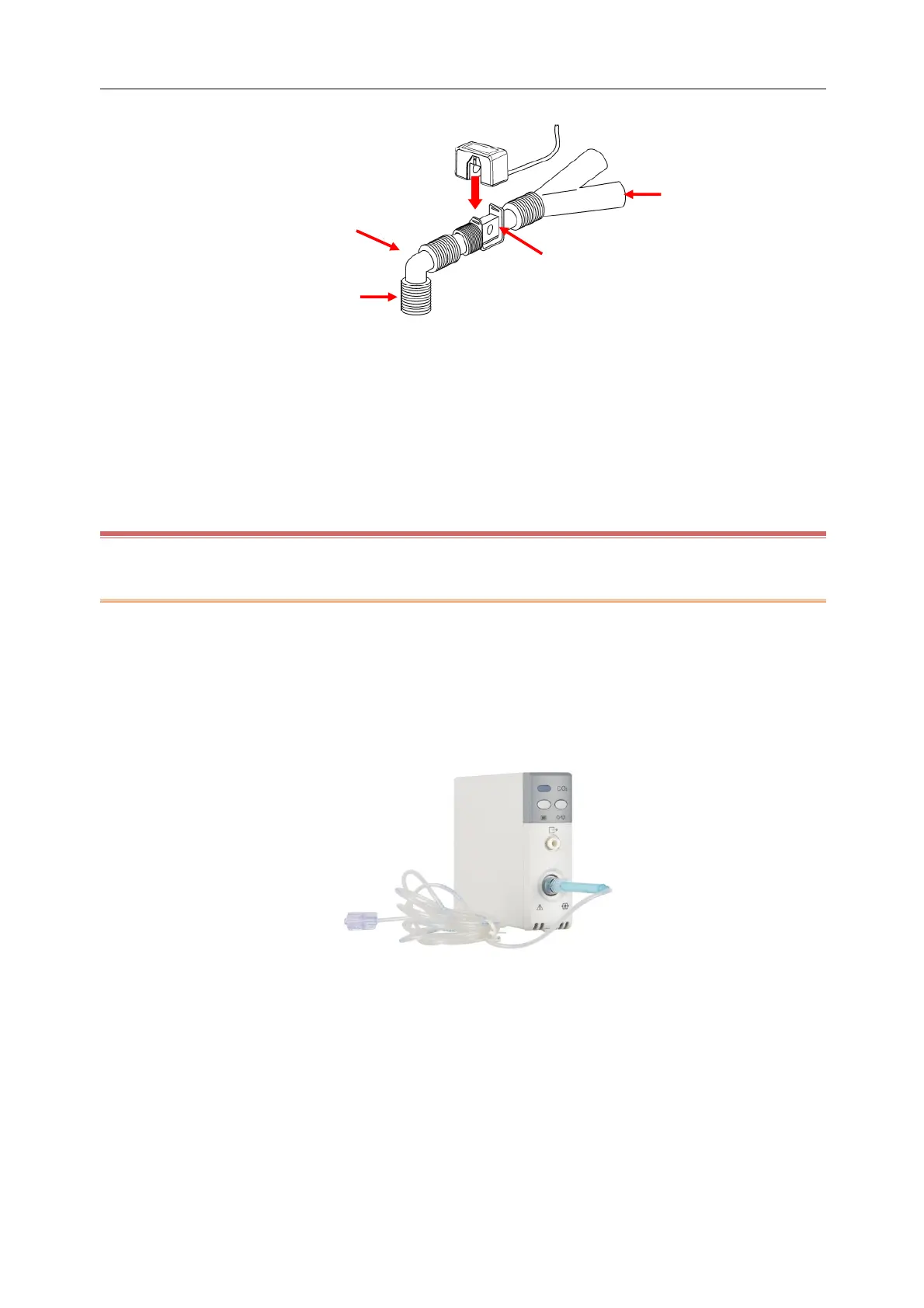

(1) Elbow tube (2) Y-shaped tube (3) Airway adapter (4) Respiration circuit port
6) Make sure the gas pathway is connected securely and is without leaks.
7) Set CO
2
measurement; please refer to “Section 15.7 CO
2
Setup” for more information.
8) Start measurement.
15.5.2 Preparations for Sidestream CO
2
Sensor Connection
15.5.2.1 Preparations for Sidestream CO
2
Plug-in module
1) Insert the plug-in module to the monitor's interface.
2) Wait for 10s (Masimo CO
2
module) or 2min (Respironics and COMEN CO
2
module) until the sensor reaches its
working temperature and a stable thermal state.
3) Insert the sampling line into the interface of the CO
2
module securely until you hear a "click" sound, shown in
the figure below.
4) Zero the CO
2
sensor; please refer to " Section 15.6 Zeroing the CO
2
Sensor " for more information.
5) Pre-use checks are necessary for Masimo sidestream sensor; for more information, please refer to " Section
15.5.3 Checks before Use for Masimo CO
2
Module ".
6) Set CO
2
measurement; please refer to "Section 15.7 CO
2
Setup" for more information.
7) For patients with tracheal cannula: install the airway adapter onto one end of the respiration circuit, such as
between the elbow tube and the Y-shaped tube, shown in the figure below:
(1)
(3)
(2)
(4)
