Comen N10 - Preparations for Respironics Sidestream CO Module (Other than Plug-In Module)

CO
2
Monitoring
15-6
(1) Sampling line (2) Y-shaped tube (3) Airway adapter (4) Respiration circuit port (5) Elbow tube
8) Placement of the nasal cannula for the patient without tracheal cannula: place the nasal or oral-nasal with O
2
cannula onto the patient's face, connect the O
2
therapy tube to the O
2
supply system and set the O
2
flow as
directed.
9) Connect an exhaust pipe to the vent on the sensor so as to exhaust waste gases into the waste gas treatment
system.
15.5.2.2 Preparations for Respironics Sidestream CO
2
Module (other than plug-in module)
1) Connect the Respironics CO
2
module and the monitor with Sensor cable.
2) Wait for 2min until the sensor reaches its working temperature and a stable thermal state.
3) Insert the sampling line into the interface of the CO
2
sensor securely until you hear a "click" sound, shown in
the figure below.

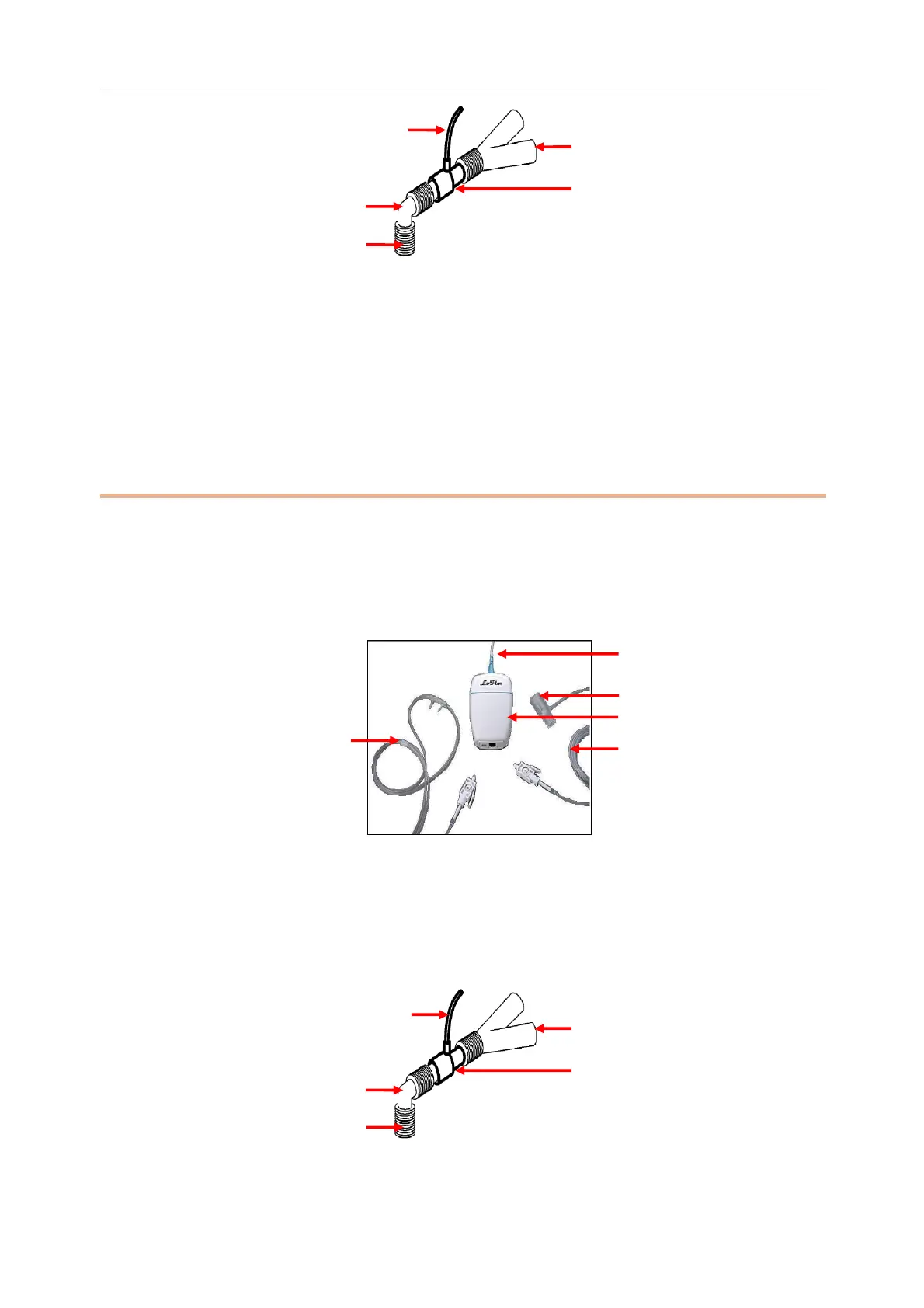

(1) Sensor cable (2) Airway adapter (3) CO
2
sensor (4) Sampling lines of different types
4) Zero the sensor; please refer to " Section 15.6 Zeroing the CO
2
Sensor " for more information.
5) Set CO
2
measurement; please refer to " Section 15.7 CO
2
Setup " for more information.
6) For the patient with tracheal cannula: install the airway adapter of sampling line onto one end of the respiration
circuit, such as between the elbow tube and the Y-shaped tube, shown in the figure below:
(1) Sampling line (2) Y-shaped tube (3) Airway adapter (4) Respiration circuit port (5) Elbow tube
7) Placement of the nasal cannula for the patient without tracheal cannula: place the nasal cannula onto the
(1)
(5)
(4)
(2)
(3)
(1)
(5)
(4)
(2)
(3)
(1)
(3)
(4)
(4)
(2)
