TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 689
System board and components

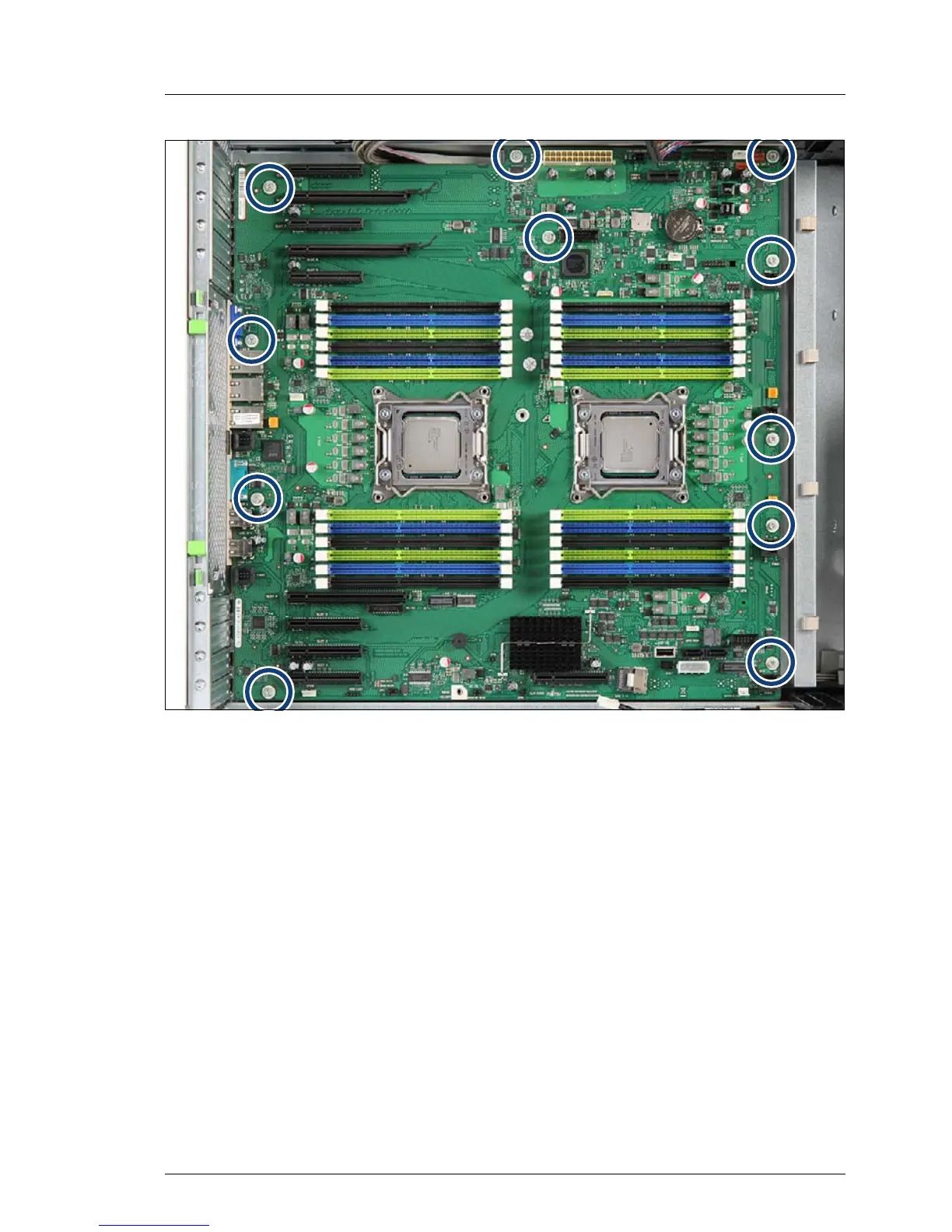

Figure 534: Detaching the system board (B)
Ê Remove eleven screws from the system board (see circles).
